Basic Info.

Model NO. XZ200 Engine Cummins Application 1 Telecom Fiber Laying Application 2 Sewage Pipe Laying Application 3 Oil Pipe Laying Working Type Trenchless Warranty 1 Year Local Service Some Country Available Shipping Way 1 45ton Below by Container Shipping Way 2 68ton Above by Rollroll Transport Package Bulk Specification Horizontal Trademark YICHAO Origin China HS Code 8430691900 Production Capacity 100/Month

Product Description

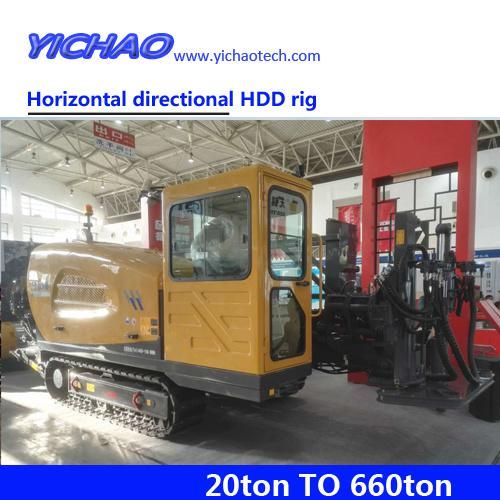

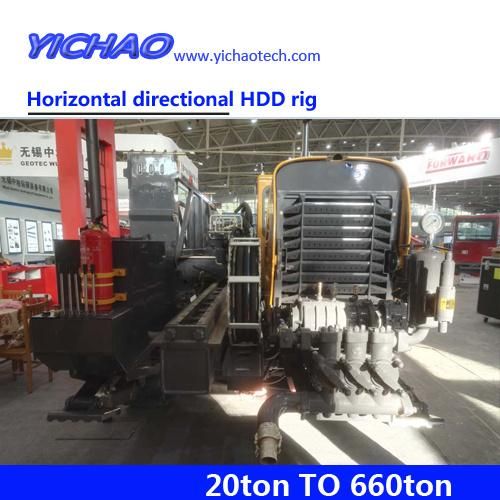

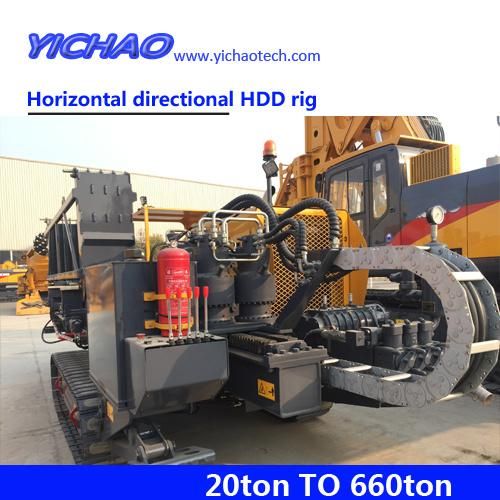

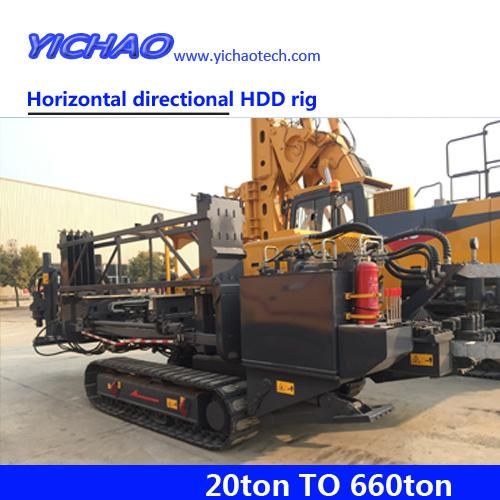

Trenchless Horizontal Directional Drilling HDD Rig for sale/dealer/manufacturer(XZ200/XZ320D/XZ320E/XZ400/XZ450PLUS/XZ680A/XZ1000A/XZ2860/XZ3000/XZ6600)

Model	Max torque(N.m)	Engine power(kw)	Max back pull force(kN)	Pipe size(mm*m)
XZ200	6350	119	200	60*3
XZ320D/XZ320E	12000	153	320	73*3
XZ360E	13200	154	370	73/83*3
XZ400	14000	179	400	73/83*3
XZ450	20000	194	480	89*4.5
XZ450 PLUS	20000	154	970	89*4.5
XZ680A	31000	239	725	102*6
XZ680	27000	250	680	102*6
XZ1000A	35000/43000	264	1000	114/127*6
XZ1600	75000	242x2	1650	127*6
XZ2000	75000	242x2	2200	127*6
XZ2860	90000	264	2860	127/140/168*9.6
XZ2860 PLUS	110000	264	3600	127/140/168*9.6
XZ3000	110000	298X2	3000	140*9.6
XZ5000	160000	394X2	5000	168*9.6
XZ6600	160000	565X2	6600	194*9.6

XZ200
Reamer size 200-300mm ,normal land,1 gun can be 150meter,very easy.
Reamer size 400MM,normal land,1 gun 150meter,need good skill.
Reamer reach to 600MM,1 gun can only reach 90 meter.

XZ320D
Reamer 200-300mm,normal land,1 gun can be 400meter.
Reamer 400-500mm,normal land,1 gun can be 250meter.
Reamer 600mm, normal land,1 gun can be 120 meter.
Reamer 600mm above,need good skill to work.

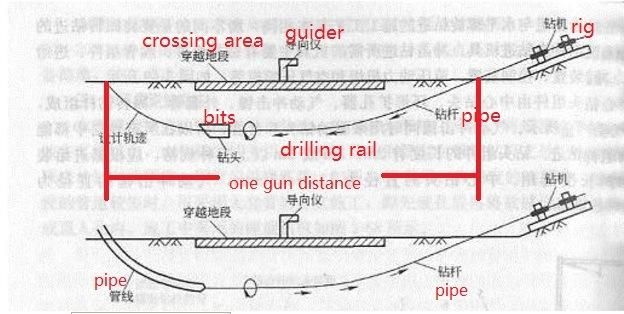

One-gun-distance means the distance of drill bit go from one side and come out from the other size.Please see below explanation.
