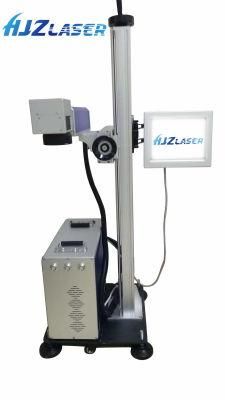

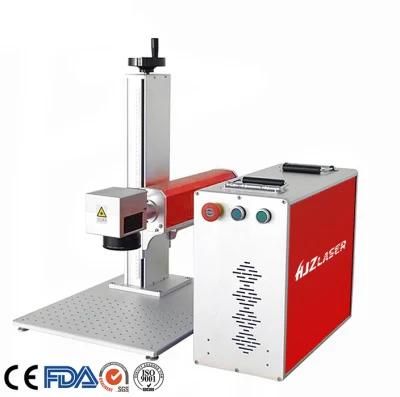

20W Mini Fiber Laser Marking Machine/Compact Size Fiber Laser Marker

Emoer Industry Limited
  • Warranty：3 Years
  • Laser Visibility：Visible
  • Applicable Material：Nonmetal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser

Base Info

  • Model NO.：HJZ-DB-01
  • Laser Classification：Fiber Laser
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Terms：Technical Parameters
  • Process Material：Metal and Some Non-Metal
  • Certification：CE.FDA, SGS
  • Package：Standard Crate for Export
  • Working Power：220V,50Hz,1.5kVA
  • Engraving Speed：9000mm,S
  • Delivery Time：1-3 Days

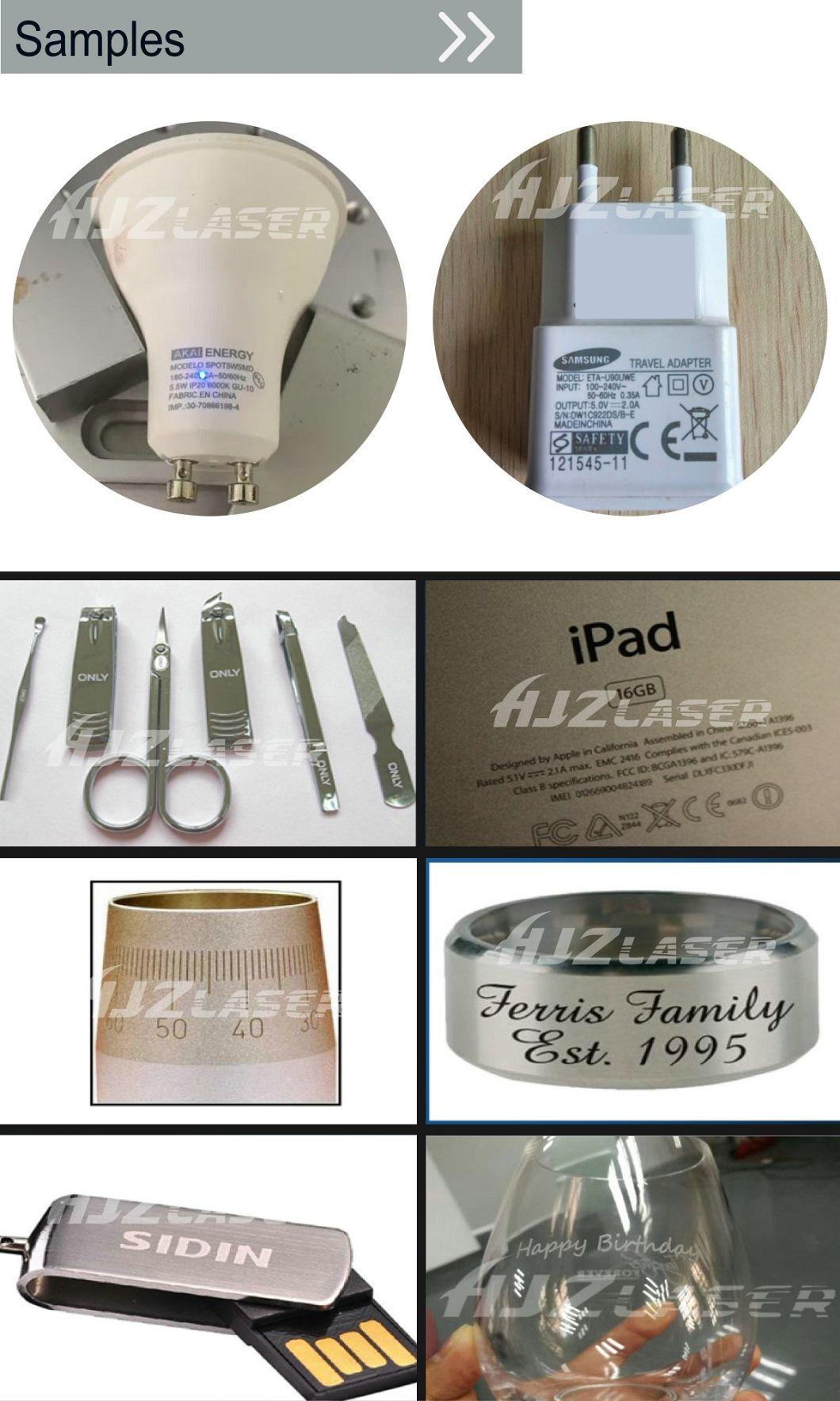

  • Marking Varieties：Characters, Graphs, Images, Trademarks
  • Lifespan：Over 100, 000 Hours
  • Cooling：Air Cooling
  • Marking Size：110*110mm, 175*175mm, 220*220mm, 300*300mm
  • Laser Output Power：10 W 20W 30W 50W 100W
  • Operating Voltage：110-240V
  • Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Dxp
  • Transport Package：Standard Plywood Packing for Export
  • Specification：1650X1250X1050MM
  • Trademark：HZJ
  • Origin：Wuhan, China
  • HS Code：84561000
  • Production Capacity：500,Month

Description

Laser Source                           Raycus , IPG , Max  IPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operationPulsedPolarizationrandomNominal average output power10W - 30W
10W - 50W Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%Pulse Repetition Rate* kHz20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2<1.8Output fiber delivery length3mOperating voltage220VMax. Power consumption600WNet Dimensions70*20*50cm58*22*50cm 80*38*72cm 143*62*101cmNet Weight44 kgs53 kgs 130 kgsGross Weight60 kgs70 kgs 200 kgsLaser systemScanning Speed0-7000mm/sMarking Speed0-5000mm/sMarking size110mm×110mm (F-theta 160)Spot size≤ 40 micron (F-theta 160)Cooling unitAir cooledPilot laser650nm diode laser, visible red light for marking guideContinuous working time≥16hHumidity45~85% (no condensation)Operating temperature0~40ºCControl unitsLaser Mark (English Version)


20W Mini Fiber Laser Marking Machine/Compact Size Fiber Laser Marker




20W Mini Fiber Laser Marking Machine/Compact Size Fiber Laser Marker

20W Mini Fiber Laser Marking Machine/Compact Size Fiber Laser Marker
20W Mini Fiber Laser Marking Machine/Compact Size Fiber Laser Marker




 FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.

Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. Contact us :
