Basic Info.

Model NO. CHSJ-35/40/45E Extrusion Capacity 25-50kg/H L/D Ratio of Screw L/D 30:1 Film Thickness 0.003-0.1 0mm Transport Package Package Specification package Trademark Chengheng Origin China HS Code 8477300000 Production Capacity 80sets/Month

Product Description

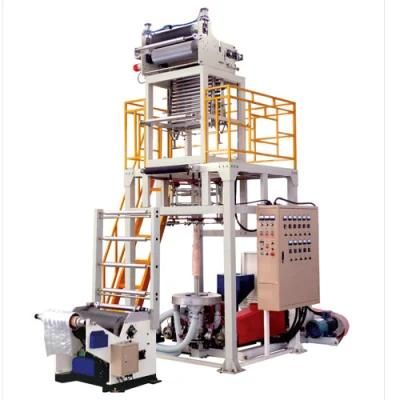

Name:CHSJ-35/40/45E Plastic Film Blowing and Printing Machine Set

Features

Combine film blowing and printing in one machine set with high production efficiency and good economic benefits.

Purpose

This machine set is used to blow Low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic film to produce various food and clothing packaging bags, garbage bags and vest bags for civil and industrial packaging uses.

Main Technical Parameters

Model	CHSJ--35E	CHSJ--40E	CHSJ--45E
Raw material	LDPE,HDPE	LDPE,HDPE	LDPE,HDPE
Diameter of screw	35 mm	40 mm	45 mm
L/D ratio of screw	L/D 30:1	L/D 30:1	L/D 30:1
Main motor power	7.5kw	11kw	15kw
Extrusion capacity	25 kg/h	35 kg/h	50 kg/h
Die diameter	40-80 mm	80-130 mm	100-160 mm
Film width	600 mm	800 mm	1000 mm
Film thickness	0.003-0.1 0mm	0.003-0.10 mm	0.003-0.10 mm
Printing length	250-1000 mm	250-1000 mm	250-1000 mm
