• Model NO.：SOV-CLP series
• Structure：Piston Type
• Material：Steel
• Capacity：50-500ton
• Stroke：48-52mm
• Closed Height：123-190mm
• Cylinder O.D：135-395mm
• Working Pressure：700bar
• Weight：25kg
• Certificate：Ce&ISO
• Warranty：1 Year
• OEM：Yes
• Color：Black, Yellow, or Customize
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO
• Trademark：SOV
• Origin：China
• HS Code：8425421000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SOV-CLP series Structure Piston Type Material Steel Capacity 50-500ton Stroke 48-52mm Closed Height 123-190mm Cylinder O.D 135-395mm Working Pressure 700bar Weight 25kg Certificate Ce&ISO Warranty 1 Year OEM Yes Color Black, Yellow, or Customize Transport Package Standard Export Wooden Case Specification CE, ISO Trademark SOV Origin China HS Code 8425421000 Production Capacity 500PCS/Month

Product Description

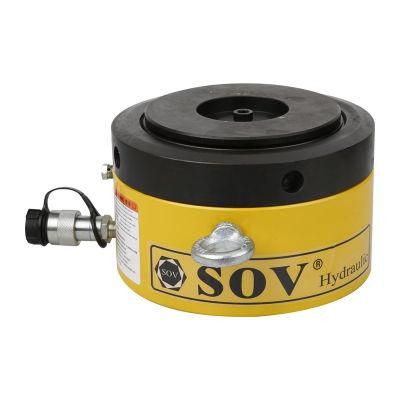

                           Single Acting Pancake Lock Nut Hydraulic Cylinders

SOV general purpose ram are available in hundreds of different mechanical or hydraulic cylinder jack configurations. Whatever the industrial application; lifting, pushing, pulling and available in range of force capacities, stroke lengths or size restrictions. Single acting, hollow plunger, lock nut or low height, you can be sure that SOV has the hydraulic cylinder jack to suit your high force application.

SOV Series Single-Acting Pancake Lock Nut Cylinders are applied in load working which requires long-terms stretching And consistent supporting, high efficiency and mechanical load safety, such as concrete unit casting and supporting of bridge erection, etc.

1.SOV pancake lock nut cylinders have an extremely low height for use in confined areas
2.Lock nut for positive and safe mechanical load holding over a long period of time
3.Single-acting, load return
4.Optional special synthetic coating for improved corrosion resistance and lower friction for smoother operation
5.Overflow port functions as a stroke limiter
6.CR-400 coupler and dust cap included on all models

parameter

Model Number	Cylinder    Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-CLP-602	60 (606)	50	86,6	432	125	175	140	15
SOV-CLP-1002	100 (1027)	50	146,8	734	137	187	175	26
SOV-CLP-1602	160 (1619)	45	231,3	1040	148	193	220	44
SOV-CLP-2002	200 (1999)	45	285,6	1285	155	200	245	57
SOV-CLP-2502	260 (2567)	45	366,8	1650	159	204	275	74
SOV-CLP-4002	400 (3916)	45	559,5	2517	178	223	350	134
SOV-CLP-5002	520 (5114)	45	730,6	3287	192	237	400	189

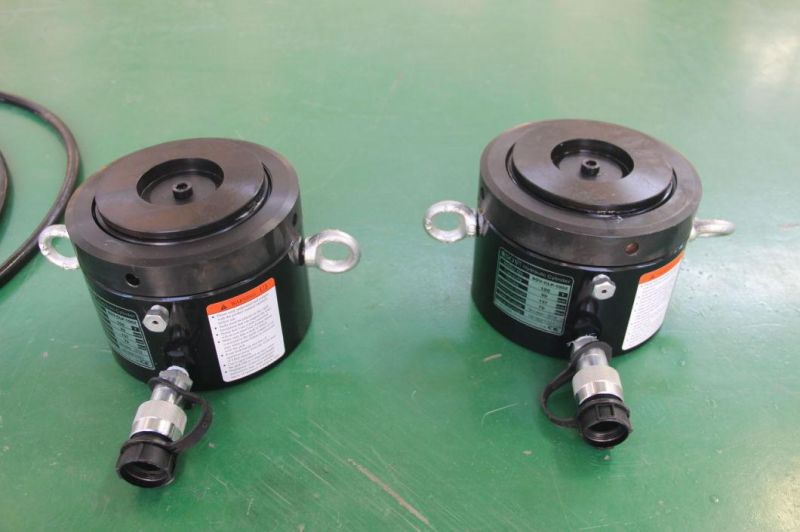

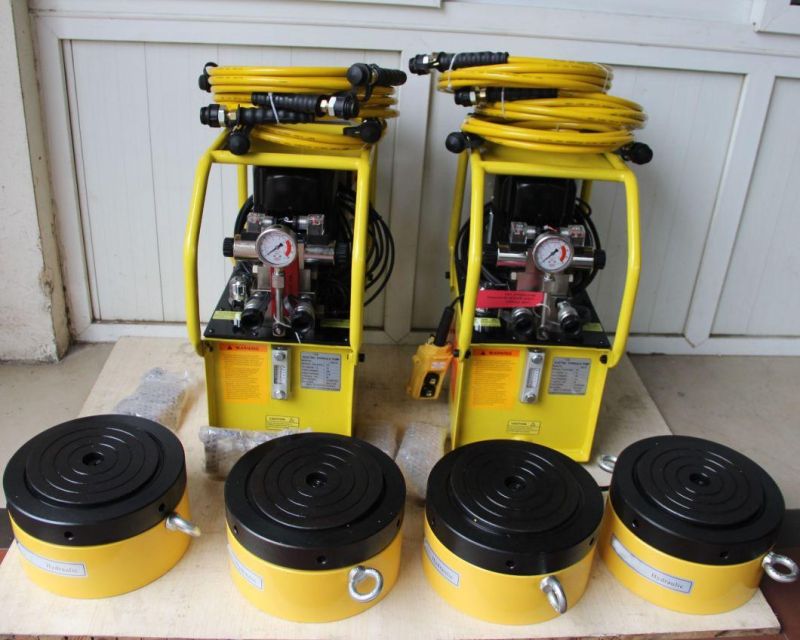

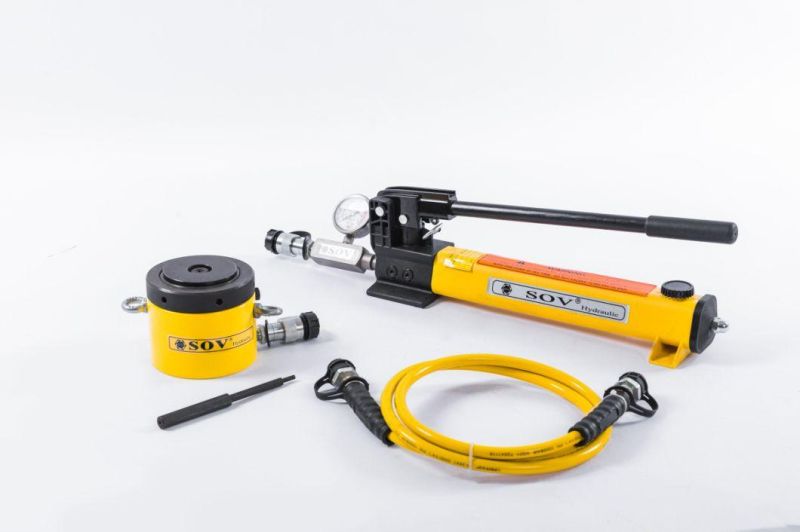

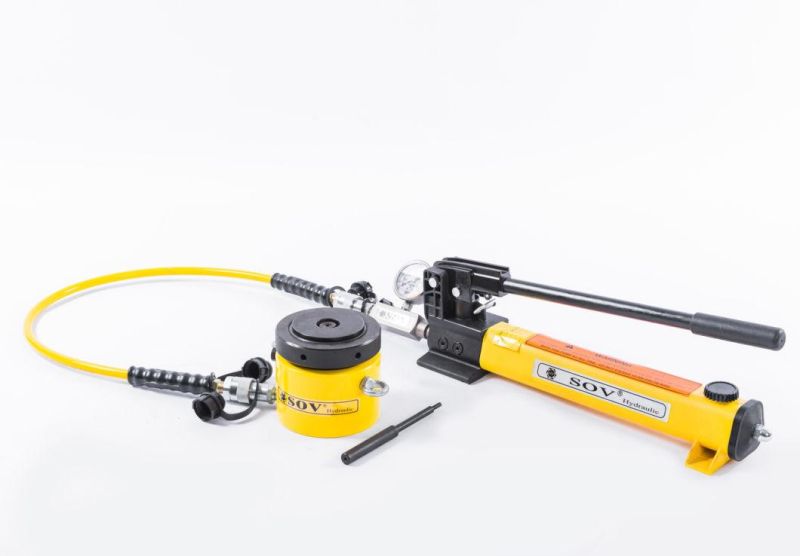

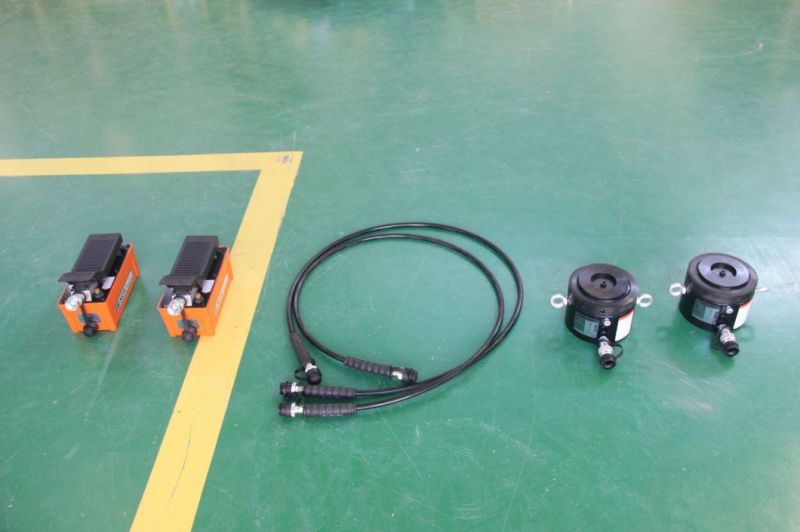

Photos

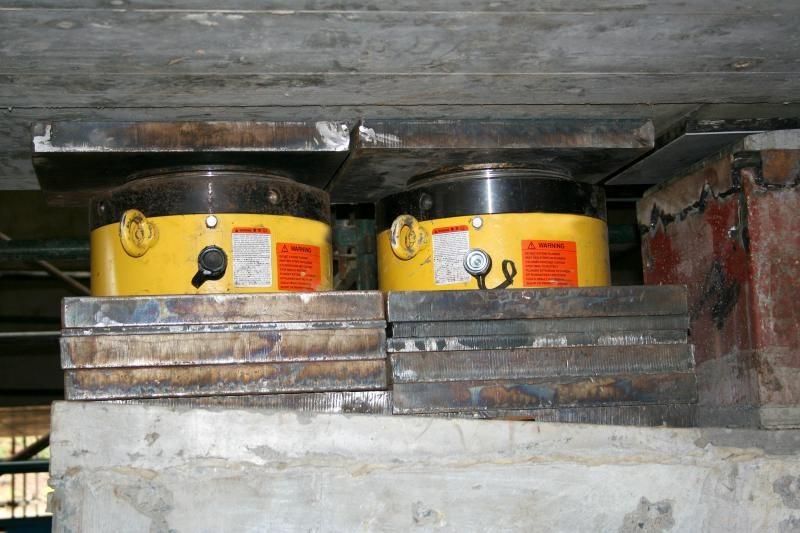

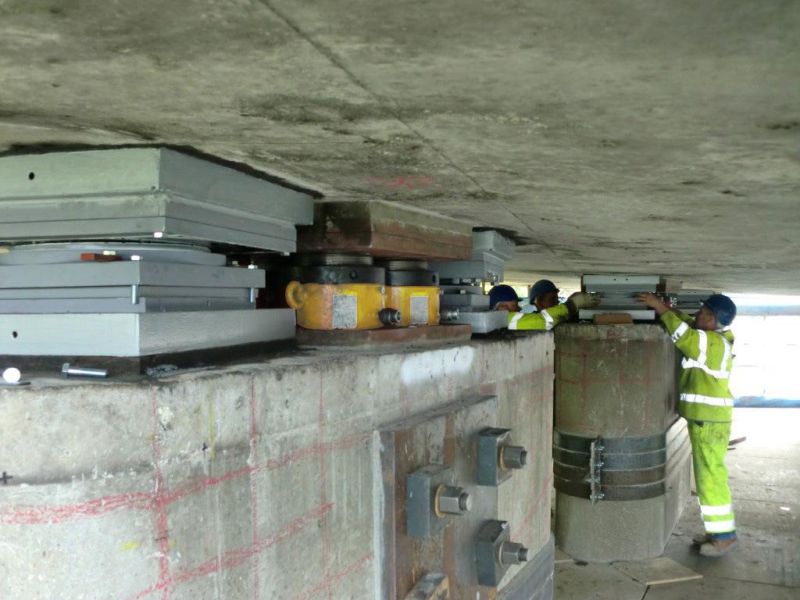

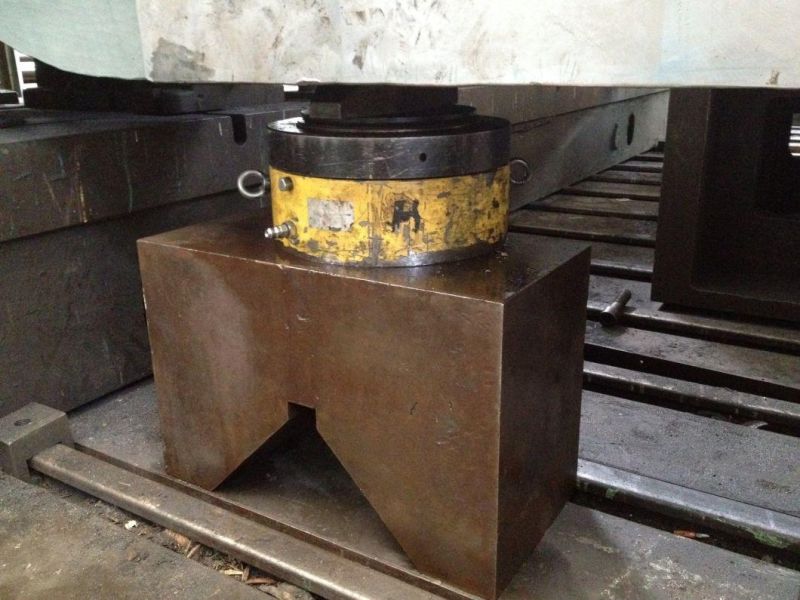

Applications





Packing details
1. Out packing: standard export wooden case
2. Inner packing: with careful stretch film+cardboard

Shipping way
1. Small quantity: by international air express, within 3-7days arriving
2. Large quantity: by ocean cargo, arriving time depends on customers destination

Our service
1. 24hours online technical support (telephone and email)
2. 100% Satisfaction Guarantee
3. Engineers are available


Our company


SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 5- 2000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

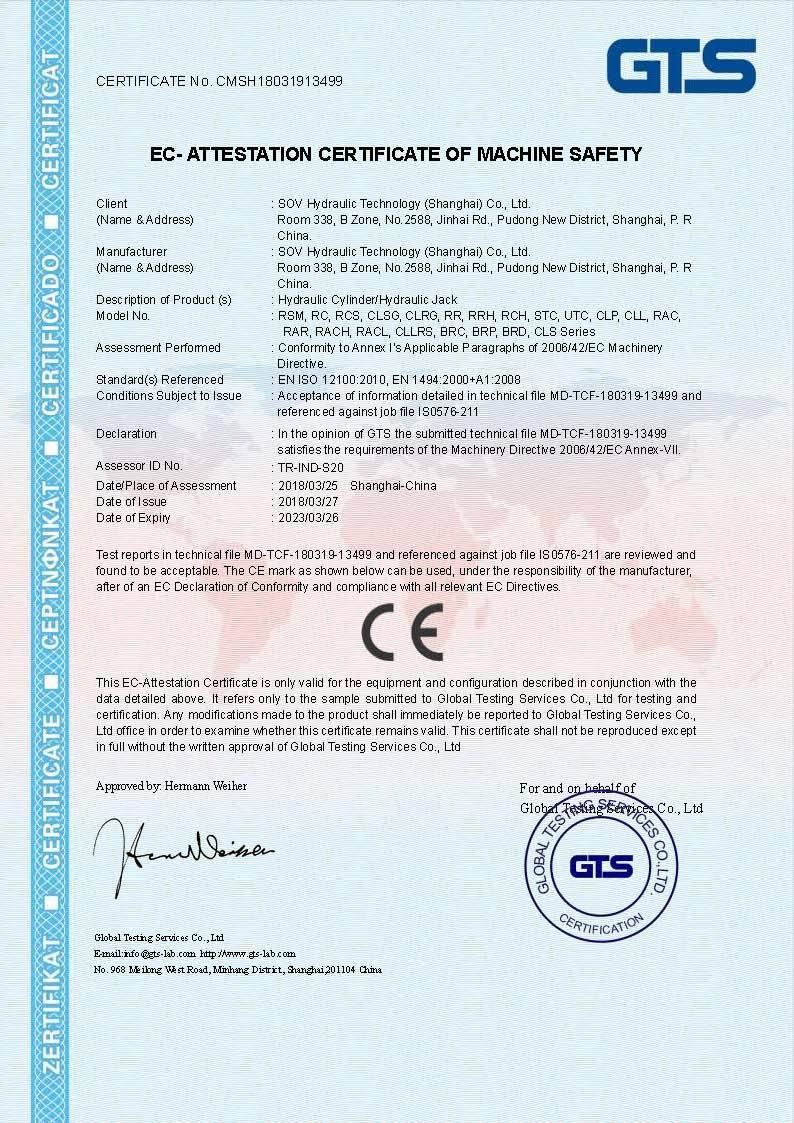

Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Why Choose Us
1. Various style for completely series hydraulic products for you to choose
2. High quality with competitive price
3. Sample order & small quantity order is ok
4. Provide free products information

Why You Need SOV?
1. Because you need quality hydraulic tools at economical prices.
2. SOV hydraulic technology factory are produced in modern facilities using advantage processing technology. All SOV products meet or exceed CE and ISO standards and tolerances.
3. Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.
4. Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
If you have a lifting problem that others can't solve call SOV, the hydraulic tools supplier you need.

Quality Control
Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure.
