• Model NO.：GLC-1490
• Laser Technology：CO2
• Automation：Automatic
• Type for Cutting Machine：Laser Cutting Machine
• Type：Laser Cutting Engraving Machine
• Working Area：1400mm*900mm
• Laser Type：Sealed Glass CO2 Laser Tube
• Transport Package：Packaged by Plywood
• Specification：CE SGS FDA ISO
• Trademark：GLORYSTAR
• Origin：China
• HS Code：8456100090
• Production Capacity：3500 Sets,Year

Basic Info.

Model NO. GLC-1490 Laser Technology CO2 Automation Automatic Type for Cutting Machine Laser Cutting Machine Type Laser Cutting Engraving Machine Working Area 1400mm*900mm Laser Type Sealed Glass CO2 Laser Tube Transport Package Packaged by Plywood Specification CE SGS FDA ISO Trademark GLORYSTAR Origin China HS Code 8456100090 Production Capacity 3500 Sets/Year

Product Description

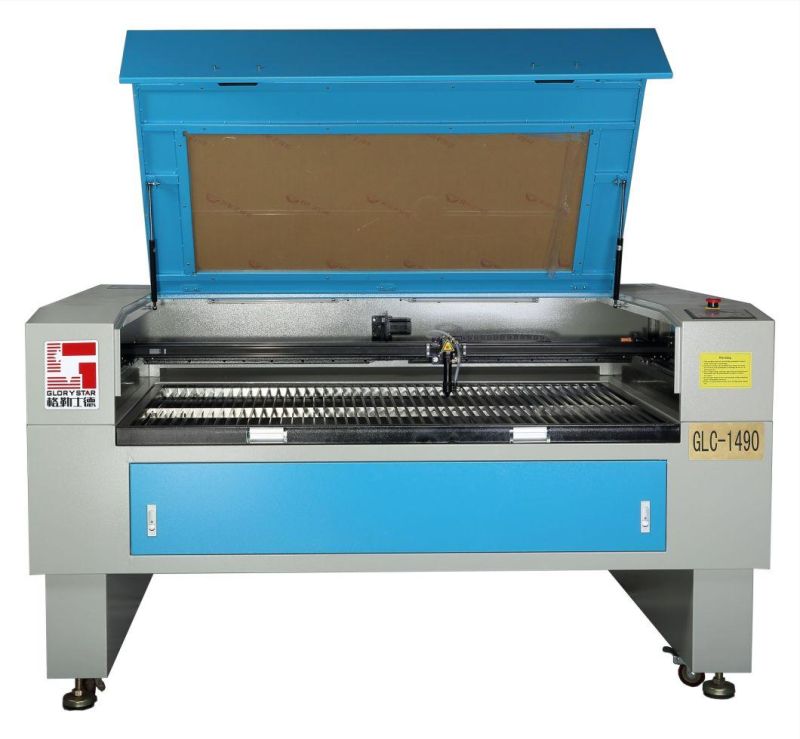

Glorystar high performance CO2 Laser Cutting Machine (GLC-1490)




Product Features

Laser cutting offers operators a highly accurate method of cutting complex shapes from a wide variety of materials. Lasers can be focused to extremely fine points and have enough energy to cut through thick metals with ease. Computer aided design (CAD) and computer numerical control (CNC) technology allows complex designs to be made by automated CO2 laser cutting machines quickly and with great accuracy. The list of materials suited to laser cutting is diverse and includes ceramics, plastics, metals, wood, and rubber.

CO2 Laser cutting engraving machines series are very popular in the market around the world. They have high speed, high cutting accuracy and high stability. The quality and price ratio is very high.
This series laser cutting machines imported originally division stepping motor and driver from USA. Original straight-line-guiding-track from Japan. High speed USB 2.0port, LCD and silicon panel, water-cooling system, domestic-made glass CO2 laser tube, sealed laser beam by use of the imported Lens and mirrors, ensure high cutting speed and long life time of laser tube.

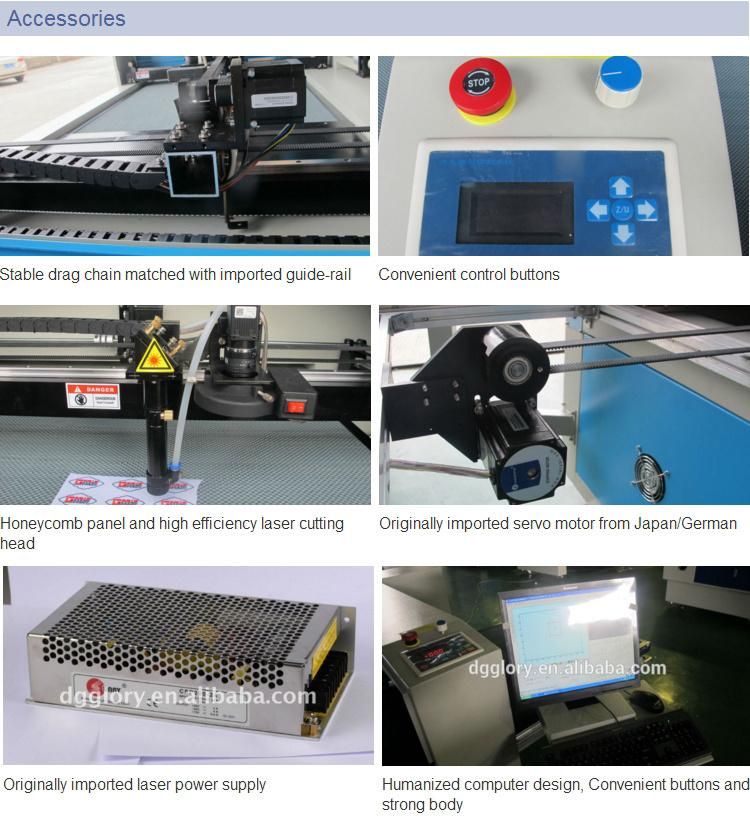

Accessories



Applications

Engraving&cutting of farbric and leather in garment, embroidery, toy, handbag, glove precisioncuting of decoration board and non-metal board, like Acrilic and medium-density board in ads, upholstery, electrical appliance and plastic industry, Cardboard box industry, rubber pritting plate engraving. Ultra-thick material surface carving.

Applicable Materials

Wood, paper, leather, cloth, organicglass, resin, acrylic, wollens, plastic, rubber, ceramic tile, crystal, bowlder, bamboo and other non-metal materials.

Samples

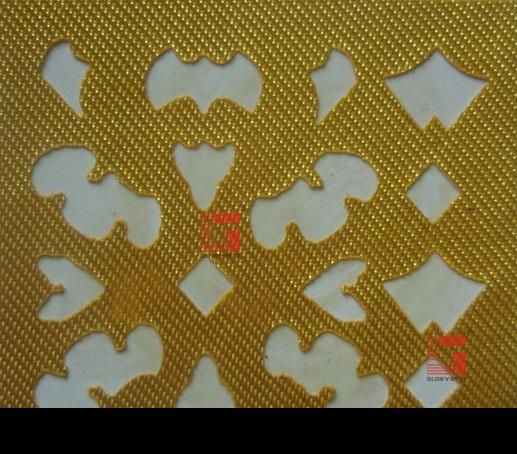

Fabric Cutting

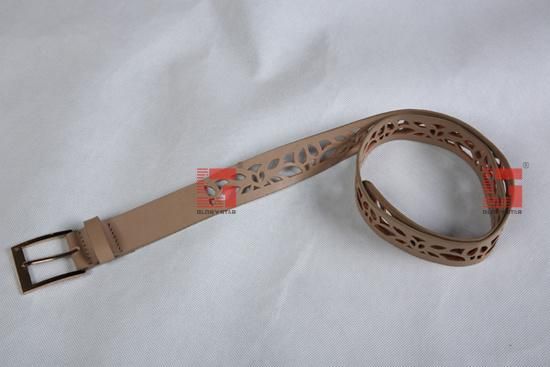

Leather Cutting Sample

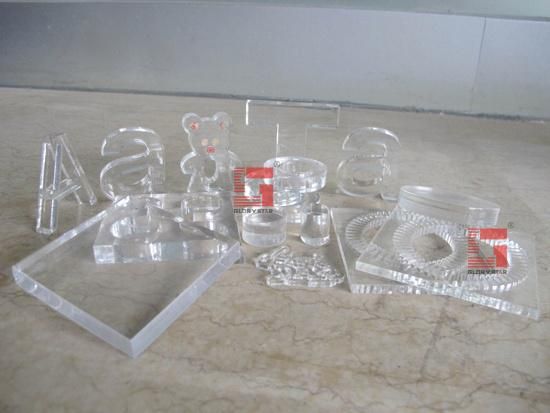

Acrylic Cutting Samples

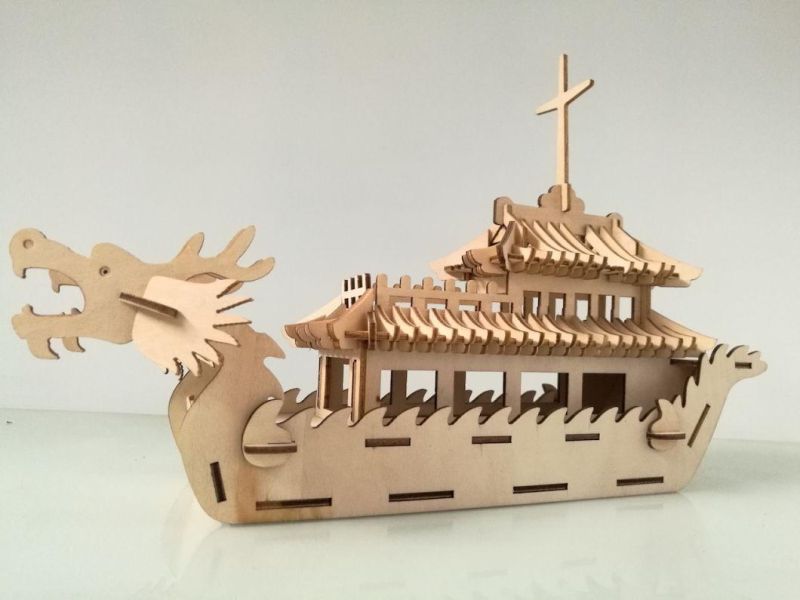

5mm thickness wood carft sample


Techinical Data


Model	GLC-1490
Laser Type	Sealed CO2 laser tube
Laser Power	60W/70W/80W/100W/130W/150W
Engraving Area	1400x900mm
Engraving Speed	0-64m/min
Cutting Spees	0-36m/min
Repeating Accuracy	± 0.05mm
Moving System	DSP control system
Cooling Mode	Water-cooling and protection system
Whole Power	≤ 1250w
Working Voltage	220V± 10% 50Hz(60Hz)
Operating Temperature	0~45º C
Prerating Humidity	5%-95%
Controlling Sofeware	Glory star laser software
Graphic Format Supported	CAD BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT
Gross Weight	540KG
