HMWHDPE, PE, PP...Max container capacityL230Output(dry cycle)PC/hr180Machine dimension(L×W×H)M9.5×4.1×6.5Machine weightT36Clamping Unit    Clamping forceKn800Mold platen size(W×H)mm1200×1300Platen opening strokemm800-1700Platen moving strokemm900Max mold size(W×H)mm950×1600Mold thicknessmm900-960Power    Servo oil pump motor powerKW35Servo pump displacementL/MIN200Blow pressureMPa1Air consumptionM3/MIN3Cooling water pressureMPa0.5Water consumptionL/min60Average energy consumptionKW120-140Extruder unit    Screw diametermm12090×2Screw L/D ratioL/D3230HDPE Melting capacit for HDPEKg/hr320160×2Number of heating zoneZone65Screw heating powerKw3926Screw fan powerKW0.60.6Extruder motor powerKw110(132)55×2Die head    Number of heating zone for single die headZone6Heating power for single die headKw38Max die-pin diametermm500Accumulator capacityL20(HDPE) Accumulator weight(HDPE)KG15
Delivery Time:
- No later than 65 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

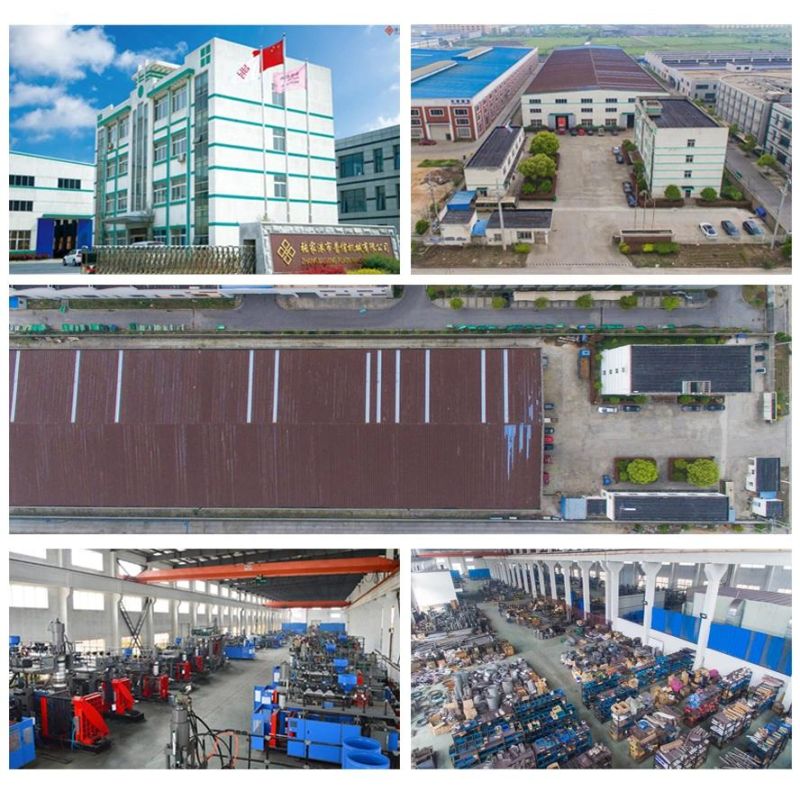

OUR FACTORY:
