Basic Info.

Model NO. PE-110/600 PE-655/1372 PE-960-1680 Customized Customized Condition New After-sales Service All Life Application Heating System, Oil & Gas Pipeline Voltage 380V 50Hz Pipe Diameter 25-355mm Transport Package Standard Package Specification 28m, 32m, 45m Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 30 Unit/Year

Product Description

pert HDPE plastic shell PUF Pre-Insulated Pipe Extrusion Line

(MODELS: PE-110/600, PE-655/1372, PE-960-1680)

The line is an integration design composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and  long service life etc. Especially compared with  internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.


Vacuum calibrating method pre-insulated pipe outside casing extrusion line is the most advanced and popular machinery in the world.

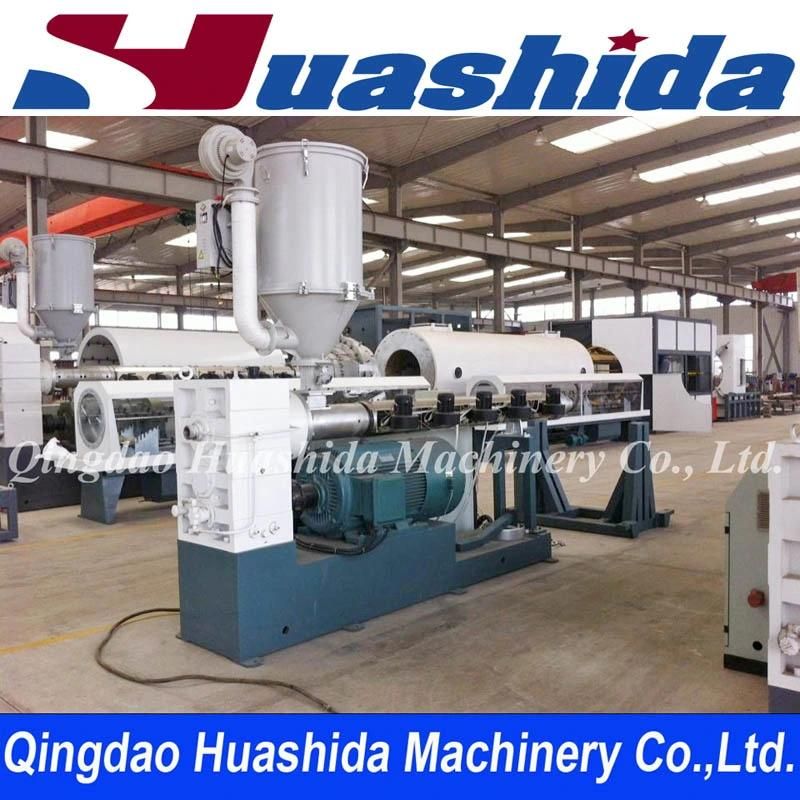

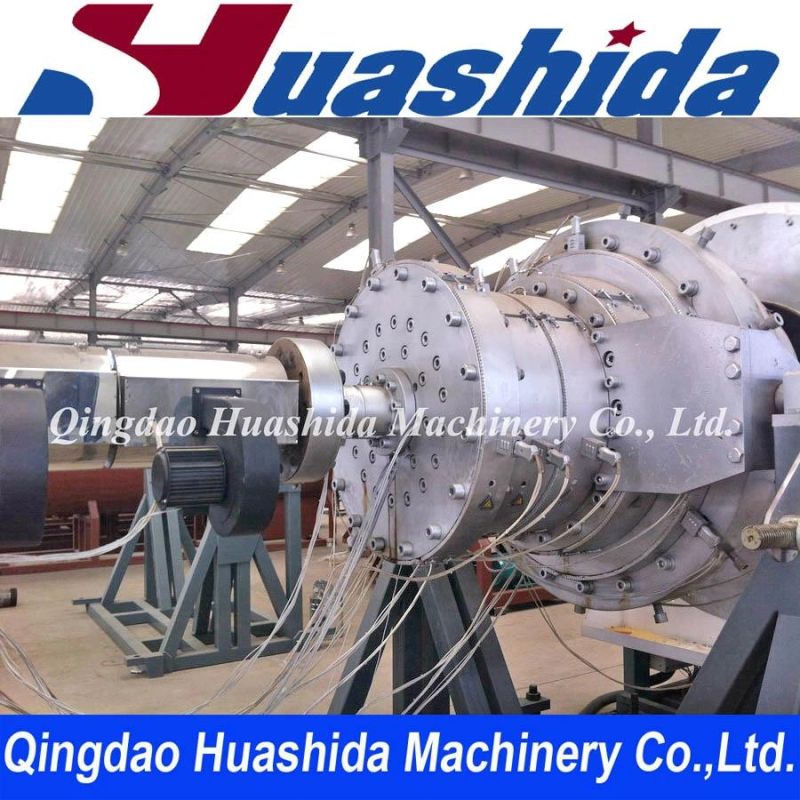

This pipe extrusion line mainly includes single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank, haul-off machine, cutting machine and bracket.




PE Pipes produced by this line has excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.


Style	PE-110-600		PE-655/1372	PE-960/1680
Main extruder	SJ-75/33		SJ-120/33	SJ-150/33
Pipe diameter	Φ110-600mm		Φ 655-Φ 1372 mm	Φ 960-Φ 1680mm
Capacity	250-350kg/h		700~900 kg/h	800-1200kg/h
Installed power	160kw		440 kw	580kw
Length	28m		32 m	45m

If you need more information about this machine.  just call us 0086-532-80999083, we can give you consulting service for this machine
