Fangtai High Speed Film Blowing Machine Set
Zhengzhou Research Institute for Abrasives & GrindingBase Info
Description
Basic Info.
Model NO. SJ-C75/90/105/120 HS Code 8477309000 Production Capacity 20set/MonthProduct Description

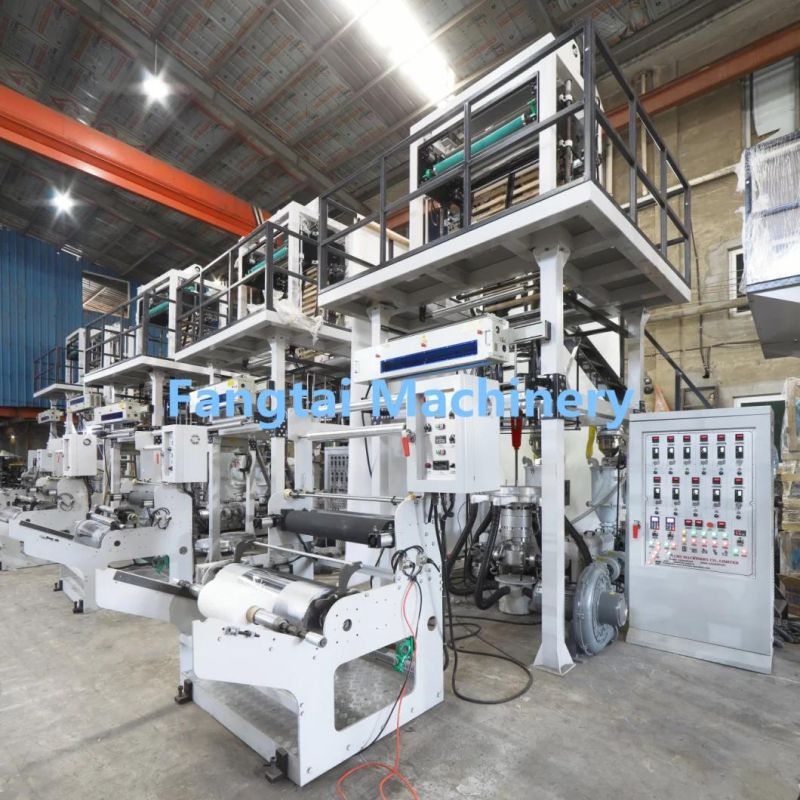

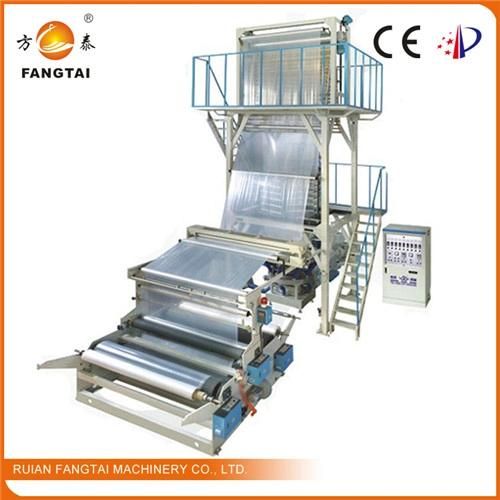

Fangtai High Speed Film Blowing Machine Set
Feature
It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag or film for textile and clothing and other packing material.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.The screw and material barrel adopts 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type.No matter what size the film is,big or small,it can achieve the best effect of cooling.
Optional Equipment
hydraulic net changer
Main Technical Variables
| Model | SJ-C75 | SJ-C90 | SJ-C105 | SJ-C120 |
| Screw Diameter | 75mm | 90mm | 105mm | 120mm |
| Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 | 28:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of Main Motor | 30-37kw | 37-45kw | 54-70kw | 70-90kw |
| Max Output | 120kg/h | 160kg/h | 190kg/h | 220kg/h |
| Max Folding Width of Film | 1500mm | 2000mm | 2500mm | 3000mm |
| Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total Power | 46kw | 60kw | 78kw | 95kw |
| Weight of Machine | 4T | 8T | 10T | 12T |
| Overall Dimensions | 5200*2800*6000mm | 6200*3400*8000mm | 6200*4000*9000mm | 6800*4500*10000mm |
