• Model NO.：PEDB-600
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Power：10W, 20W, 30W, 50W, 100W
• Marking Area：Standard 110*110mm, Optional 175*175mm, 300*300mm
• Automatic：Yes
• Lifetime：8-10 Years
• Consumables：No
• Wavelength：1064nm
• Minimal Character Size：0.25mm
• Minimal Line Width：0.015mm
• Power Supply：110,220V 50,60Hz
• Bitmap Format：BMP, JPG, PNG, TIF, Pcx, Tga, Ico, GIF, Plt
• Transport Package：Professional International Wood Craftcase
• Specification：mini portable size
• Trademark：Perfect Laser
• Origin：Hubei
• HS Code：8456110090
• Production Capacity：50000 Per Year

Laser SourseIPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operation                      PulsedPolarization               randomQ-switched operationOutput power adjustment range10%-100%Nominal average output power W10W / 20W / 30W / 50W / 100WCentral emission wavelength     1060-1070 nmEmission Bandwidth (FWHM)    <10 nmLong-term average power instability<5%Pulse width, (FWHM)                100 nsLaser switching ON time             180 μsecLaser switching OFF time         180 μsecPulse Repetition Rate* kHz           20-80 kHzEnergy per pulse (PRR = 20 kHz)   0.95 mJTypical beam quality, M2               <1.8Output fiber delivery length          3mOperating voltage                     220VMax. Power consumption     600W    Laser marking machine working video:
https://youtu.be/RwJPZpkLKOw
https://youtu.be/-f_IqitZcs0

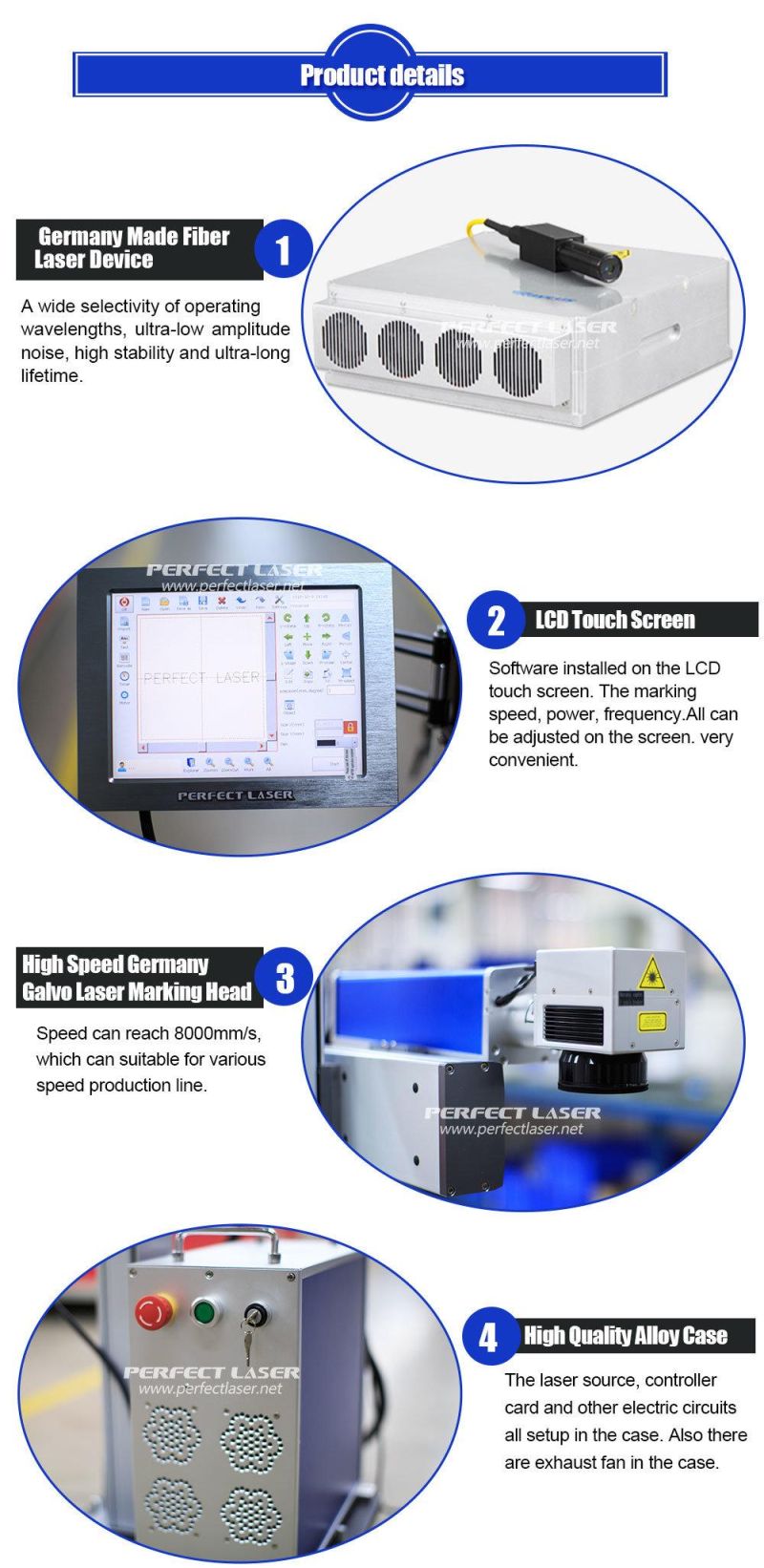

Laser Marking Machine Details:

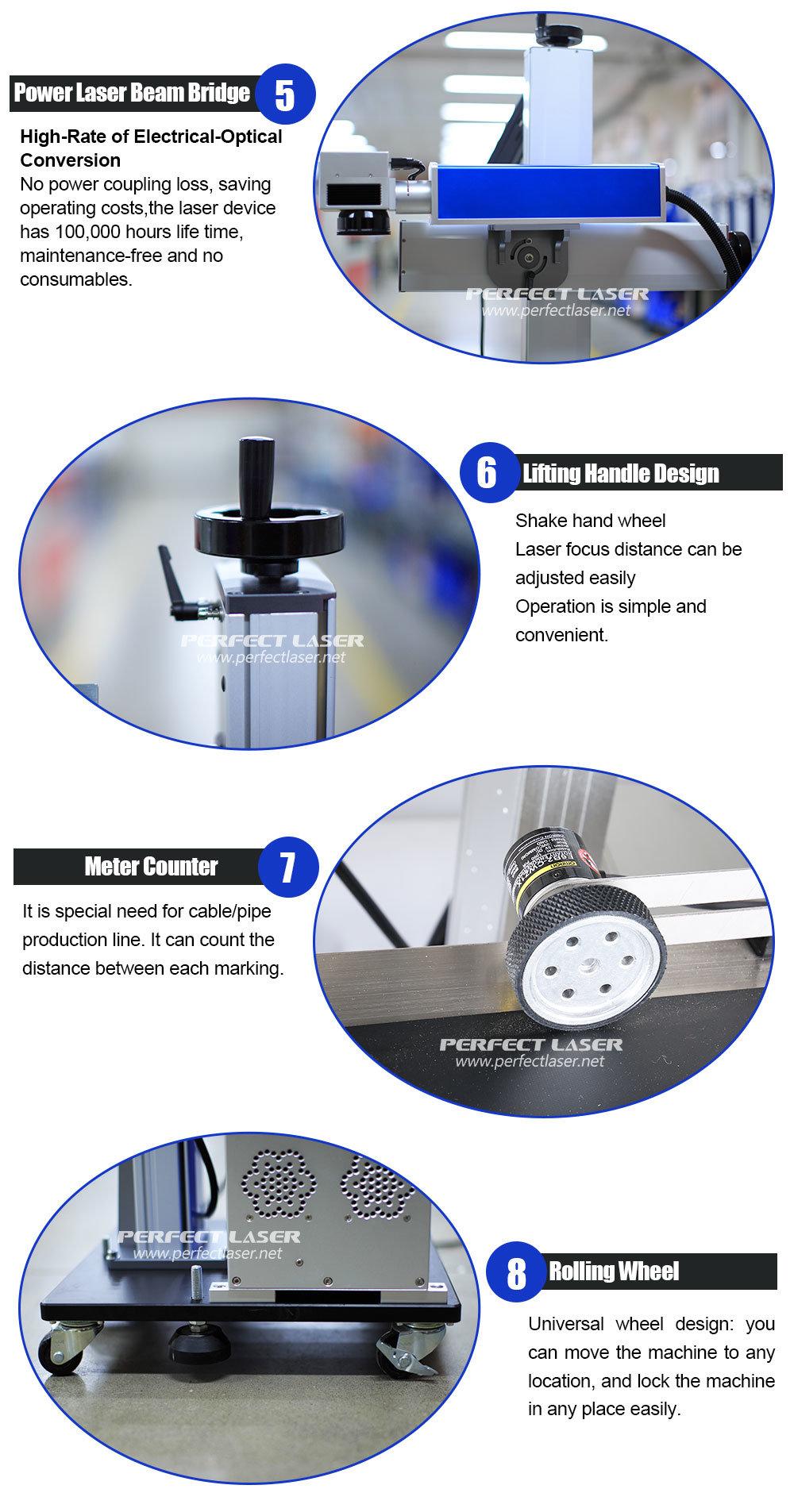

*LCD Touch Screen-operators can set up the whole marking process in it. It does not need a PC.
* Germany technology galvanometer head-high speed 0-10000mm/s
* High-quality aluminum alloy controller case-not easy deformation
* Rolling Wheel-It is flexible for moving.
* Rotating Handle-to adjust the focus distance
* Ruler Scale
* Field Lens&Sensor


Online Flying Stainless Steel Batch Code Fiber Laser Marking Machine After-sales Service:
1)  The machine guarantee is 24 months.
2)  24 hours technical support by email or calling.
3)  Friendly English version manual and operation video CD disc.


Company Information:
Perfect laser Co. Ltd. (China) was founded in 1995, located in the core area of "China Optic Valley" - Wuhan city. Occupied with 3000 m2 ground, including R&D building and production area. It has more than 180 employees, most of them are with a bachelor degree or even a doctorate degree. Executed by reliable quality and reasonable price, our products get favorable sales success and outstanding reputation not domestically in China but also popular in more than 180 countries such as the USA, Italy, Korea, Singapore, Poland, Turkey, Sweden, Saudi Arabia to worldwide.

Welcome to contact us for perfect laser engraving cutting solution
Contact me:
Perfect Laser Co., Ltd. (China)
Contact: Emily / Sales Department
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Hubei, China(430200).
