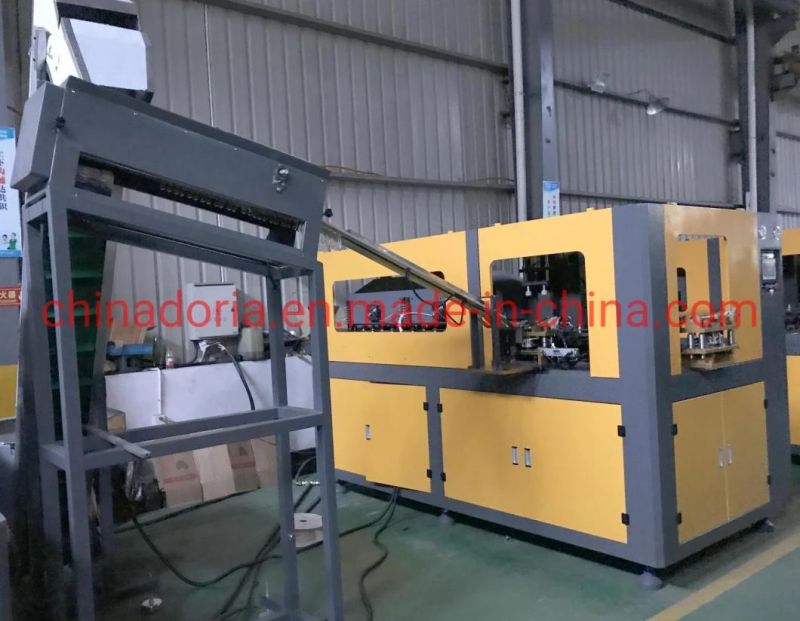

1, Specifications of D-R602(2-cavity):
1.1, Main machine dimension:1900(L)*1700(W)*1700(H)mm;
    Convyeor dimension: 1700(L)*1200(W)*1800(H)mm;
1.2, Theoretical output: 2.5L,1500pcs/hour,   0.5L,2000pcs/hour.
1.3, The main structure is made of #63 channel steel, welded by A3 folding, the surface (blue as basic color) is treated with plastic ejection. the whole structure is delicate and durable.
1.4, Stretch cylinder and pneumatic components adopt SMC brand
1.5, Conveyor system adopts #45 steel, the surface is galvanized.
1.6, Automatic preform-feeding for conveyor, it is easy to operate by only putting a certain quantities of preforms inside the feeding bucket. The movement of feeding,heating,blowing and finished bottle transferring is done automatically.
1.7, Preforms are transferred to the heater through rotating and passing-one-by-one to ensure being heated evenly.

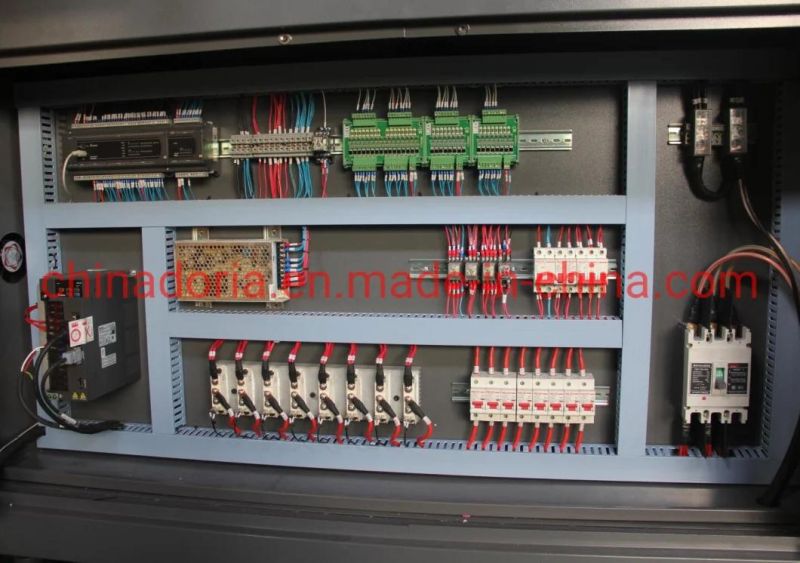

1.8, PLC panel adopts Mitsubish to make the machine stable and reliable.
  3. AUXILIARY EQUIPMENT:
3.1,Air dryer(Model:OMK-1HNF);
3.1.1 dimension:900*600*1100mm;
3.1.2, air flow:1.6N  /min;
3.1.3,working pressure:3.0MPa;
3.1.4,inlet temperature:80ºC;
3.1.5dew point temperature:2-10ºC;
3.1.6,compressor power:0.6KW;
3.1.7,refrigerant:R22;
3.1.8 Dia of connecting pipe: ZG3/4;
NOTE:when the device is in max use,the temp of inlet cooling water temp is 8-12ºC,outlet cooling water temp is 18ºC more or less;

3.2, High pressure air compressor(VH-1.2/3.0).
3.2.1,packing size:1600*850*1000mm;
  Size:1550*800*900mm;
3.2.2,Motor power:15KW;
3.2.3,weight:320KG;
3.2.4,air flow:1.2M3/min;
3.2.5,Max air pressure:3.0MPa;

3.3, Low pressure air compressor(V-1.0/10)
3.3.1,packing size:1500*730*1200mm;
     size:1465*680*1130mm;
3.3.2,Motor power:7.5KW;
3.3.3,weight:357KG;
3.3.4,Air flow:1.0M3/min;
3.3.5,Max air pressure:1.0MPa;

3.4, T/C grade air filter
3.4.1,rated air flow: 2Nm3/min;
3.4.2,Max working pressure: 3.0MPa;
3.4.3, inlet air temp≤50ºC;
3.4.4, filter precision of T filter≤3μm;
     Filter precision of C filter≤1μm;
3.4.5,weight: 2.3KG;

3.5, 5HP water-cooled water chiller:
3.5.1,dimension:910*520*900mm;
3.5.2,compressor capacity:3.15KW;
3.5.3,weight:130KG;
3.5.4,refrigerating capacity:12.4KW;
3.5.5,Pump capacity:0.5HP;
3.5.6,Cold water flow:2.6M3/H;
3.5.7,Voltage:   380V-415V/3P /50HZ;
3.5.8,refrigerator medium: R22

4. SPARE PARTS

NO.	Item	Type	Qty	Remark
1	voltage regulator	2KG-F3	1pcs
2	double way controlled silicon	BTA41	2pcs
3	low pressure solenoid	AIRTAC 4V210-08	1pcs
4	high pressure solenoid	WH2315a	1pcs
5	light tube		6pcs
6	fan	160mm*160mm	1pcs
7	inner hexagonal spanner		1pcs
8	spanner		1pcs
9	foot base		4pcs
10	Manual book		1pcs
11

5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!

6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
