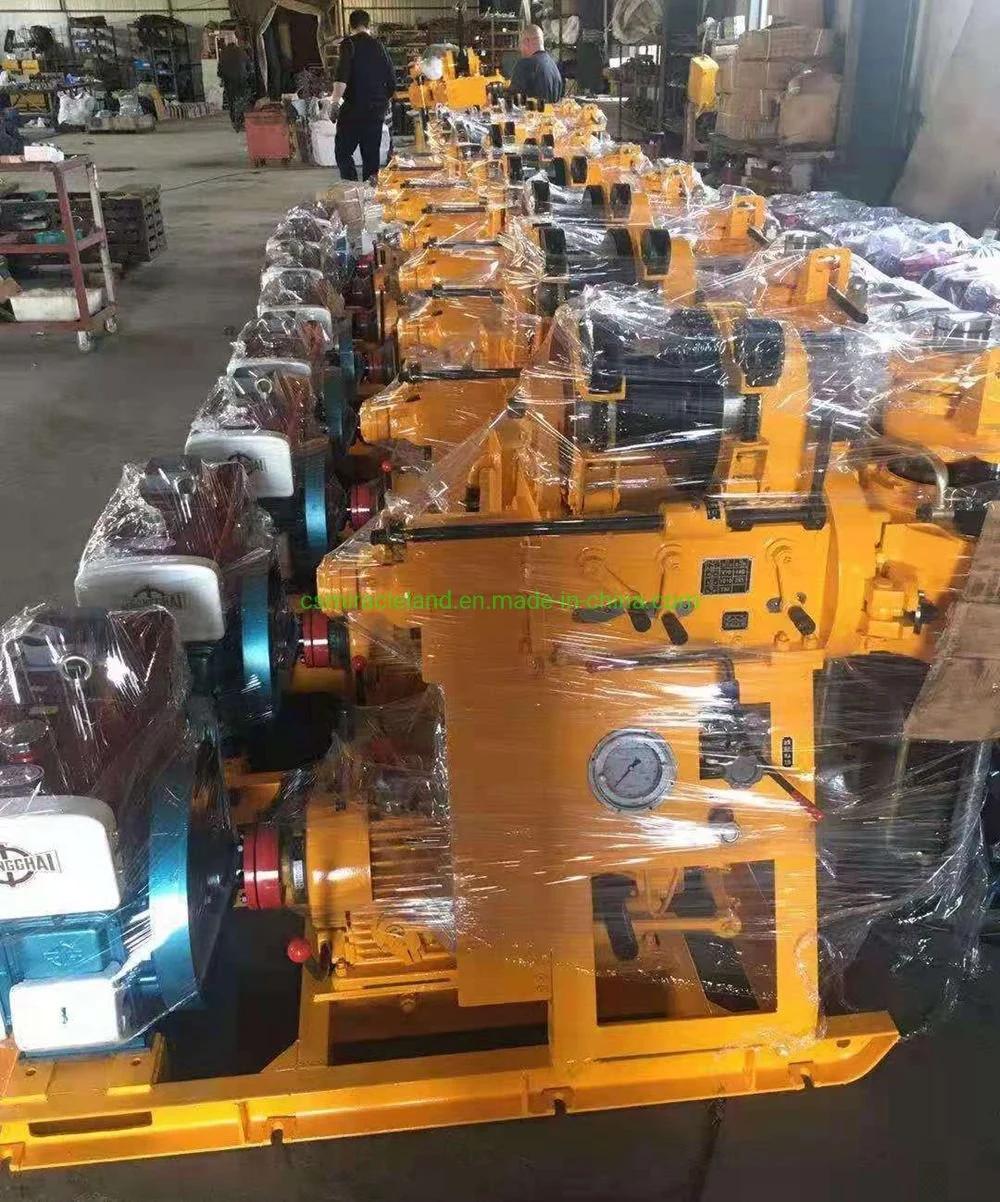

Overview Product Description

Product Parameters

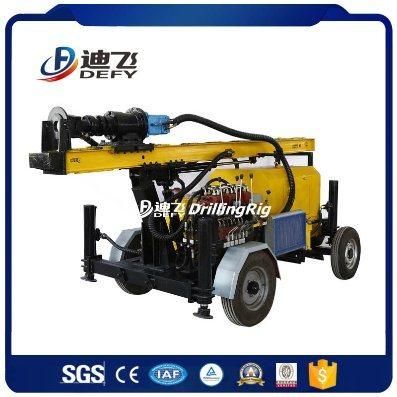

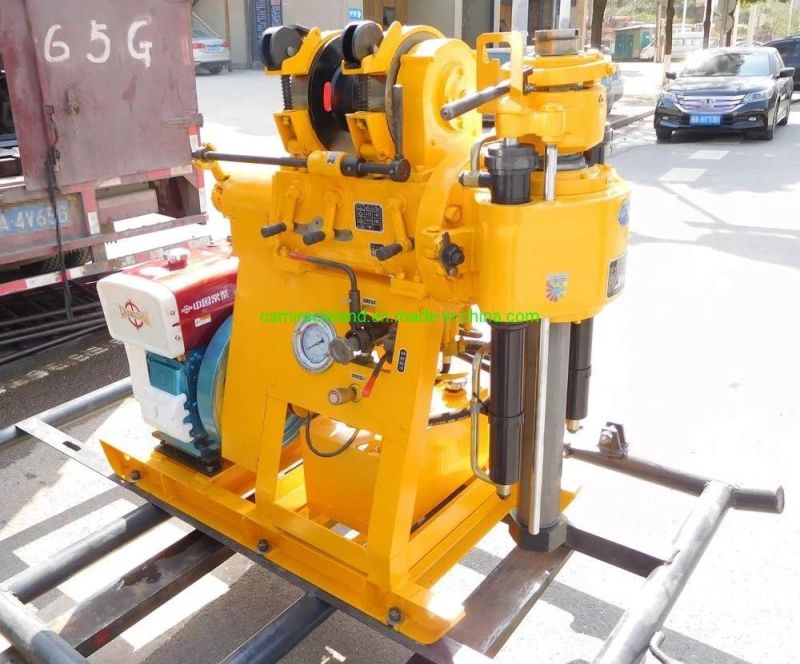

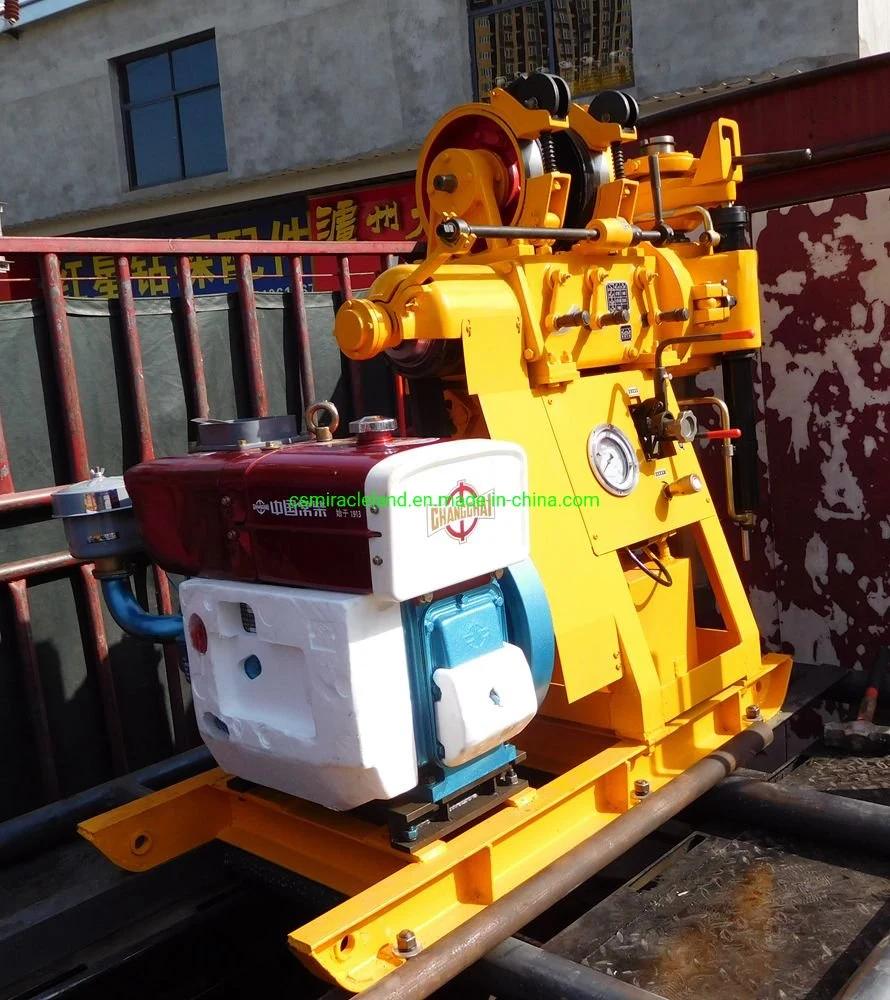

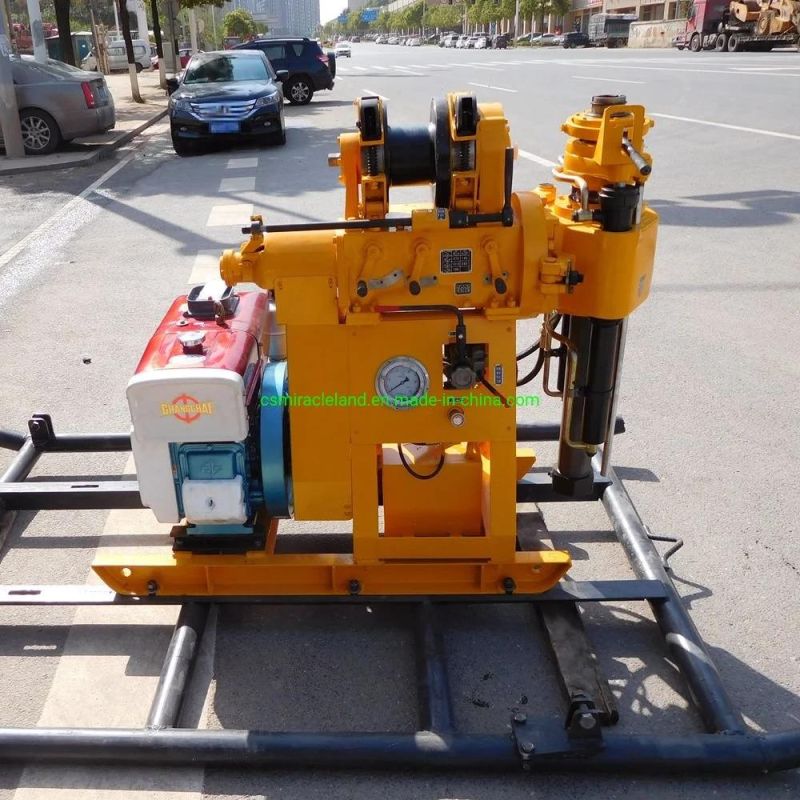

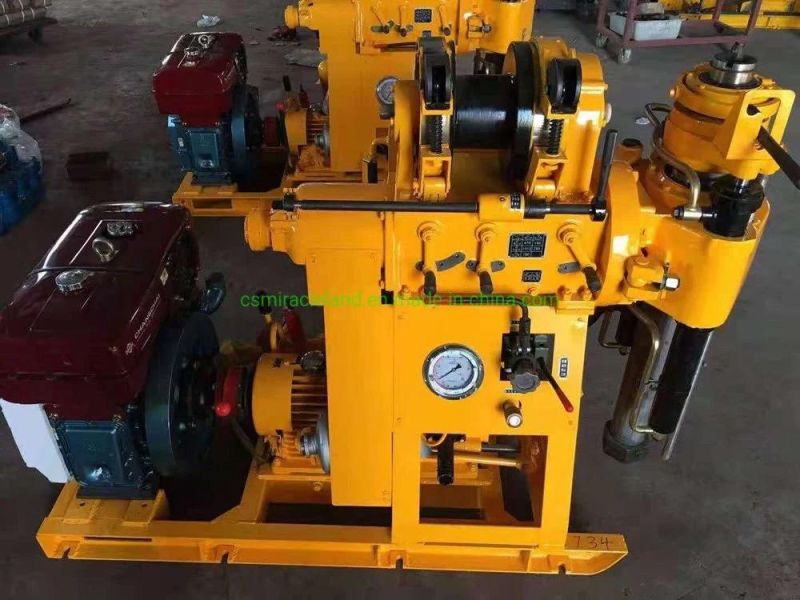

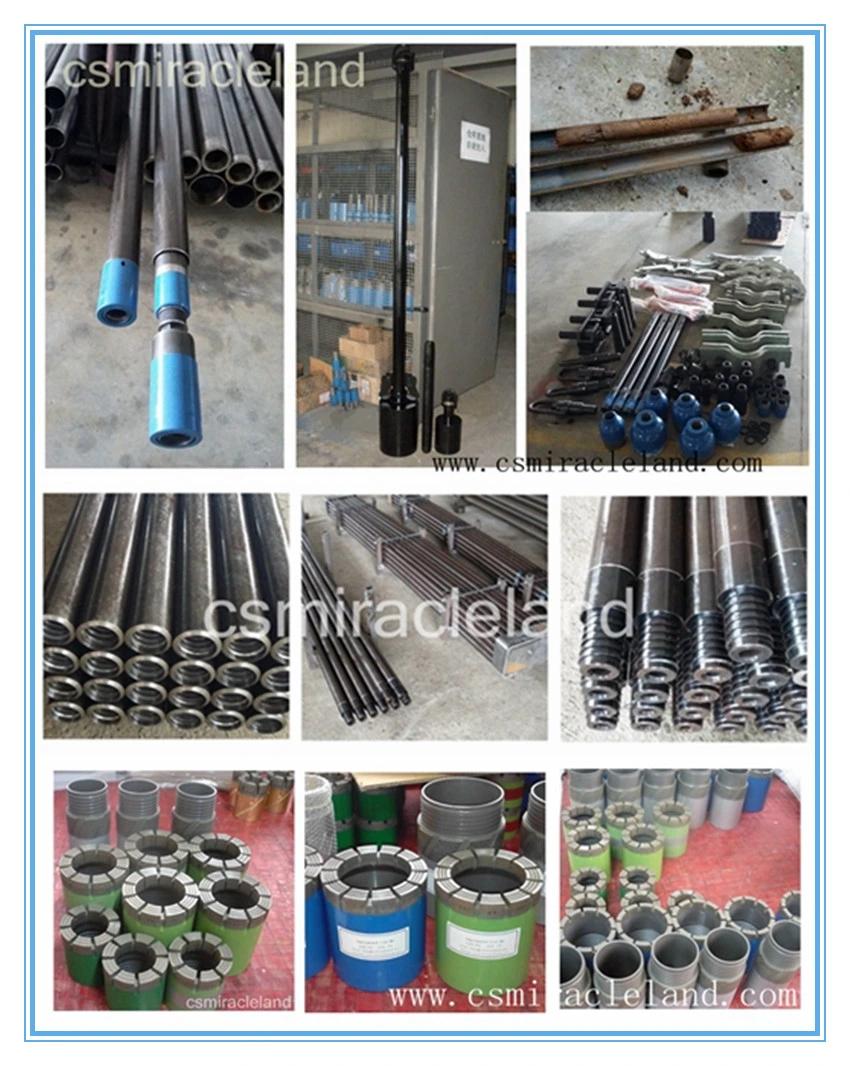

1.Drilling capacity Drilling depth100, 180 m initial hole dia.max.150 mm Final hole dia.75, 46 mm Rod dia.42 mm Drilling angle range90-75° Overall dimensions(L*W*H)         XY-1A-41700X780*1274 mm Weight(exclude power unit)         XY-1A-4620 KgStroke XY-1A(YJ)350mm2.Swivel head Spindle speed 1010,790,470,295,140 r/min Spindle stroke450 mm Spindle speed as lifting up no load max3 m/s Spindle speed as lowering down no load max4 m/s Feeding pressure max.23 KN Lifting capacity(single line)max11 KN3.Hoist Lifting capacity(single line)max15 KN Drum speed121, 76, 36 r.min Drum circumferetial velocity(two layers)1.465, 0.733, 0.331 m/s Drum dia140 mm Cable dia9.3 mm Spool capacity35 m Brake dia252 mm Brake band broad50 mm4.Water pumpModelHorizontal reciprocating single-acting piston pumpDisplacement max.95L/minWorking pressure max.1.2 MpaContinuous working pressure0.7 MpaSuction pipe dia.32mmDischarge pipe dia.25mm5.Oil pump ModelYBC-12/125 Working pressure12.5 MPa Volume of flow8 ml/r Speed800-2500 r/min6.Power unit  Diesel engineS1105  13.2KWRated speed2200 r/min Related Photos
