Big Diamond Granite Segment, Diameter: 3.5m, 4m Saw Blade, Segment for Granite Quarry, Wanlong Brand
Shenyang Rustproof Packaging Material Co., Ltd.- Type：Natural Diamond
- Surface Finishing：Ti-coated
- Blade Material：Diamond
- Application：Granite, Basalt, Sandstone, Marble Ect.
- Use：Saw Blade, Grinding Wheel, Drill Bit Ect.
- Segment Bond：Soft, Medium, Hard
Base Info
- Model NO.：Diamond segment
- Advantage：High Performance
- Sharp：T, R, Fan, Short, Sandwich
- Manufacturing Process：Sintered
- Daimoand Type：Artificial Polvcrystalline Diamond
- Surface Finish：Blasting
- Material：Metal Powder,Metal Powder
- Segment Height：13,15,20,25,30mm
- Transport Package：Cartons, Woodcase and Others
- Specification：250-3500mm
- Trademark：WL
- Origin：Quanzhou
- Production Capacity：300000PCS,Day
Description
Basic Info.
Model NO. Diamond segment Advantage High Performance Sharp T, R, Fan, Short, Sandwich Manufacturing Process Sintered Daimoand Type Artificial Polvcrystalline Diamond Surface Finish Blasting Material Metal Powder,Metal Powder Segment Height 13/15/20/25/30mm Transport Package Cartons, Woodcase and Others Specification 250-3500mm Trademark WL Origin Quanzhou Production Capacity 300000PCS/DayProduct Description

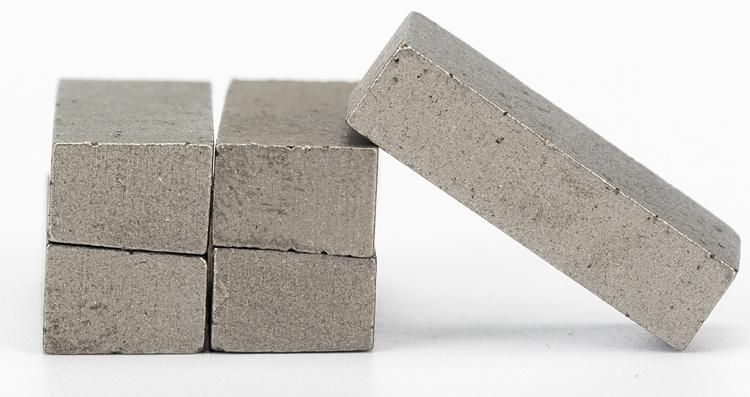

Block Cutting Segment And Blade For Granite
PRODUCT FEATURES:

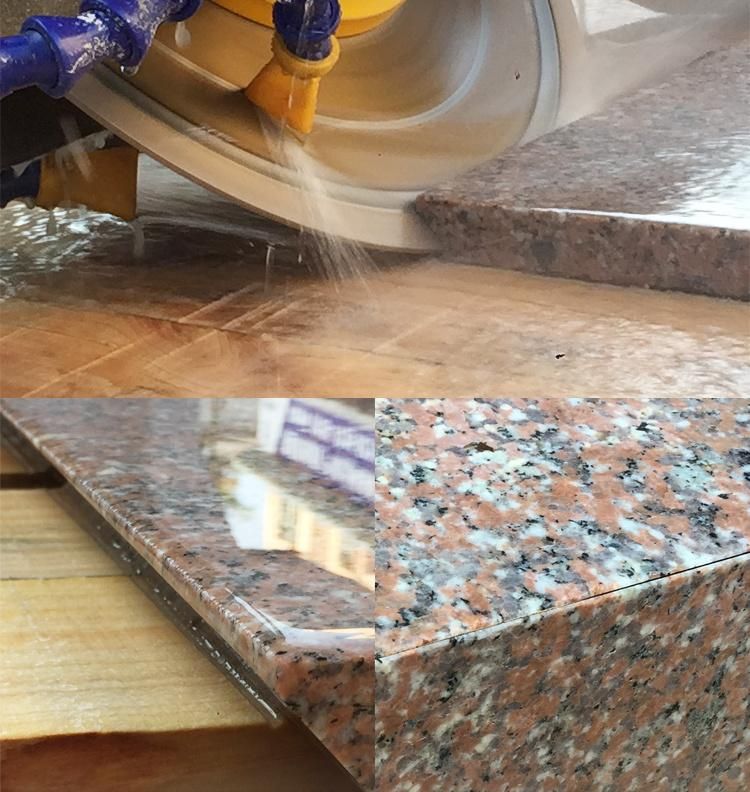

1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan2 Good cutting result:smooth cutting,flat surface and even size

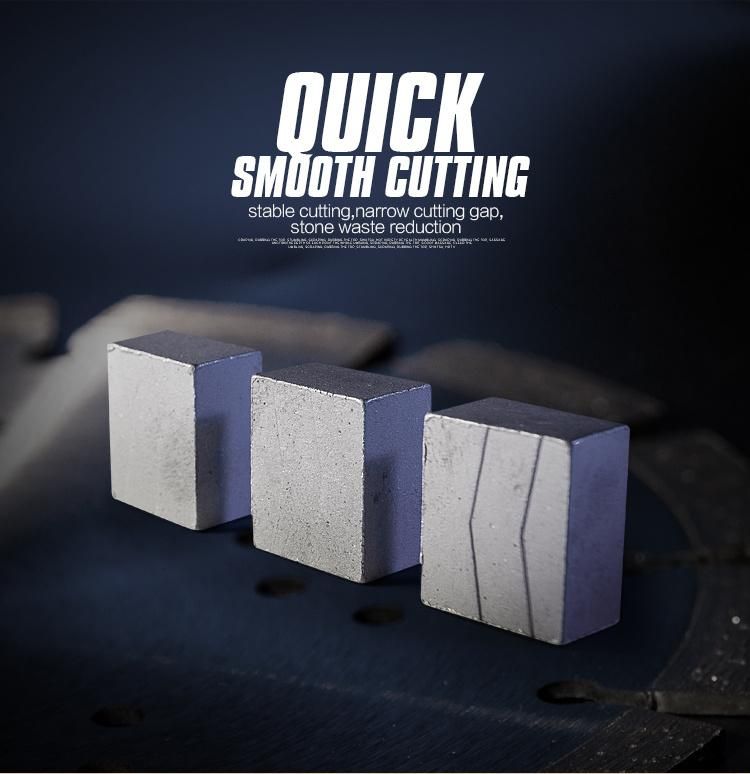

3 Stable cutting,narrow cutting gap,stone waste reduction 4 M-Shape segment is easy for diamond opening
WANLONG Diamond Tools Co., Ltd looks forward to establishing a mutually beneficial relationship with all of you.
| Diameter (mm) | Width (mm) | Height (mm) | Length (mm) | Number of segment (pcs) | Inner hole of core (mm) | Thickness of core (mm) |
| 200 | 3.2 | 10,12,15 | 40 | 14 | 50,60 | 1.8 |
| 250 | 3.2 | 10,12,15 | 40 | 17 | 50,60 | 2.2 |
| 300 | 3.2 | 10,12,15 | 40 | 21 | 50,60 | 2.2 |
| 350 | 3.2 | 10,12,15,20 | 40 | 24 | 50,60 | 2.2 |
| 400 | 3.6 | 10,12,15,20 | 40 | 28 | 50,60 | 2.6 |
| 450 | 4 | 10,12,15,20 | 40 | 32 | 50,60 | 3 |
| 500 | 4 | 10,12,15,20 | 40 | 36 | 50,60 | 3 |
| 550 | 4.6 | 10,12,15,20 | 40 | 40 | 50,60 | 3.6 |
| 600 | 4.6 | 10,12,15,20 | 40 | 42 | 50,60 | 3.6 |
| 700 | 5 | 10,12,15,20 | 40 | 52 | 50,60 | 4 |
| 750 | 5.5 | 10,12,15,20 | 40 | 56 | 50,60 | 4.5 |
| 800 | 5.5 | 10,12,15,20 | 40 | 46 | 50,60 | 4.5 |
| 850 | 5.5 | 10,12,15,20 | 40 | 50 | 50,60 | 4.5 |
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|---|---|---|---|---|
| 900 | 5.0 | 24×7.0/6.2×13(15,20) | 64 | Z3T/Z3T-M (conical) | Granite |
| 1000 | 5.0 | 24×7.0/6.2×13(15,20) | 70 | Z3T/Z3T-M (conical) | Granite |
| 1200 | 5.5 | 24×7.4/6.6×13(15,20) | 80 | Z3TZ3T-M (conical) | Granite |
| 1400 | 6.0 | 24×8.0/7.2×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1400 | 6.5 | 24×8.4/7.6×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1600 | 7.2 | 24×9.2/8.4×13(15,20) | 108 | Z3T/Z3T-M (conical) | Granite |
| 1800 | 7.5 | 24×10/9.2×13(15,20) | 120 | Z3T/Z3T-M (conical) | Granite |
| 2000 | 8.0 | 24×11/10×15(20) | 128 | Z3T/Z3T-M (conical) | Granite |
| 2200 | 9.0 | 24×11/10×15(20) | 132 | Z3T/Z3T-M (conical) | Granite |
| 2500 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 2700 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 3000 | 9.3 | 24×13/12×20(30) | 160 | Z3T/Z3T-M (conical) | Granite |
| 3500 | 9.5 | 24×13.5/12.5×20(30) | 180 | Z3T/Z3T-M (conical) | Granite |
For different blade and stones, customized segment size and numbers will be suggested and Wanlong can supply different specifications and diameters as per customer's requirement.
