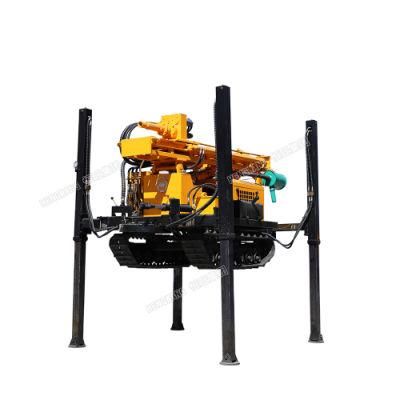

Pneumatic Rock Drill Machine with Air Compressor
Kunshan Hexin Precise Machinery Co., Ltd.Base Info
Description
Model
HQZ-220L
Overall weight (T )
4.2
Dimension (mm )
3800*1700*2350
Drilling diameter (mm )
130-294
Drilling depth (m)
220
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
25°
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.7 - 2.5
Air consumption(m³/min)
15 - 27
Main machine power (kw)
Yunnei 60Kw
Rotary Speed (rpm)
48 - 70
Rotary torque (Nm)
4200-5600
HQZ-220L drilling rig detail information
The drilling rig is multi-functional, with different configurations suitable for different geology.All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis.
Drill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
Our factory is specialized in manufacture drilling rig , we have many models , if you have any questions, pls contact with us ,Contact person : Sally
