Basic Info.

Model NO. HXM730PVC Computerized Computerized Certification CE, ISO9001:2008 Energy Saving Servo Energy Saving After Sales Service Engineers Avaiable to Service Machine Warranty 24 Months Voltage According to Countries Showroom Locate Malaysia,Russia,Turkey,Uzberkistan Condition New Machine Weight 33.2ton Transport Package Standard Packing Specification 9.67x3.05x2.95M Trademark HIGHSUN Origin China HS Code 8477101090 Production Capacity 7000sets/Year

Product Description

HIGHSUN PVC fitting machine, clamping force:218-1100T

1. Adopt the special designed screw & barrel for PVC material, install the air fan for cooling barrel, to avoid the material overheating and coking;
2. Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;
3. Enlarge the width of clamping unit cover sheet, to suit PVC fitting molds (core puller cylinder) installation convenience;
4. Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution contains complete hydraulic system and injection unit.

		HX(*)730PVC

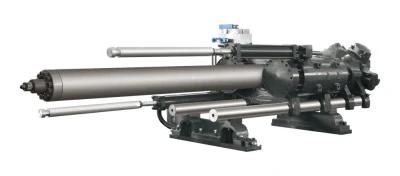

Injection Unit
Screw diameter	mm	90
Screw L/D ratio	L/D	21
Injection capacity in theory	cm³	2799
Injection weight(PVC)	g	3359
Injection pressure	MPa	184
Injection rate	g/s	564
Plasticizing capacity	g/s	90
Screw speed	rpm	125
Clamping Unit
Clamping force	KN	7300
Moving mould-plate stroke	mm	950
Max.Mould height	mm	960
Min.Mould height	mm	400
Space between tie-bars	mm	1000x950
Hydraulic ejector force	KN	200
Hydraulic ejector stroke	mm	280
Ejector number	n	17
Other
Pump pressure	MPa	16
Motor/Driving power	KW	30x2
Heating capacity	KW	42
Machine dimension	m	9.67x3.05x2.95
Machine weight	t	33.2
Oil tank capacity	L	1136
