Basic Info.

Model NO. YG280 Drill Hole Depth 150 M Bit Type Alloy Bit Drilling Way Rotary Type Mobile Product Name Water Well Drilling Rig Model Yg-D120 Engine Diesel System Hydraulic Drilling Depth 150 M Drilling Diameter 80-220 mm Power 22 HP Pump Power 3.5 HP Dimensions 800*800*2700 mm Weight 200 Kg Item Trailer Mounted Water Well Drilling Rig Transport Package Standard Wooden Case Specification Water Well Drilling Rig Trademark YUGONG Origin China HS Code 8430419000 Production Capacity 1000 Sets / Month

Product Description

Water Drilling Machine Portable Water Well Drilling Rigs for Sale

Product Description

This drilling machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 600mm and depth can be more than 120 meter.

Parameter

Model	ZX280
Dimension(mm)	800*800*2700
Weight of machine (kg)	200
Drill rod diameter (mm)	51
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	120
Energy	Diesel
Motor power (KW)	22HP
Drilling method	Percussive and rotating type
Pump power (KW)	3.5HP
Drilling hole diameter(mm)	Within Ø 280mm
Hosting height(mm)	2000
Hosting capacity (kg)	800

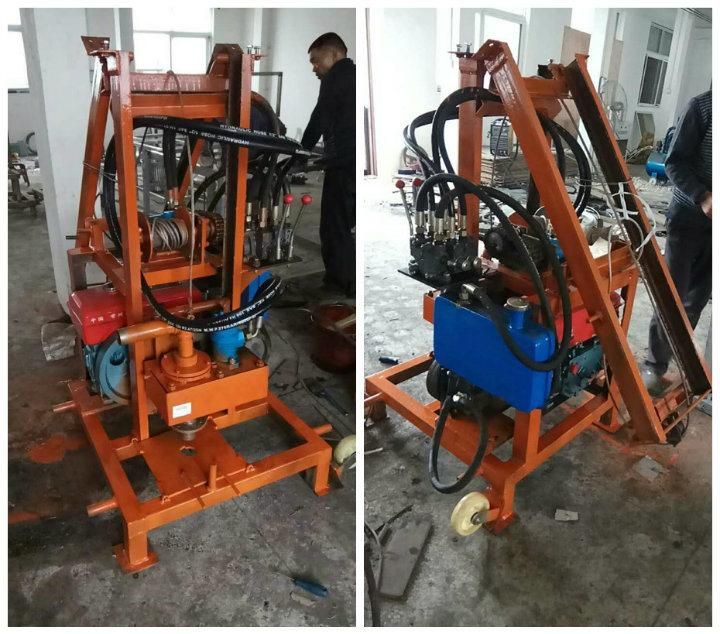

Product Display

The advantage of the water well drilling machine are as below:
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life,

• Easy to transport and can learn how to handle the machine in short time
• Can drill through hard stratum, unless thick rock layer
• Assure easily operation and long time service life



Working



• One person operation, reduce the labor intensity
• High efficiency and work fast
