• Model NO.：MAN-50
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certification：CE FDA SGS
• Minimum Character：0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Warranty：3 Years
• Marking Scope：110*110, 150*150, 175*175, 300*300mm
• Repeat Frequency：20-100kHz
• Wavelength：1064nm
• Control：Automatic
• Transport Package：Wooden Case
• Specification：110*110mm,175*175mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-50 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification CE FDA SGS Minimum Character 0.2mm Marking Line Width 0.01 mm -0.1mm Warranty 3 Years Marking Scope 110*110, 150*150, 175*175, 300*300mm Repeat Frequency 20-100kHz Wavelength 1064nm Control Automatic Transport Package Wooden Case Specification 110*110mm/175*175mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

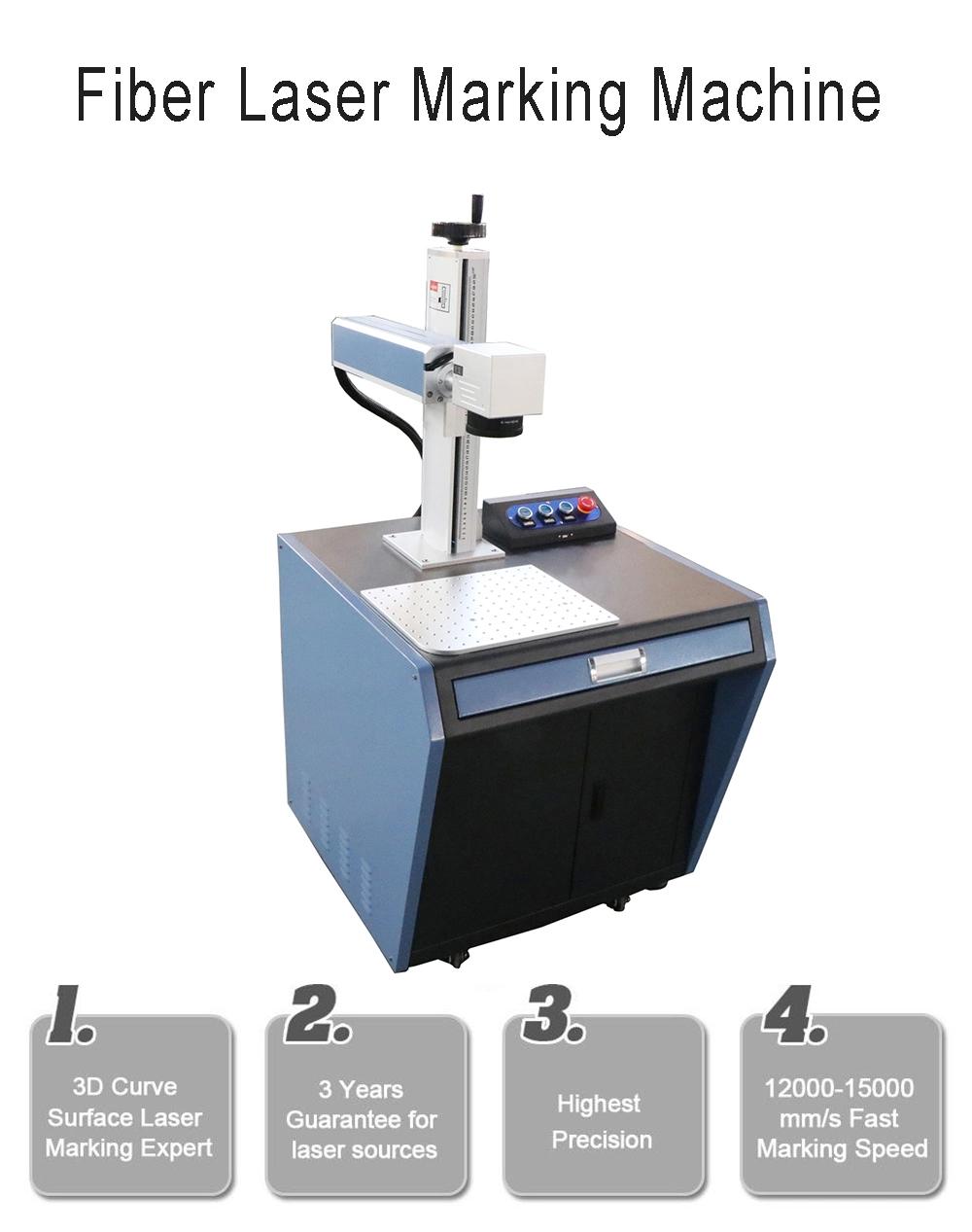

Automatic Fiber Laser Marking Engraving Machine 20W/30W/50W Logo Pringting Machine

(Model:Man-50)




Fiber Laser Marker Engraver Machine Characters Features:

1. Best Marking Effect>> the laser beam of  color laser printer fiber laser mark machine is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
2. Deep Marking>>color laser printer fiber laser mark machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy>>color laser printer fiber laser mark machine can reach unto 0.001mm precision, while diode only 0.01mm.
4. 10 Years Long lifetime>>We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100,000 hours, so the machine can be used for 8-10 years.
5.  No consumables>> color laser printer fiber laser mark machine can be used for 8-10 years without any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Low Power Consumption>> low cost, only 0.5kw/hour.


1.Germany Made Fiber Laser Sources>> A Wide Selectivity of Operating Wavelengths, Ultra-Low Amplitude Noise, High Stability and Ultra-Long Lifetime

2. Digital Galvanometer Laser Scanning Head with Fast Marking Speed>>Fast Response Ability <0.7ms, High Speed Marking and High Precision.

3. Focus Mirror>> Singapore famous "Wavelength" brand, Fast speed, high transparent rate

4. Control System>> EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using EZ-CAD control card, shield-utilizing parts of complex functions, ensuring higher stability.

5. Red Light Pointer>>Adopt red light pointer to show the laser path since laser beam is in-visible.

6. 3D Working Table>> Made up by Precision Alloy and Imported Precise Beeline Device, can be lifting and shifting from left to right. Easy to adjust the laser focus distance.

7. Laser Power Supply>> Adopt Taiwan Famous brand, Stable performance, long life span.

8. Portable Handle>>Easy to held the machine by hand.

9. Emergency Stop>> Press it when meets error, the machine will stop working immediately to avoid losses.

10. Key Switch>> Using key swith to control the power of the machine.

11. Main Switch>> It is designed as a easy button, safe and efficient.

Detail pictures:



Fiber Laser Marker Engraver Machine Characters Technical Data


Power	20W
Wavelength	1064nm
Beam Quality	M2<1.3
Output Power	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms
Focus Spot Diameter	<0.01mm
Engraving Range	≤400*400mm(customized)
Engraving Depth	1.2mm
Engraving Speed	800 standard characters/second
Minimum Line Width	0.012mm
Minimum Character	0.1mm
Repeated Accuracy	±0.003mm
System Operation	Windows XP/WIN7/ WIN10
Cooling Mode	Air Cooling
Environment Temperature	10ºC~35ºC
Environment Humidity	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W
Life of Laser Module	100000Hrs

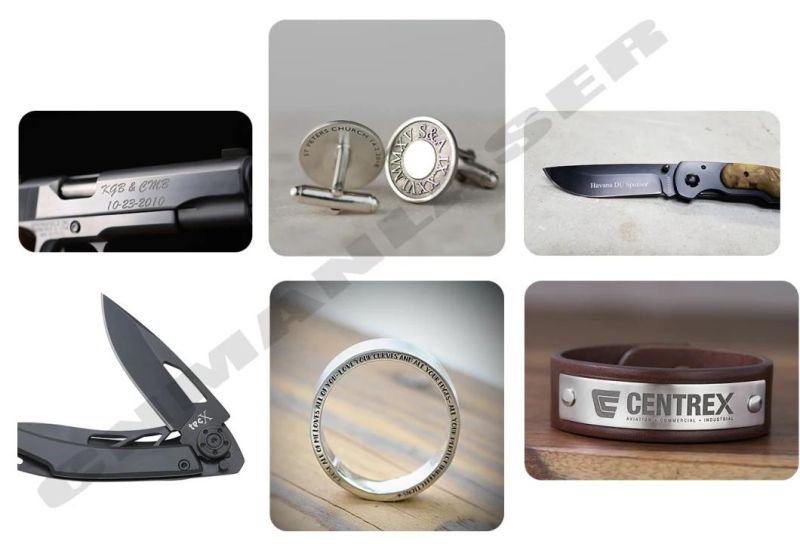

Fiber Laser Marker Engraver Machine Application:


Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment ,etc.,
Instrument:	Panel signs nameplates, precision equipment ,etc.,
Hardware Tools :	Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts :	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts :	Bearings, gears, standard parts, motors, etc.,
Daily Necessities :	Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry Rings:	Jewelry, gold, silver,etc.
Food, drinking packing:	Plastic packings,etc.

Company Profile:



1.Company Information:

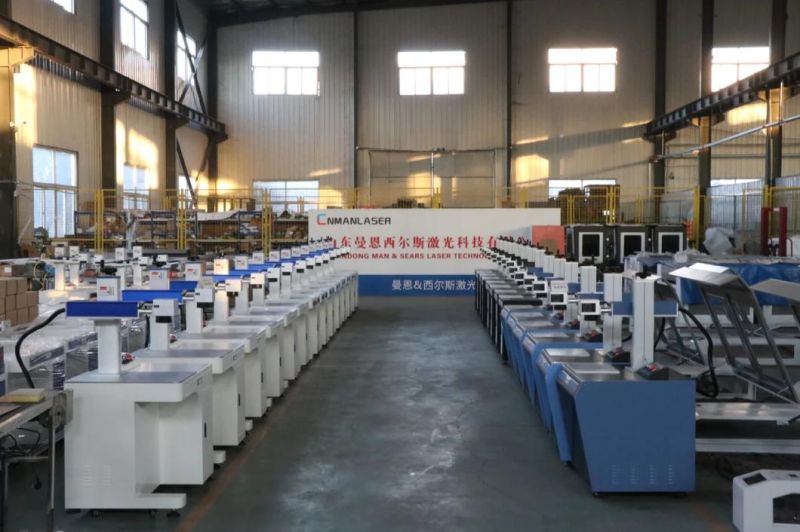

Shandong Man  Machinery Equipment Co., LTD. mainly engaged in cross-border business for 10 years. At present,
