• Model NO.：STBA
• Usage Equipment：Angle Grinder, Circular Saw, Tile Saw
• Transport Package：Carton, Pallet
• Specification：105-350mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. STBA Usage Equipment Angle Grinder, Circular Saw, Tile Saw Transport Package Carton, Pallet Specification 105-350mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 10000PCS/Month

Product Description

1. Turbo blade Introduction

Sinter Hot-pressed Diamond Stone Turbo Blade is widely used for cutting marble, granite, ceramic tile, and other decorative stone material. The fast-cutting speed with a clean edge, no chipping. The Stone blade can be installed on a little angle grinder or table saw. The Stone-cutter blade is suitable for dry and wet cutting. Specially designed fine turbo wave segments provide extremely fast speed and smooth cutting. The diameter ranges from 105mm to 350mm, or the other sizes can be customed as your request.

2. Application & equipment

Cutting materials: granite, marble, and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw

3. Turbo blade features:

 - Fast cutting speed and small cutting gap and high cutting efficiency.
 - Suitable for dry/wet cutting
 - Specially designed fine turbo teeth and mature bond system provides extremely fast and smooth cutting.
 - Good cutting result: smooth and stable cutting, stone waste reduction.




5. Specification:


Item No.	Diameter	Segment Height	Segment Width	Arbor
STBA10508	105mm	8mm	2.2mm	22.23mm
STBA11508	115mm	8mm	2.2mm	22.23mm
STBA12508	125mm	8mm	2.2mm	22.23mm
STBA15008	150mm	8mm	2.2mm	22.23mm
STBA18008	180mm	8mm	2.5mm	22.23mm
STBA23008	230mm	8mm	2.7mm	22.23mm
STBA30010	300mm	10mm	3.2mm	25.4mm
STBA35010	350mm	10mm	3.2mm	25.4mm

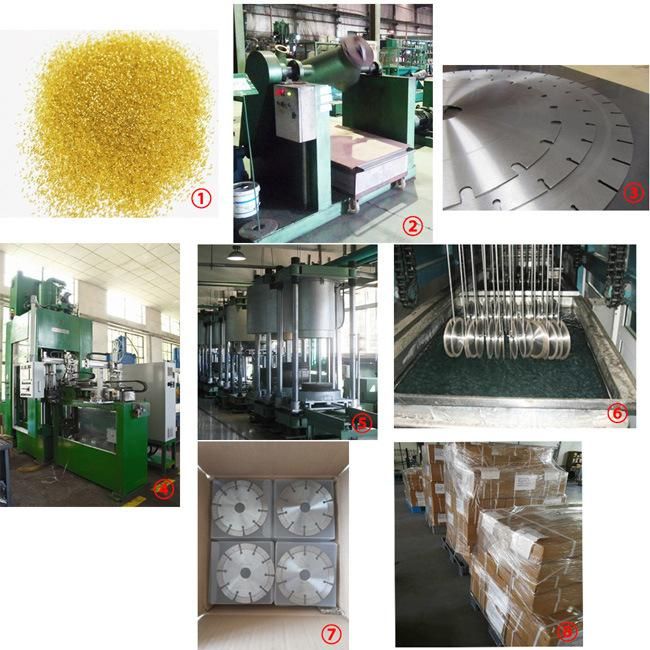

5.Turbo blade production process.

Raw material→ powder mixing→steel core→cold-press→sintering→surface treatment→packaging→dispatch



5. Delivery time

Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.




6. Corediam Service

We Corediam provide a full diamond blade solution for your project, offering customized diamond blades dependent on the demand of your granite cutting project.

7.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
