• Model NO.：PE-F3015B
• Structure Type：Desktop
• Laser Classification：Fiber Laser
• Laser Technology：Laser Control Fault Cutting
• Laser Power：1000W 2000W
• Maximum Run Speed：90m,Min
• Laser Wavelength：1080 Nm
• Minimum Cutting Line Width：0.1mm
• X, Y-Axis Positioning Accuracy：0.01mm
• Repeated Positioning Accuracy of The Tab：0.01mm
• The Maximum Load of The Workbench：800kg
• Working Area：1500*3000mm
• Z-Axis Travel：120mm
• Electricity Power：380V 50Hz
• Diameter：1-300mm
• Transport Package：Exporting Standard Package
• Specification：ISO,CE certificate
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. PE-F3015B Structure Type Desktop Laser Classification Fiber Laser Laser Technology Laser Control Fault Cutting Laser Power 1000W 2000W Maximum Run Speed 90m/Min Laser Wavelength 1080 Nm Minimum Cutting Line Width 0.1mm X, Y-Axis Positioning Accuracy 0.01mm Repeated Positioning Accuracy of The Tab 0.01mm The Maximum Load of The Workbench 800kg Working Area 1500*3000mm Z-Axis Travel 120mm Electricity Power 380V 50Hz Diameter 1-300mm Transport Package Exporting Standard Package Specification ISO/CE certificate Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

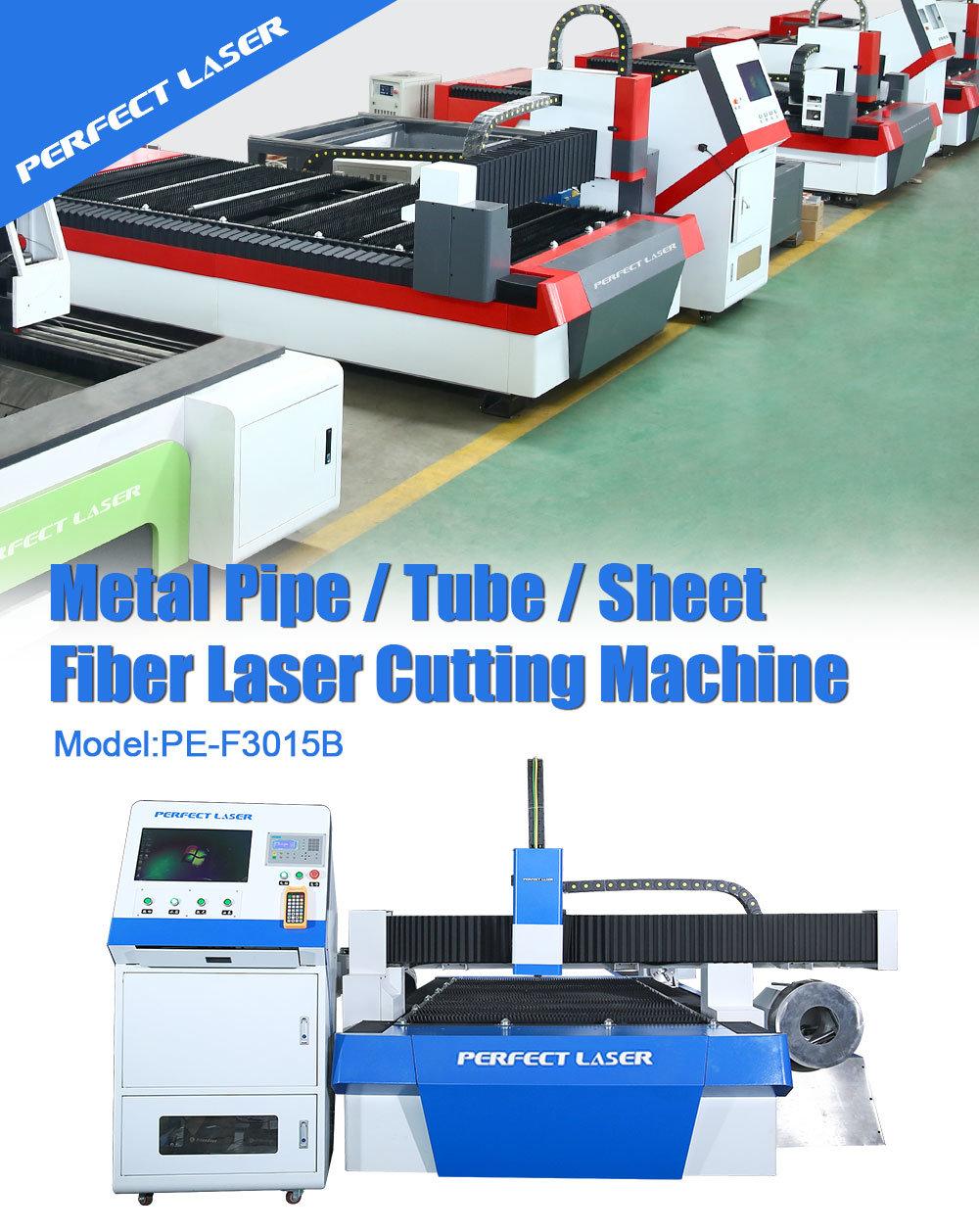

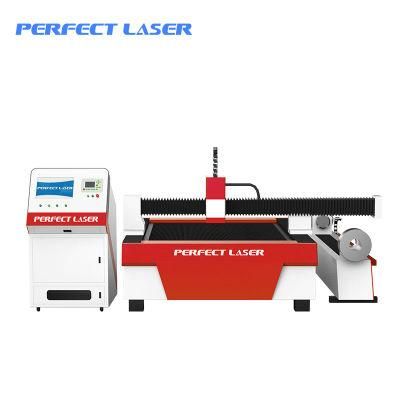

1000W 2000W Metal Pipe And Sheet Fiber Laser Cutting Machine
(Model:PE-F3015B)

Contact:Crystal
Product Introduction of Laser Metal Cutter:
Perfect Laser, professional Laser Metal Cutter manufacturers, with advanced cutting machine equipment, first-class technology, quality service, get good reputation in fiber laser cutting machine equipment industry.
In order to meet the needs of customers for cutting metal pipe and sheet, Perfect Laser launched the muti-functional Laser Metal Cutter(Model:PE-F3015B). This cutting machine is adopted the Taiwan famous screw guide, Panasonic servo and drive, the cutting machine can improve the working efficiency greatly. And the pipe diameter of Laser Metal Cutter can up to 200mm (can be customized according to customer needs ). Moreover, the cutting machine unique design with rotary auxiliaries can solve the technical problems for cutting pipe and sheet.

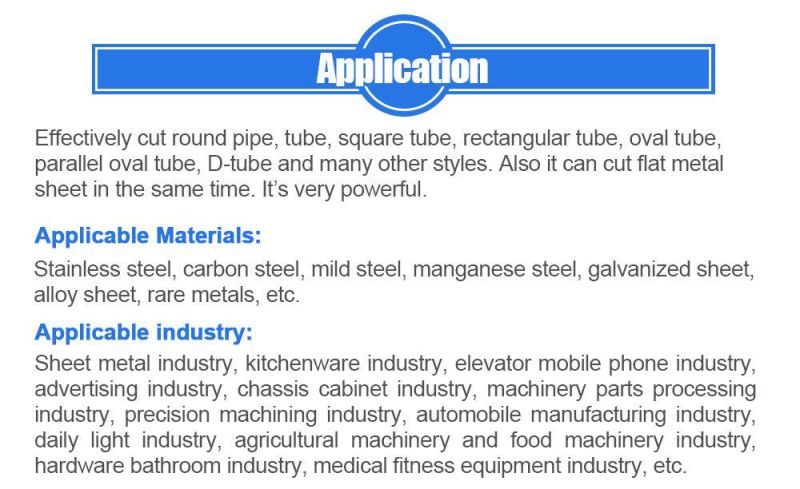

Product Application of Laser Metal Cutter:

This metal laser cutter can effectively cut pipe, square tube, rectangular tube, oval tube, parallel oval tube, D-tube and other styles of pipe.
The metal laser cutter main processing materials: stainless steel, carbon steel, manganese steel, galvanized sheet, all kinds of alloy plate, rare metals.

The metal laser cutter main application industry: sheet metal industry, kitchenwareindustry, elevator mobile phone industry, advertising industry, chassis cabinet industry,machinery parts processing industry, precision machining industry, automobile manufacturingindustry, daily light industry, agricultural machinery and food machinery industry, hardwarebathroom industry, Medical fitness equipment industry.

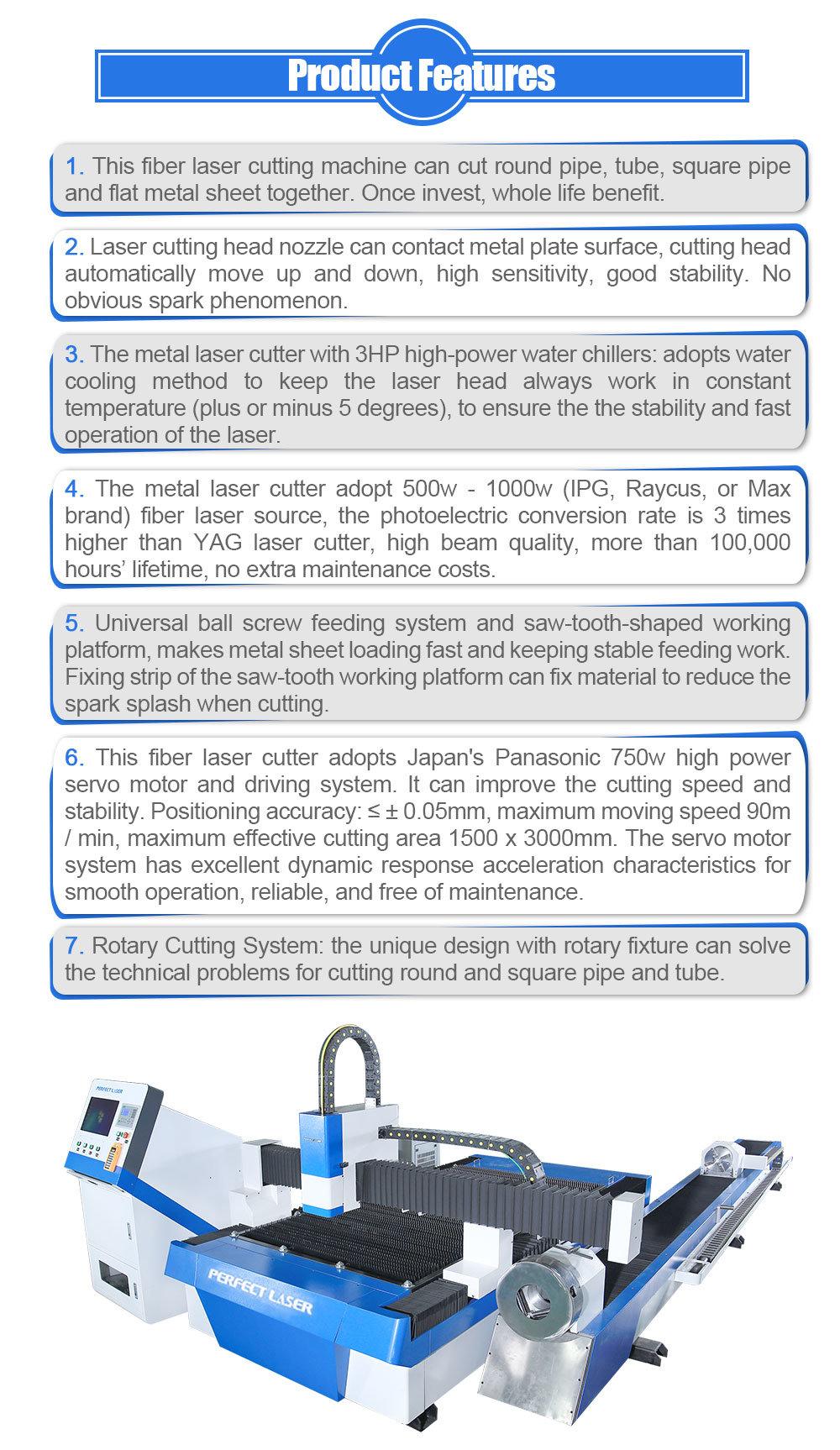

Main Features of Laser Metal Cutter:

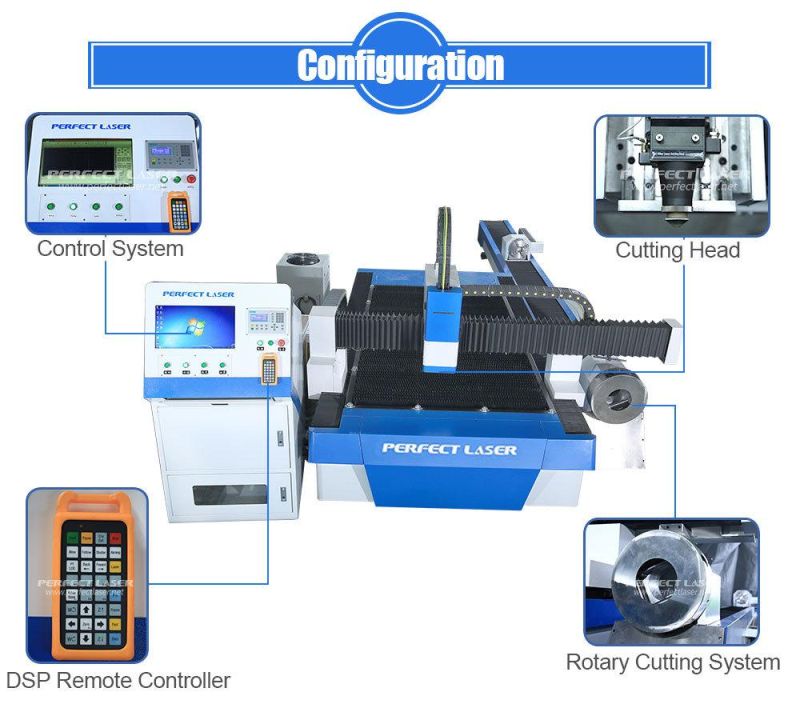

1.The metal laser cutter's controller with a touch screen operating system:

• Fiber laser controller installed on the computer (English version of Windows XP system);
• Ytterbium laser cutting system, automatic optimized cutting path calculation, industrial computer installed software;
• Touch screen operation system to control the laser head (adjust the distance between the laser head and metal material); wireless control handle can control the laser cutting head movement trajectory.

2.The metal laser cutter is adopts Lasermach(USA) and PRECITEC(Germany ) automatic focus laser cutting head (metal sensor) :Laser cutting head nozzle contact metal plate surface, cutting head automatically move up and down, high sensitivity, good stability. No obvious spark phenomenon.
3.The metal laser cutter with 3HP high-power water chillers: adopts water cooling method to keep the laser head always work in constant temperature(plus or minus 5 degrees), to ensure the the stability and fast operation of the laser.
4.The metal laser cutter with Raycus 1000W (IPG1000W) fiber laser generator:photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
5.Universal ball screw and jagged shaped working platform, loading metal material fast andkeeping stable feeding work. jagged platform fixing strip can fix material to reduce the spark splash when cutting.
6.The cutting machine is adopted Japan's Panasonic servo motor and drive: improve the cutting speed and stability. Positioning accuracy: ≤ ± 0.05mm; maximum moving speed 90m / min, maximum effective cutting area 1500 * 3000mm. The servo system has excellent dynamic response acceleration characteristics for smooth operation, reliable, no maintenance.
7.Self-service refueling, alarm system, smoke device: Laser cutting machine tracks can automatically be refueled, always ensure track lubrication. laser cutting machine alarm system to remind the situation of the role of the machine. Smoke device can extract the smoke in the cutting process, to protect the working environment.
8.Rotary aids: the unique design with rotary auxiliaries can solve the technical problems for cutting pipe.


Technical Data of Laser Metal Cutter:

Name	Metal sheet and pipe fiber laser cutting machine
Model	PE-F3015B (500W /800W /1000W /2000W)
Maximum run speed	90m/min
Laser Wavelength	1080 nm
Minimum cutting line width	0.1mm
Rated output power	50--2000W
X, Y-axis positioning accuracy	≤±0.01mm
Repeated positioning accuracy of the table	≤±0.01mm
The maximum load of the workbench	800KG
Effective processing format	1500*3000mm
Z-axis travel	120mm
Volume	4.6*2.3*1.8m
Power	12KW
Water cooler	2kw
Electricity power	380v 50Hz±10%
Red light spot position	yes
Auxiliary gas	Oxygen, nitrogen
Pipe type	Round,oval,special-shaped pipe
Pipe Length	<12m
Cutable Pipe Length	<6m
Diameter	1mm-300mm

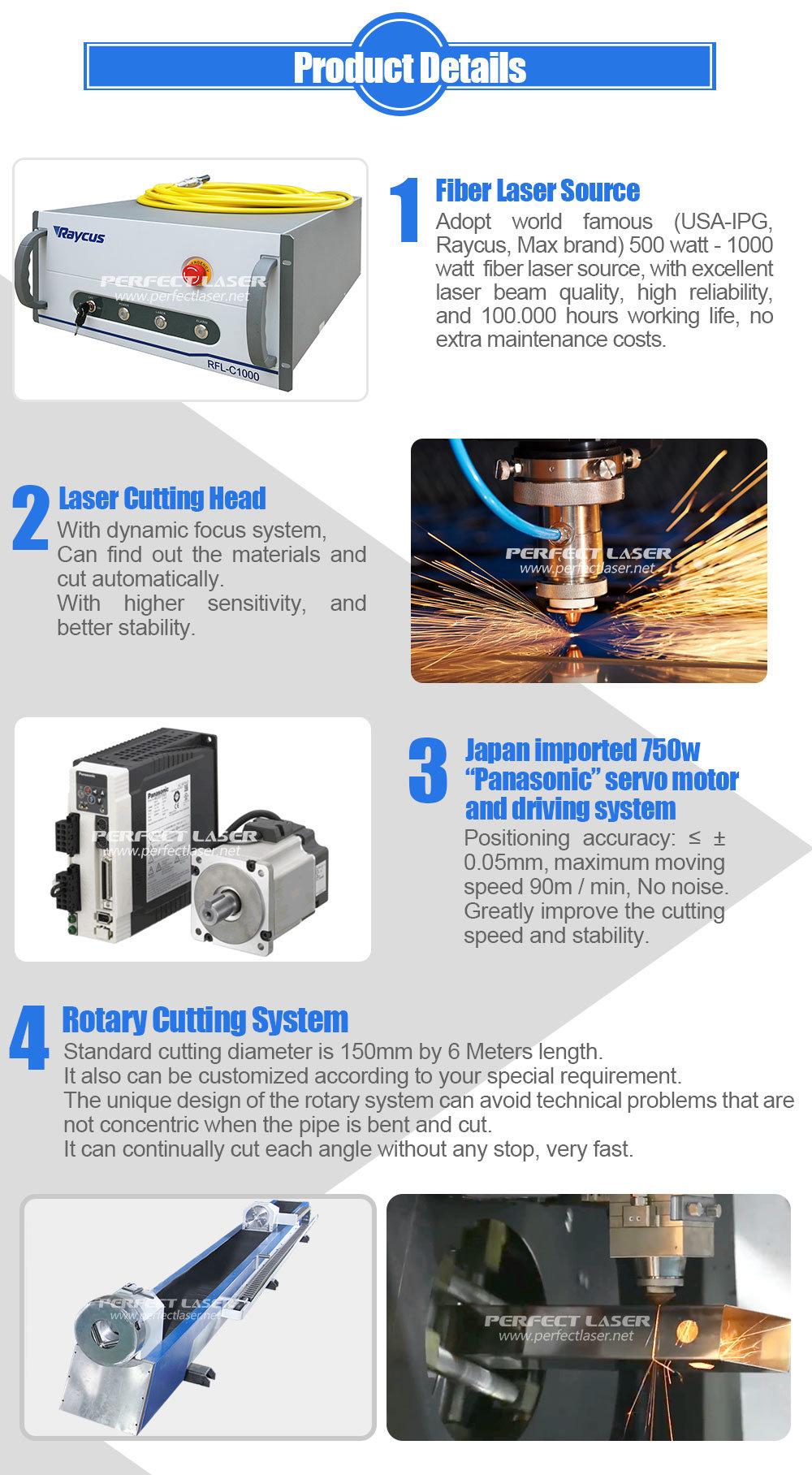

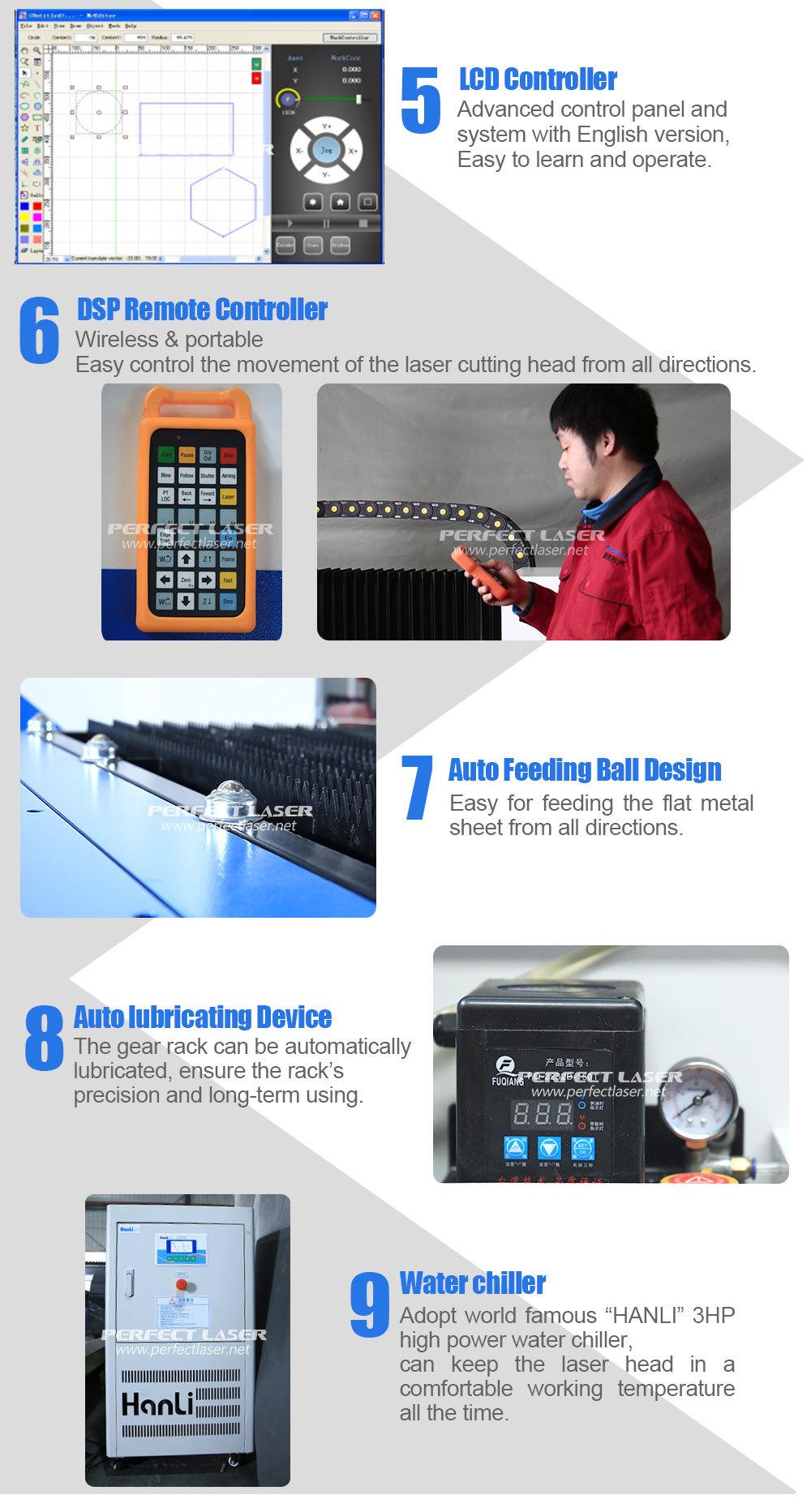

Machine Details of Laser Metal Cutter:


Our Company:
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.


Contact us :
Perfect Laser Co., Ltd. (China)
Contact: Crystal/sales department
Tel: 0086-27-8679 1986
Fax: 0086-27-8677 5865
MP: 0086-136 5989 3728




Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
