Basic Info.

Model NO. CPU30J-M Certification CE, ISO9001:2008 Transport Package Plywood Box Specification 2500*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

Product Description

Application: applicable to the manufacture of casting polyurethane elastomer products whose cross-linking agent is MDI etc. Polyurethane and vacuum degassing can be synthesized in the machine. It produces polyurethane elastomer products with middle and low hardness.

Working Condition

Component Name	Mixing Ratio	Temperature(ºC)	Viscosity(CPS)
A Prepolymer	100	Room Temperature-110	100-3000
B MDI Semi-Prepolymer	60-150	Room Temperature-110	100-3000
C 14 Butanediol or BDO	4-15	Room Temperature-130	100-3000
Catalyst	0.3-3	Room Temperature	50-2000
Color Paste	0.5-3	Room Temperature	50-2000

Main Parameters

ITEM/MODEL	CPU30J-M1	CPU30J-M2	CPU30J-M3	CPU30J-M4
Total Discharge Amount(g/min)	250-2500	1000-5000	3000-10000	5000-15000
A Tank Capacity (L)	160	160	250	250
B Tank Capacity (L)	160	160	250	250
C Tank Capacity (L)	30	30	80	80
Pouring Head Stirring Speed(r/min)	3000-5000	3000-5000	3000-5000	3000-5000
Outline Size (L*W*H)(mm)	1790*2940*2450	1790*2940*2450	1790*3040*2450	1790*3040*2450
Total Power (KW)	35	38	40	40
Weight (kg)	2680	2680	2850	2850

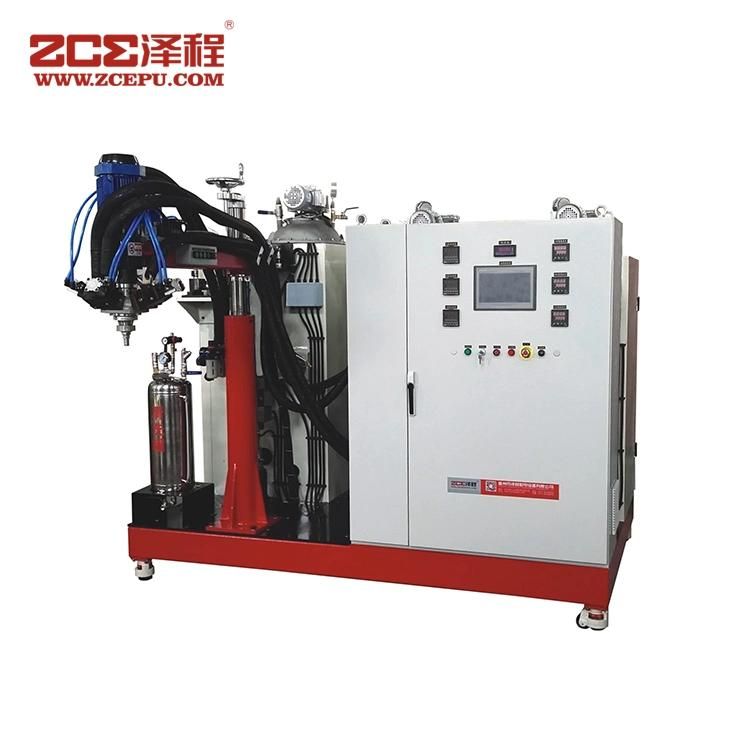

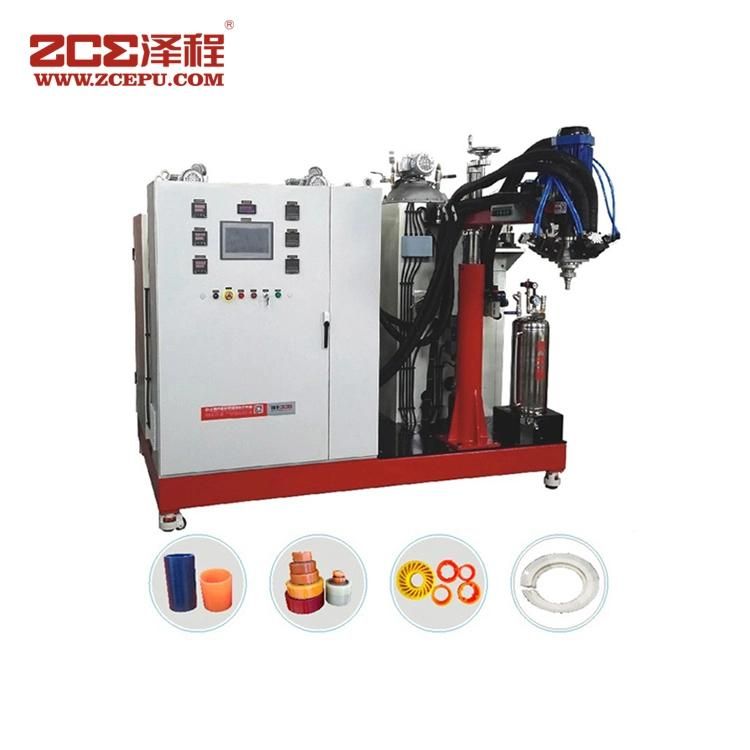

Product Photos
