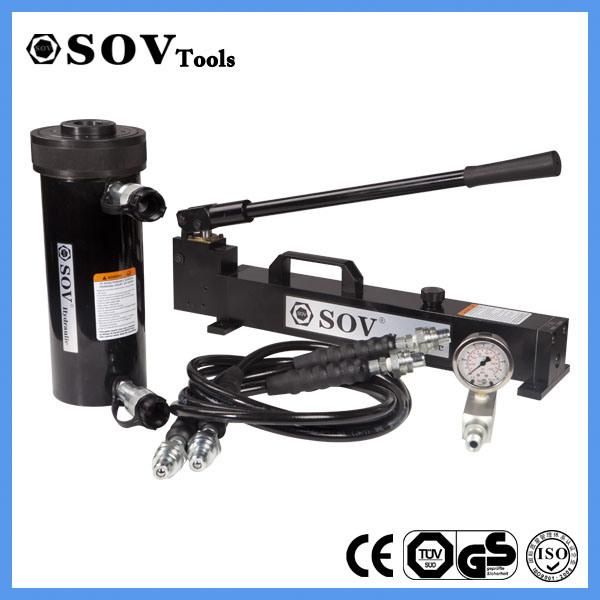

Rrh-603 Double Acting 60 Tons Hydraulic Jack for Tensioning
Foshan TP-Pack Packaging Materials Co., Ltd.- Certification：CE
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Acting Way：Double Acting
- Structure：Piston Cylinder
- Material：Steel
Base Info
- Model NO.：RRH-603
- Capacity：60 Ton
- Stroke：89 mm
- Collpased/Closed Height：247 mm
- Cylinder O.D：159 mm
- Working Pressure：700 Bar
- Center Hole Diameter：53.8mm
- Saddle Diameter：91 mm
- Certificate：Ce&ISO
- Warranty：3 Years
- OEM：Yes
- Transport Package：Standard Export Wooden Case
- Specification：CE, ISO, SGS
- Trademark：SOV
- Origin：Shanghai, China
- HS Code：8425421000
- Production Capacity：800PCS,Month
Description
Maximum
Cylinder CapacityCylinder
Effective Area Oil
Capa-
city Coll.
Height Ext.
Height Out-
side
Dia. Center Hole
Dia. Weight kN cm2 cm3 A B D Y ton mm Adv. Retr. Adv. Retr. Adv. Retr. mm mm mm mm kg SOV-RRH-307 30 178 326 213 46,6 30,4 829 541 330 508 114 33,3 21 SOV-RRH-3010 30 258 326 213 46,6 30,4 1202 784 431 689 114 33,3 27 SOV-RRH-603 60 89 576 380 82,3 54,2 733 482 247 336 159 53,8 28 SOV-RRH-606 60 166 576 380 82,3 54,2 1366 900 323 489 159 53,8 35 SOV-RRH-6010 60 257 576 380 82,3 54,2 2115 1393 438 695 159 53,8 45 SOV-RRH-1001 95 38 931 612 133 87,4 505 333 165 203 212 79,2 33 SOV-RRH-1003 95 76 931 612 133 87,4 1011 666 254 330 212 79,2 61 SOV-RRH-1006 95 153 931 612 133 87,4 2035 1337 342 495 212 79,2 79 SOV-RRH-10010 95 257 931 612 133 87,4 3420 2246 460 717 212 79,2 106 SOV-RRH-1508 145 203 1429 718 204,1 102,6 4144 2083 349 552 247 79,2 111
Accessories Available (extra charge) :
1. Saddles and Gauges
2. Hoses (extra charge)
High quality hydraulic hoses to ensure the integrity of your system, refer to our hydraulic hose.
3. Manual hydraulic pumps (extra charge)
Single acting cylinder pump is the quickest and easiest way to start working right away
Optimum match of individual components
4. All sets are ready-for-use
Packing details
1. Out packing: standard export wooden case
2. Inner packing: with careful stretch film+cardboard
Delivery time
1. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock;
2. Delivery time: Prompt delivery;
Shipping way
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port
Our service
1. 24hours online technical support (telephone and email)
2. 100% Satisfaction Guarantee
3. Engineers are available
Quality control
Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got CE&ISO certificates, So please rest assure.

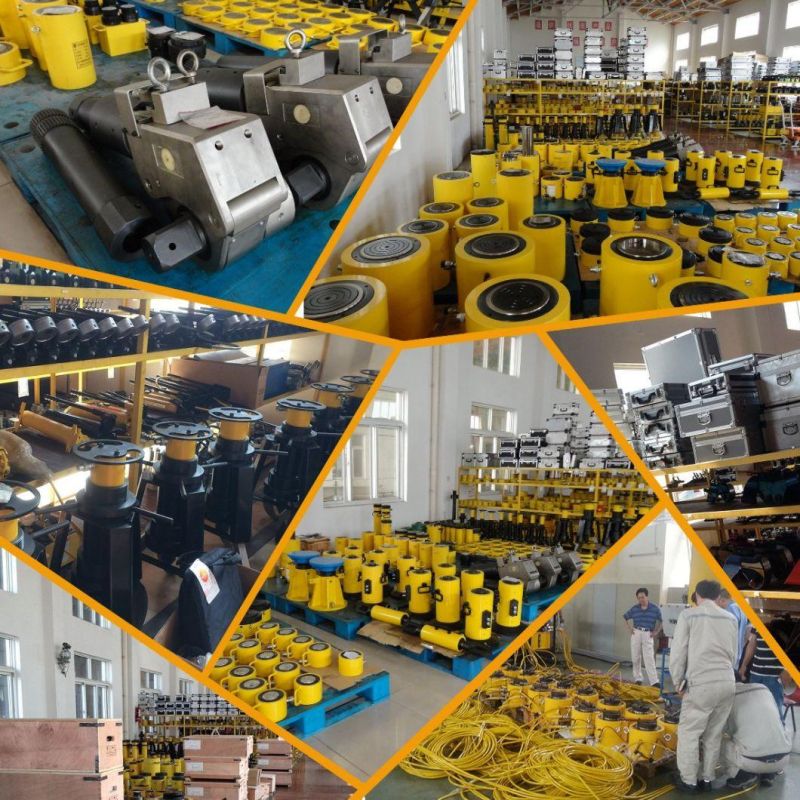

Our company
Established in 1995, SOV hydraulic technology company is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, America, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides,we have gained CE and ISO9001:2008 certificates.
Our Main Series Products:
1.Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut;
2.Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
3.Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
4.Hydraulic pumps, manual and electric type (max up to 4000bar);

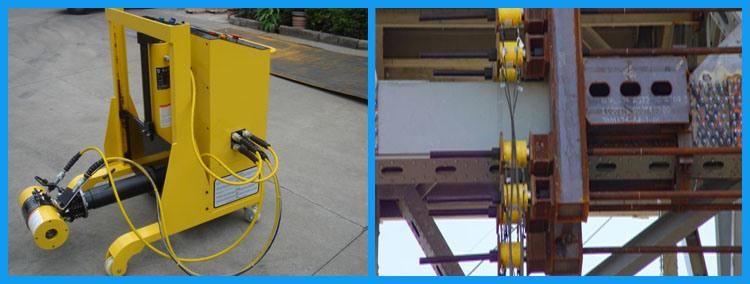

5.Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6.Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Why Choose us
1. Various style for completely series hydraulic products for you to choose
2. High quality with competitive price
3. Sample order & small quantity order is ok
4. Provide free products information
Why DO YOU NEED SOV?
1. Because you need quality hydraulic tools at economical prices.
2. SOV hydraulic technology factory are produced in modern facilities using advantage processing technology. All SOV products meet or exceed CE and ISO standards and tolerances.
3. Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.
4. Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
If you have a lifting problem that others can't solve call SOV, the hydraulic tools supplier you need.
NOTE: all items are directly from factory, We would allow you a quantity discount, so please contact with me when u gonna order, we will answer back ASAP.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
