Basic Info.

Model NO. 65/132 Computerized Computerized Twin Screw Extruder Sjsz 65 Capacity Range 10-20m/Min Transport Package pallets Specification ISO/CE Trademark XJG Origin China HS Code 8477 Production Capacity UNCERTAIN

Product Description

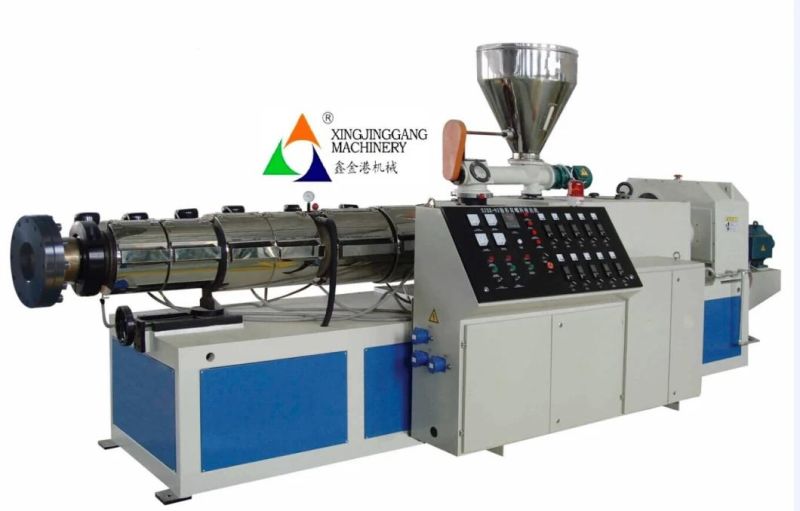

65/132Conical Twin Screw Extruder

The SJSZ series conical twin-screw extruder has advantages such as forced extruding, high quality, wide suitable range, long working life, small sharing speed, not easy to decompose of material, good plasticized character, and straight shaping of powder material and etc.

This extruder is equipped with AC motor, auto temperature controller, vacuum exhausting device and other devices. This line is suitable for production of pipe, plate, profile and etc.




Model	SJSZ-51	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Screw Dia.(mm)	51/105	55/110	65/132	80/156	92/188
Max.Speed (rpm)	40	38	38	37	36
Main Motor(KW)	18.5	22	37	55	90
Output (KG/H)	80~100	100~150	150~250	250~380	380~700
Centre height	1050	1050	1050	1050	1100
Net Weight(KG)	3000	3500	4000	5500	8000
L*W*H(m)	3.6X1.1X2.1	3.6X1.1X2.1	4.2X1.5X2.4	4.7X1.5X2.4	6X1.6X2.5
