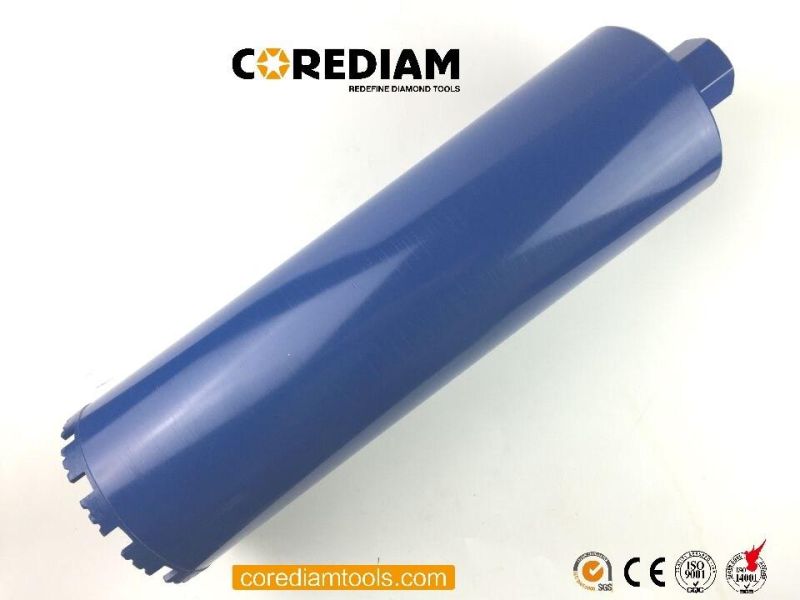

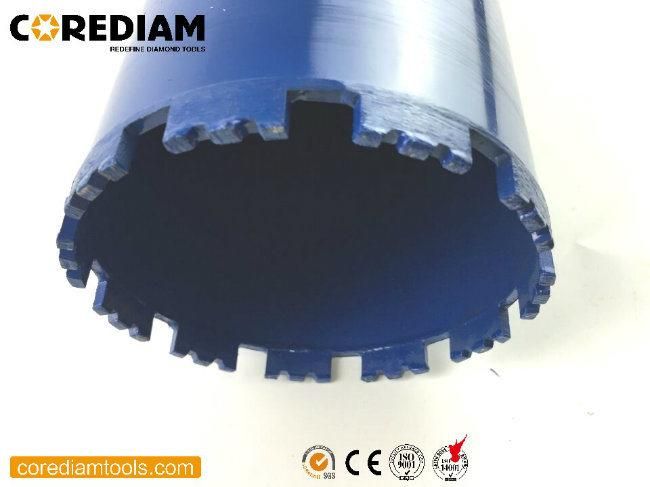

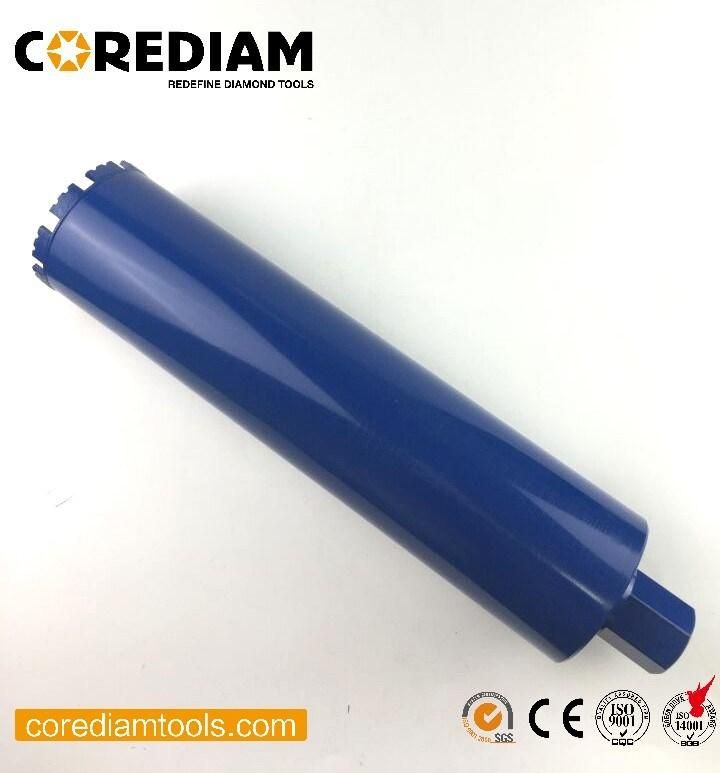

Excellent Performance Wet Core Drill/Core Drill/Core Bits/Diamond Tool
Pinghu Kaixin Plastic Industry Co., Ltd.- Type：Core Drill
- Usage：Masonry Drilling, Reinforced Conrete Drilling
- Manufacturing Technology：Laser Welding
- Segment Height：10mm
- Application：Wet Drilling Concrete, Reinforced Concrete
- Installing Equipment：Stand Core Driller, Hand-Held Drillers
Base Info
- Model NO.：CWDA
- Transport Package：Carton, Case, Pallet
- Specification：25mm-350mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82071910
- Production Capacity：2000 Pieces Per Month
Description
2.Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDA02545010 | 25mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03245010 | 32mm | 10 | 1 1/4"-7 | 450mm |
| CWDA03645010 | 36mm | 10 | 1 1/4"-7 | 450mm |
| CWDA04245010 | 42mm | 10 | 1 1/4"-7 | 450mm |
| CWDA05245010 | 52mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06245010 | 62mm | 10 | 1 1/4"-7 | 450mm |
| CWDA06645010 | 66mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07245010 | 72mm | 10 | 1 1/4"-7 | 450mm |
| CWDA07645010 | 76mm | 10 | 1 1/4"-7 | 450mm |
| CWDA08245010 | 82mm | 10 | 1 1/4"-7 | 450mm |
| CWDA09245010 | 92mm | 10 | 1 1/4"-7 | 450mm |
| CWDA10245010 | 102mm | 10 | 1 1/4"-7 | 450mm |
| CWDA11245010 | 112mm | 10 | 1 1/4"-7 | 450mm |
| CWDA12745010 | 127mm | 10 | 1 1/4"-7 | 450mm |
| CWDA13245010 | 132mm | 10 | 1 1/4"-7 | 450mm |
| CWDA15245010 | 152mm | 10 | 1 1/4"-7 | 450mm |
| CWDA16245010 | 162mm | 10 | 1 1/4"-7 | 450mm |
| CWDA17245010 | 172mm | 10 | 1 1/4"-7 | 450mm |
| CWDA18245010 | 182mm | 10 | 1 1/4"-7 | 450mm |
| CWDA20045010 | 200mm | 10 | 1 1/4"-7 | 450mm |
| CWDA25045010 | 250mm | 10 | 1 1/4"-7 | 450mm |
| CWDA30045010 | 300mm | 10 | 1 1/4"-7 | 450mm |
| CWDA35045010 | 350mm | 10 | 1 1/4"-7 | 450mm |
3.Features
Manufacturer technology: brazed
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have resonable lifespan

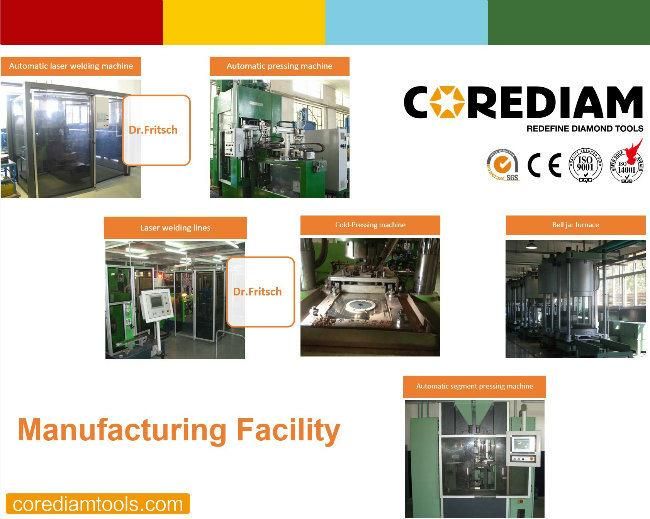

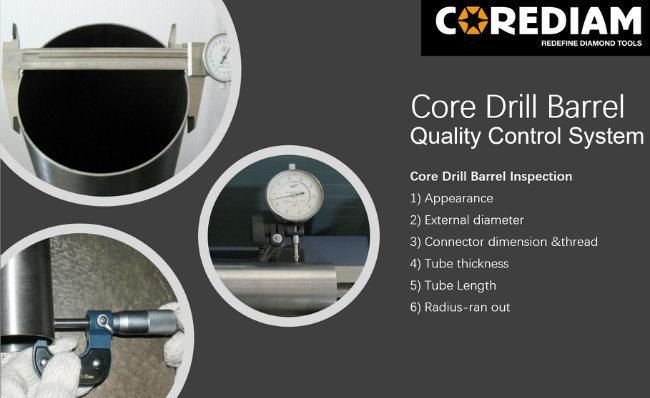

4.Manufacturing facility and Quality control

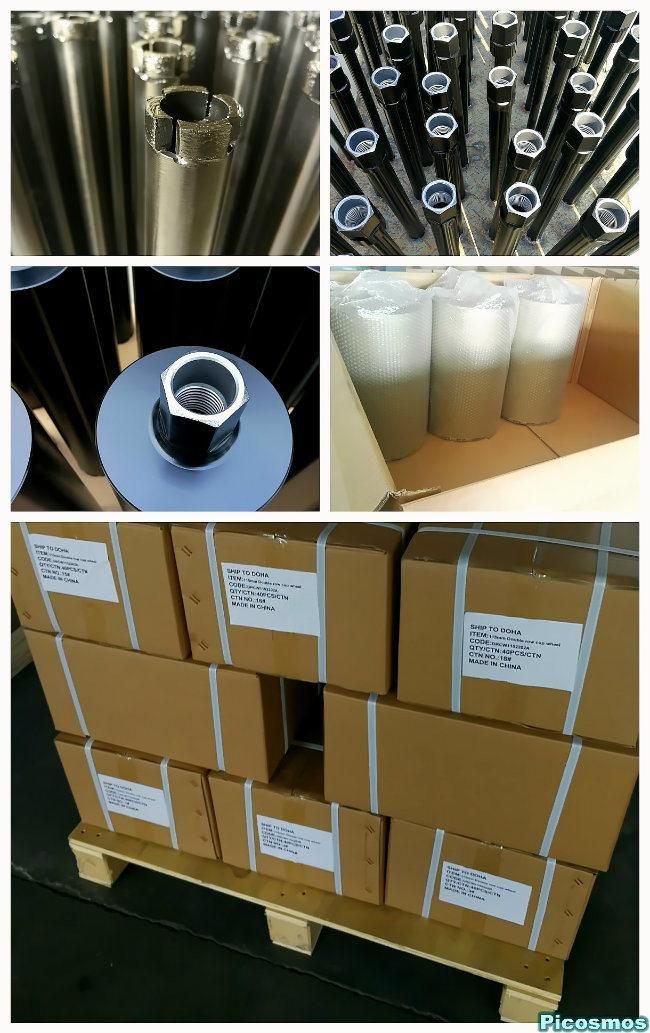

5.Delivery time & Packing
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
6.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
