• Condition：New
• Customized：Customized
• Color：Can Be Customized
• Hour Processing Capacity：150-200kgs Per Hour
• Press Power：7.5-11K.W
• Dimension(L*W*H)：1718*1450*1735mm
• Weight：973kgs
• Certification：ISO, BV, SGS
• Automatic Grade：Semi-Automatic
• Usage：Rapeseed, Cotton Seed, Soybean, Peanut
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Heating Power：2.65kw
• Filtering Power：1.5kw
• Delivery：20 Working Days
• Daily Processing：3.5tons-4.5tons
• Transport Package：Fumigated Wooden Packing, or as Customers′ Request
• Specification：ISO BV SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Basic Info.

Condition New Customized Customized Color Can Be Customized Hour Processing Capacity 150-200kgs Per Hour Press Power 7.5-11K.W Dimension(L*W*H) 1718*1450*1735mm Weight 973kgs Certification ISO, BV, SGS Automatic Grade Semi-Automatic Usage Rapeseed, Cotton Seed, Soybean, Peanut After-Sales Service Provided Engineers Available to Service Machinery Overseas Heating Power 2.65kw Filtering Power 1.5kw Delivery 20 Working Days Daily Processing 3.5tons-4.5tons Transport Package Fumigated Wooden Packing, or as Customers′ Request Specification ISO BV SGS Trademark GUANGXIN Origin Sichuan, China HS Code 8479200 Production Capacity 400 PCS/Month

Product Description

Product Description

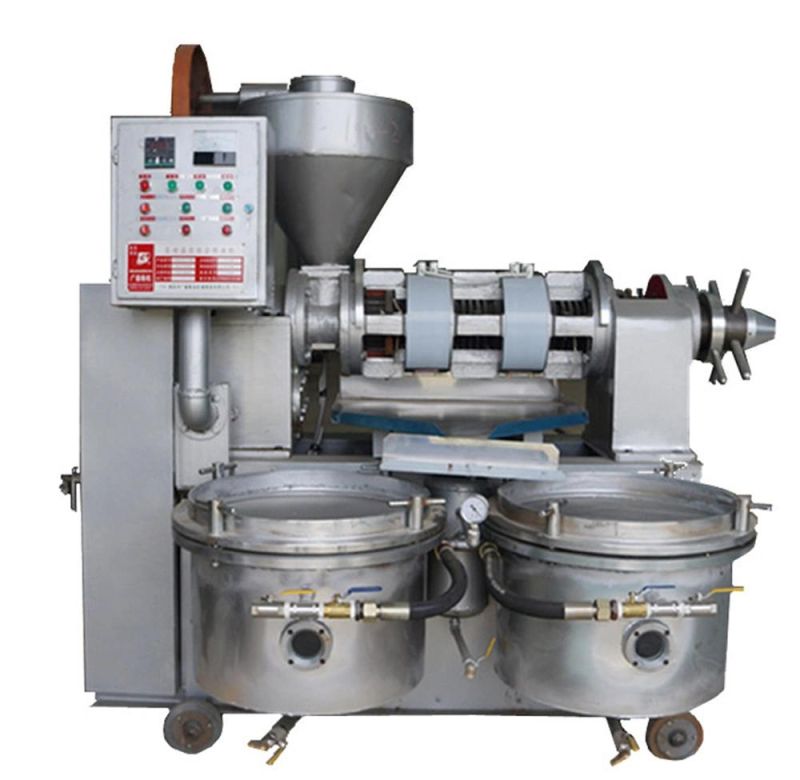

YZYX10WZ is combined oil press, it is composed of oil press, and two oil filters. Crude oil which pressed from oil plants could be filtered directly.


YZYX10WZ Characteristics:

Product Name	Automatic temperature control combined oil press
Model	YZYX10WZ
Processing capacity (t/24h)	3.5
Oil content of dry cakes (%)	≤7.8
Main electromotor power (KW)	7.5 or 11
Pump electromotor power(KW)	1.1
Temperature control power(KW)	2.65
Measurement (mm)	1718×1450×1735
Spiral axes rotate speed (r/min)	32-40
Weight (KG)	1080

1. Has combined functions in one- The press cage's auto-warming up, oil plants' squeezing and crude oil's filtrating, therefore saves labor cost and time consumption, thus, raises working efficiency.

2. The function of auto-warming up the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.

3. The two vacuum filters equipped on the machine has advantages of easy operating, high output and the filtration result is precise.

4. Day output 3.5ton/24h, oil content of residue cake ≤ 8%.


Application Range

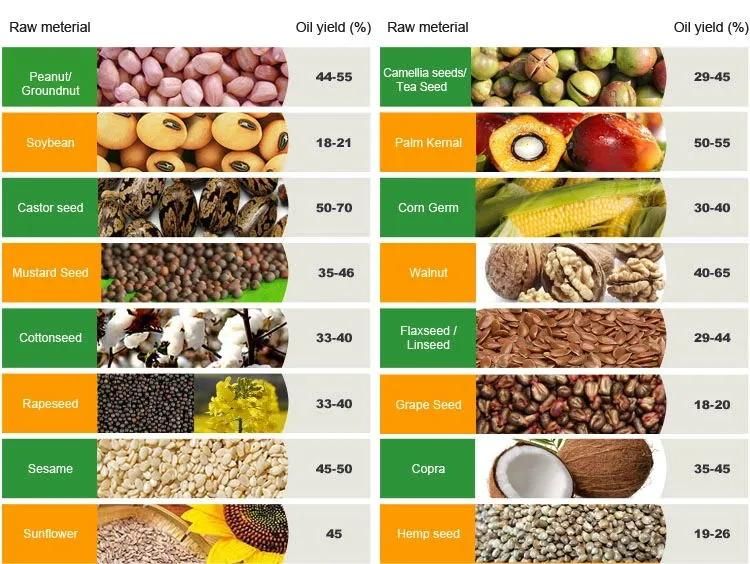

The Combined oil press are suitable for various oil seeds such as peanut, flaxseed, soybean, mustard seed, palm and palm kernel and other oil plants.




Quality Standard

Conform to JB/T9793· 1-1999 of The People's Republic of China & ISO9001: 2008.

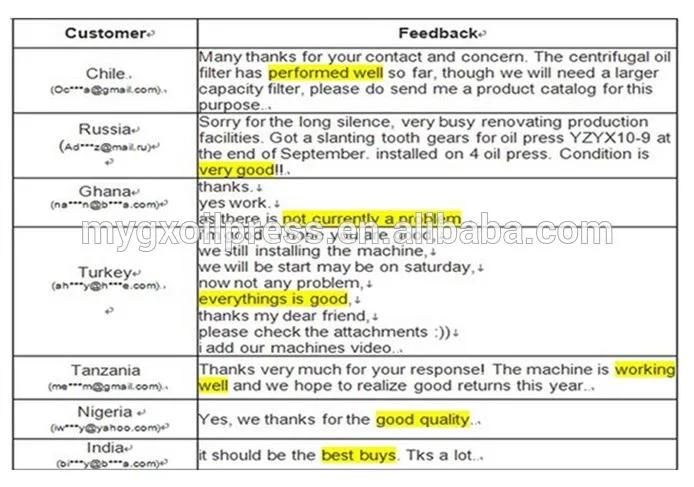

Co-operating customers' feedback

It has advanced design, convenient operation, high output, strong compatibility and high efficiency. The series products combine both refined traditional technology and scientific research, so that the products accord with marketing request and users' benefit. The products have been establishing a good reputation in China and around the world.



After-sales service

1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
3. We have professional engineering team, help users design and plan oil refinery's construction<o: P>


Packaging and delivery

1. Packaging Detail: Fumigated wooden case packing or as per customer's requests
2. Delivery Detail: 15-20 days after order confirmed





30YEARS FACTORY ----------------  your  honest parter
