CE Certification High Quality Plastic Cup Lid Making Machine
Ningbo Towin Clamp Co., Ltd.Base Info
Description
Basic Info.
Model NO. SP-410S Application Machinery & Hardware, Food & Beverage Computerized Non-Computerized Automation Automatic Transport Package Wooden Case Specification CE Trademark Sinoplast Origin Zhe Jiang/ Wen Zhou HS Code 8477409000 Production Capacity 100 Sets Per/YearProduct Description

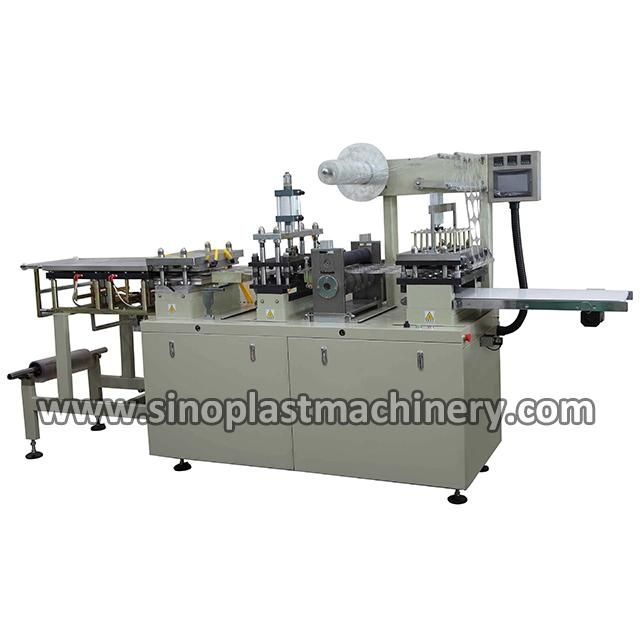

Servomotor Plastic Thermoforming Machine
Usage:
This machine is specially designed for making disposable HIPS/GPPS/PVC/PET/PLA lids for plastic/paper cups, mini soup spoons, trays for medicine and etc.
Characteristic:
- This machine adopts sheet roll feeding, heating, molding, hole or cross punching, trimming, finished products transmission automatically, which saves labor and avoids product pollution during the production.
- This machine is controlled by PLC with touch screen, which is easy operation and maintenance.
- The journey of this machine is adjustable, and easy to change the moulds for different sizes of products.
- It adopts servomotor to feed sheet, which is more accurate and the feeding length could be set by parameter setting through touch screen.
Main Technical Parameter:
Model | DP-420S |
Suitable Material | HIPS/GPPS/PVC/PET/PLA |
Journey Range | 30-160mm |
Max Forming Area | 410x300mm |
Max Forming Depth | 50mm |
Power Consumption | 10KW |
Required Sheet Width | 430mm |
Required Sheet Thickness | 0.15-0.5mm |
Air Pressure | 0.4-0.7MPa |
Air Consumption | 0.6-0.8m³/min |
Water Consumption (recycle) | 60 liters/hr |
Punching Frequency | 8-32cycles/min |
Power Voltage | 380V/50HZ |
Approx. Machine Weight | 1200kg |
Approx. Machine Dimension | 2700×830×1450mm |
Machine Packing Dimension | 3000x1000x1900mm |
