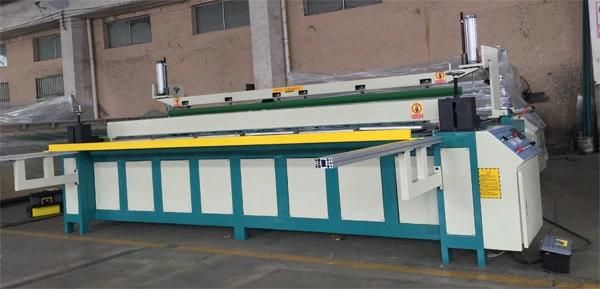

ModelTSD-ZW3000TSD-ZW4000Processing thickness(mm)25-3025-30Processing length(mm)30004000Bending angle(°)0-1000-100Roll circle diameter min(mm)500500Air pressure(kg.f/cm2)4-104-10The rated voltage(V)380380Bending heating power9kw12kwWelding heating power6kw8kwDrum institutions motor power1.5kw1.5kwLength*Width*Height(mm)3950*1100*11005000*1100*1200Control system: Press-button control or touch screen control elected.Material of heater:imported aluminum heater, teflon coated. Suitable for material:PP, PE, HDPE, PVDF, PVC, PPNApplication: Plating equipment, environmental equipment,

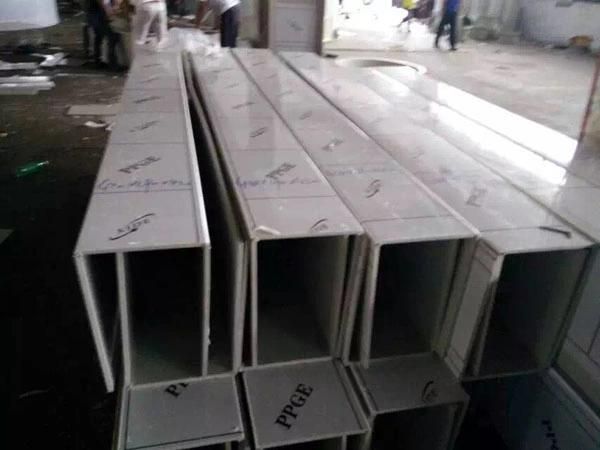

chemical containers, sewage treating pipe, ventilation systems and so on.
TSD Plastic bending function operation

1. Knife adjustment: adjust the adjusting screw fixed at both ends of the layer plate to level the gap between the upper  knife and the lower knife, gap is 3 mm or so normally.

2. The angle adjustment of the flap : adjust the magnetic switch of cylinder to make a right angel.

Operation Steps:

A. The using temperature of the upper knife is 175 degrees , the using temperature of the lower knife is about 120 degrees.

B. Start the machine after heating for about half an hour.

C. Firstly, press the Clamping-up switch,then put in the plastic board and certain the size, press the clamping-down switch to let down the clamping piece. Secondly, press the Layer-forth switch to make the upper knife reach the location where it's going to be folded.Thirdly, press the Knife-close switch to descend the upper knife and lifting the lower knife. No sooner than the contacting part of the plastic board and the upper knife has been melted about 1/2 to 3/4 ,press the Knife- separation switch.

At last, press the Layer-back switch ,then the layer board will be back and the turning board will be up. When the angle is formed and cooled , press the Turning-down switch and the Clamping-up switch.
