High Precision Laser Cutter Engraver Machine Flc1390
Hangzhou Mig Packaging Co., Ltd.- Application：Leather Industry, Carpentry, Printing & Packaging, Crafts Industr, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Automatic
- Applicable Material：Nonmetal
- Type：Oscillating Mirror
Base Info
- Model NO.：FLC1390
- Laser Classification：Gaseous Laser
- Engraving Method：Vector Engraving
- Control：CNC
- Current：AC
- Voltage：220V,110V, 50,60Hz
- Working Area：1300*900mm
- Laser Power：60W,90W,100W,130W
- Transport Package：Plywood
- Specification：1390
- Trademark：FLYING
- Origin：China
- HS Code：8456100090
- Production Capacity：100PC,Month
Description
Basic Info.
Model NO. FLC1390 Laser Classification Gaseous Laser Engraving Method Vector Engraving Control CNC Current AC Voltage 220V/110V, 50/60Hz Working Area 1300*900mm Laser Power 60W/90W/100W/130W Transport Package Plywood Specification 1390 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PC/MonthProduct Description

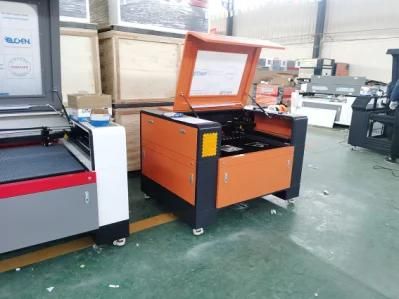

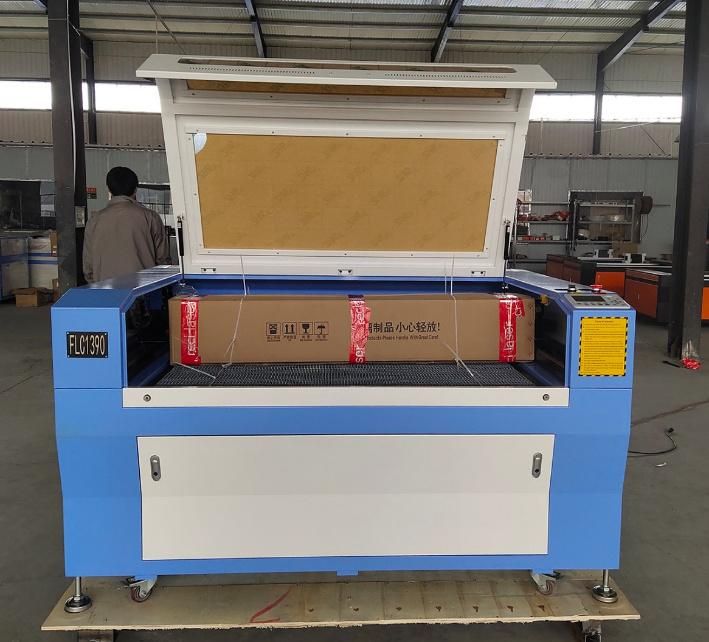

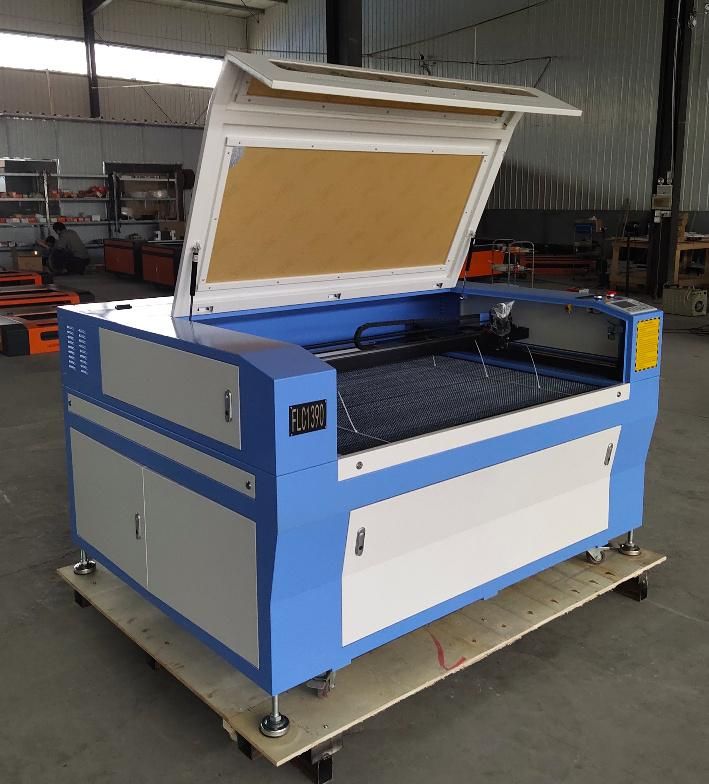

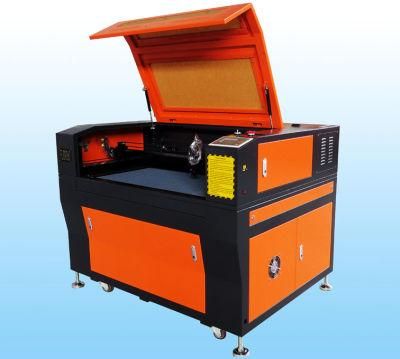

FLC 1390 laser engraver cutter machine
Features:The unique decelerate design make the mechanical system move stably and smoothly. The edge of cutting is smooth and there is no sawtooth. The software adopts. Continuous curve method to get faster cutting speed.
Applicable materials:
Acrylic, Wood, MDF, Foam, organic glass, plastic, garments, paper, leather, rubber, cloth, marble, and etc
Applicable industries:
Advertisement, arts and crafts, shoes, toys, computerized embroidery and clipping, garments, model and construction industry.
Specifications:
| Model | FLC1390 |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 60W/90W/100W/130W |
| Working area | 1300*900mm |
| Max Engraving speed: | 0-60, 000mm/min |
| Max cutting speed | 0-36, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, BMP, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, water pump |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser power |

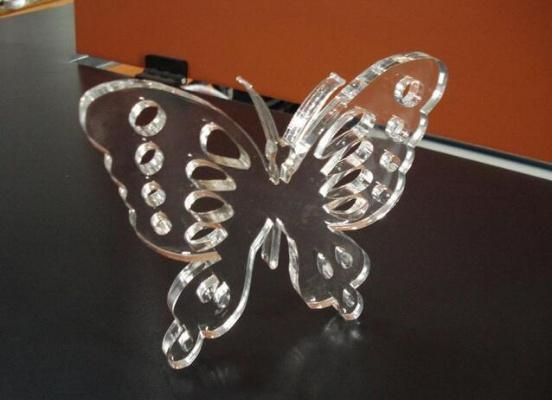

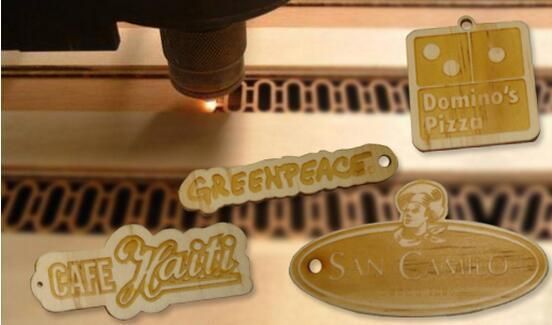

Samples Show:
