• Origin：China (Chengdu)
• HS Code：82082000
• Production Capacity：30000,Month

Basic Info.

Origin China (Chengdu) HS Code 82082000 Production Capacity 30000/Month

Product Description

PRODUCT INFORMATION

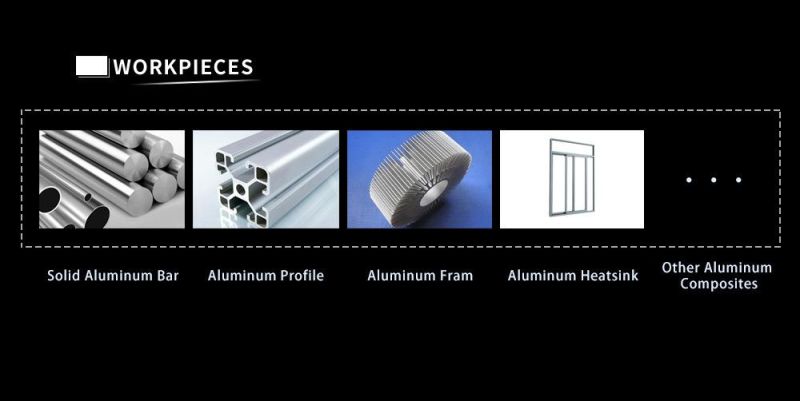

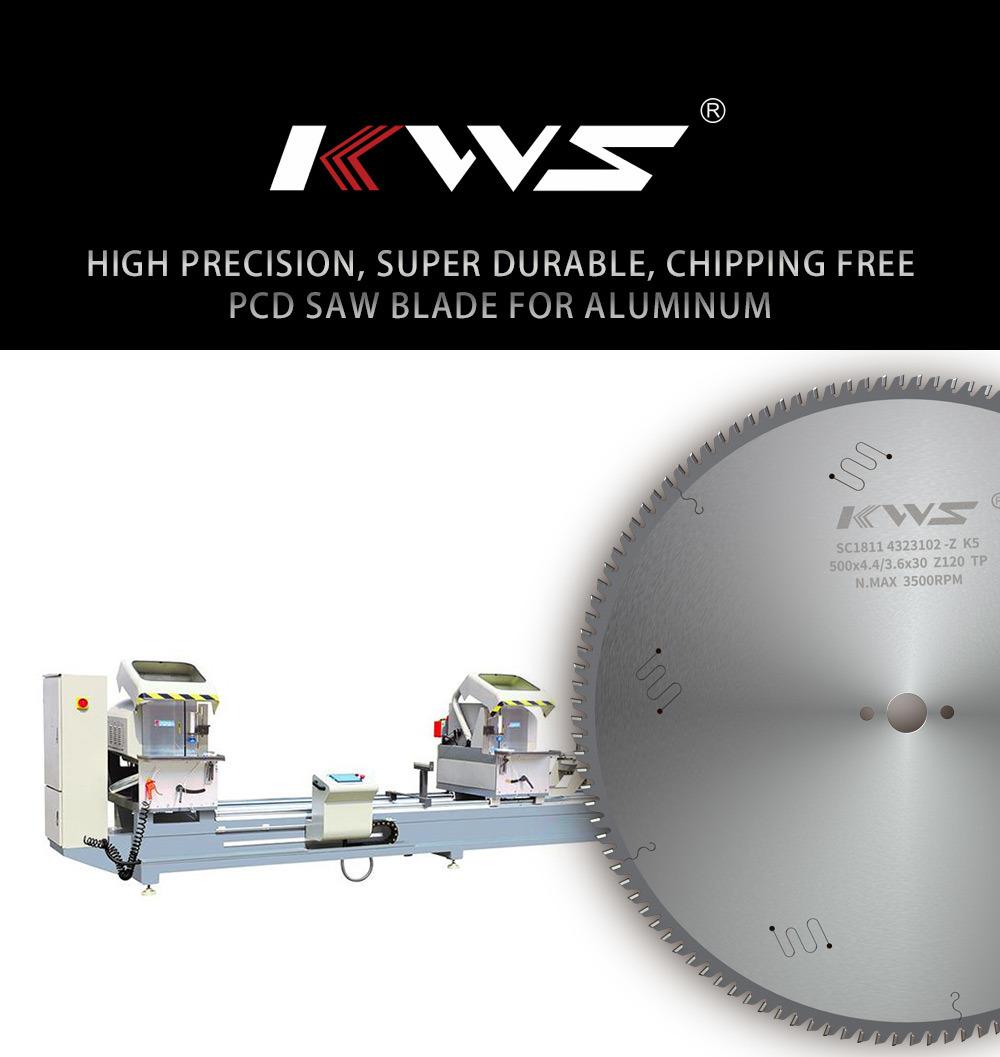

This product is typically developed to cut all kinds of aluminium material. such as aluminum windows, aluminum bar, aluminum section, aluminium profiles etc. Compare with tungsten carbide and steel circular saw blades, pcd saw blade are harder and significantly more durable, performing 30-50 times longer tool life, and this saves both time and money.
Machines: Double mitre saw, panel saw, cut-off saw and other CNC machines etc.
Application: Very accurate for 45 degree and 90 degree joint cut. Particularly welcomed on aluminum window or doors producers.

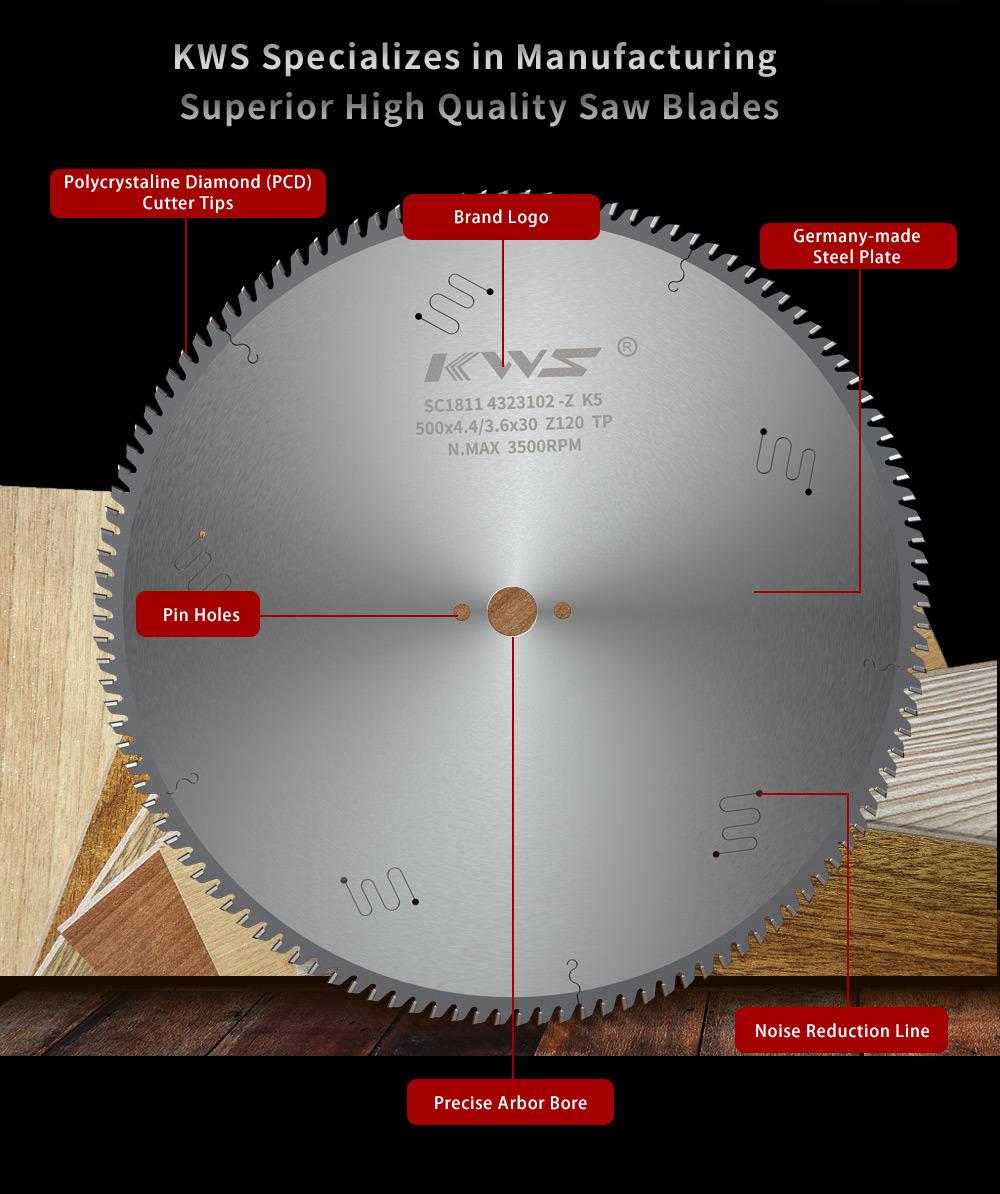

Technical information: Triple flat tipped plus more diamond tips ensure the finish cut without any burs.
Note: Cooling system appied if necessary will be highly appreciated. Timely clean the machine and blades also necessary if requires a high end cut.


ADVANTAGES

1. The cutting tips are very sharp and strong.
2. Small cutting grooving and high precision.
3. Good heat dissipation so that the body and the cutting tips of blades are effectively protected.
4. Big cutting depth, wearable, long service life.
5. Comparing with the normal carbide saw blade, PCD saw blade can get much higher production efficiency and reduce the production cost obviously.

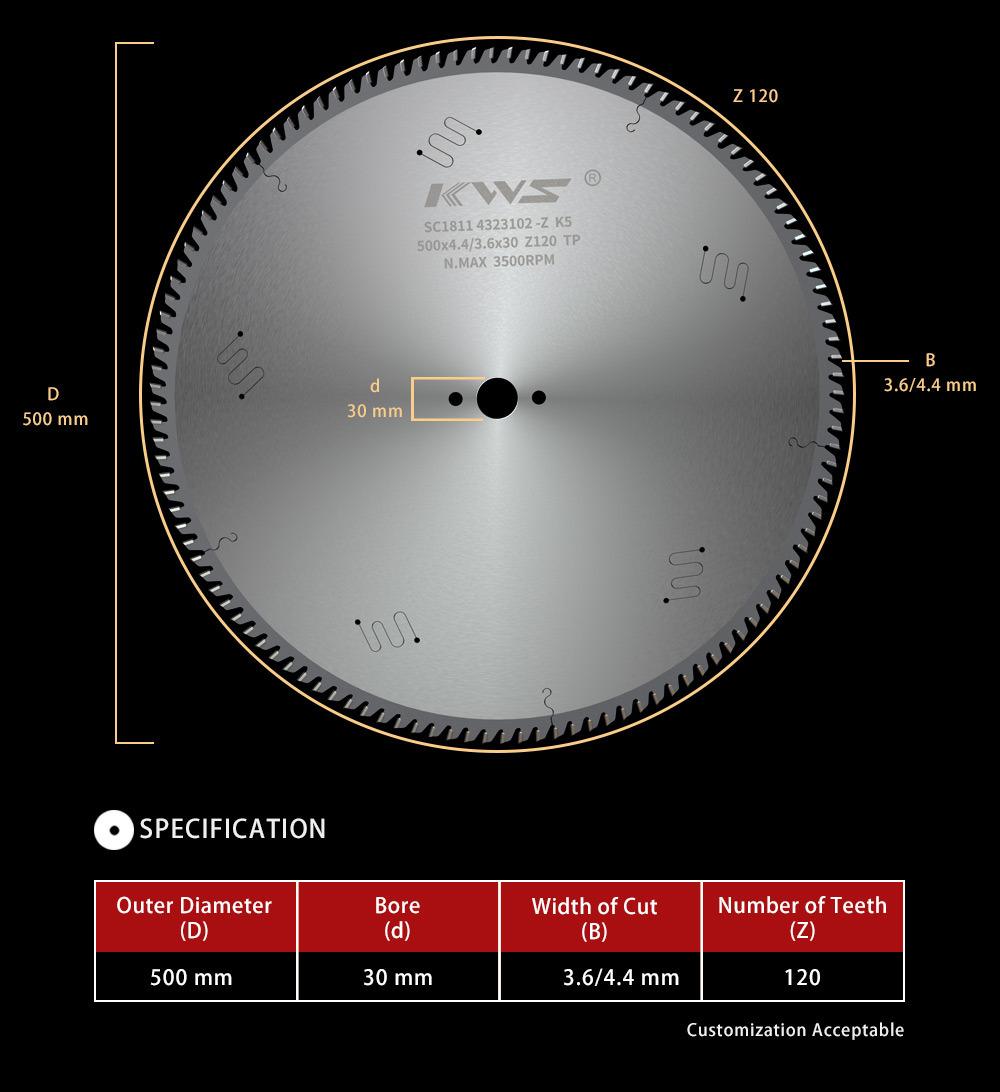

PRODUCT SIZES


No.	Diameter	Bore	Thickness	Teeth	Teeth Feature
1	450	30	4.0	120	TCG
2	500	30	4.4	120	TCG
3	500	32	4.4	120	TCG
4	500	80	4.4	120	TCG
5	550	30	4.4	120	TCG
6	600	30	4.8	144	TCG
7	600	38	4.8	144	TCG

ΔIf you need any other size, we can make that for your as your requirements.
