Soft and Hard PVC Plastic Profile Production Line for Refrigerator
Huzhou Golden Industrial Brush Co., Ltd.Base Info
Description
Screw and barrelScrew diameter Φ50mm Zhoushan, Zhejiang
Material
38CrMoALA,
deeply nitrading processing Screw valid length 1400 mm Screw number 1 Barrel heating power 9KW Barrel wind-cooling power 180W ×3 Nitriding depth 0.40-0.70mm Nitriding rigi
dity (HV) 890-980 surface roughness (mm) Ra0.8-Ra1.6 Linearity ≤0.015 Output 40-60kg/h Heating type and material Electric Heating by Aluminum ring Raw material ABS granules Reduction driver Reduction gear Hard teeth Jiangyin, China Driver motor Power 15 KW Plastic machine special used
Main machineFeeding type Automatic dryer & loader Center height 1000mm
(match with mould) Contact type of Die and mould Contact by bolts in the type of flange Total power ≈20 KW
Electrical parts

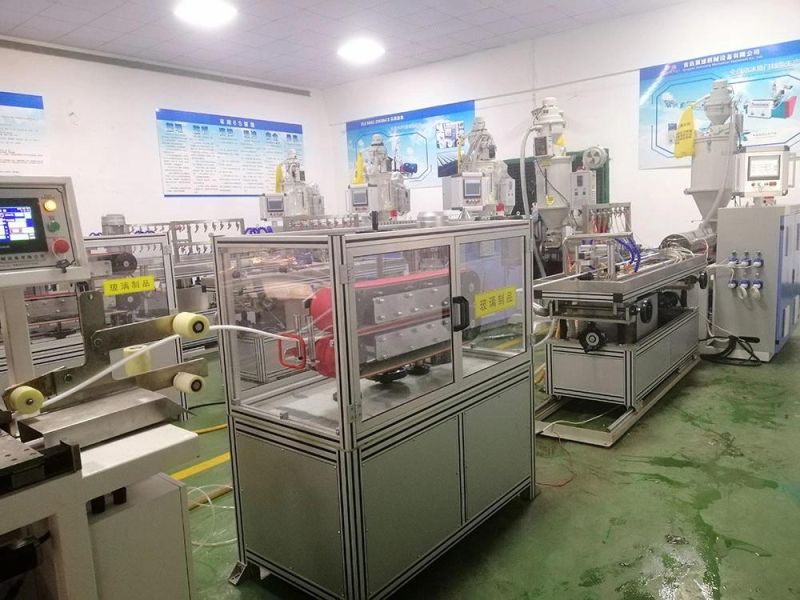

Production line show:
Contact information:
Material
38CrMoALA,
deeply nitrading processing
dity (HV)
Main machine
(match with mould)
Electrical parts
| Items | Brand | Number |
| PLC | SIEMENS | 1 |
| Frequency converter | ABB | 1 |
| Contactor | SIEMENS | 9 |
| Current meter | CHINT | 7 |
| Volt meter | CHINT | 1 |
| Overload circuit breaker | SIEMENS | 1 |

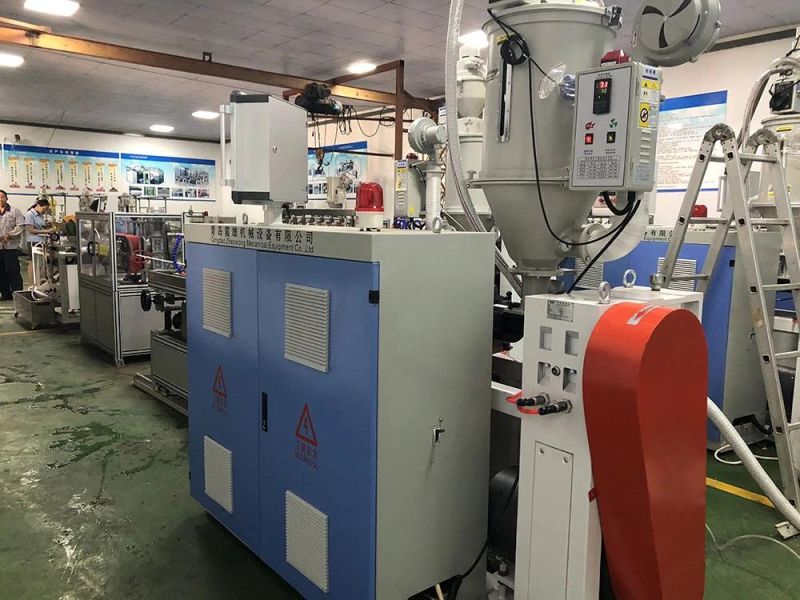

Production line show:
Contact information:
