Basic Info.

Model NO. GSZ Customized Customized Condition New Name Foamed Plate Production Line Machine Type Foamed Plate Raw Material PVC Color Customized Motor Famous Brand Contractor Famous Brand Inverter Famous Brand Transport Package Gpm Standard Trademark GPM Origin China Shanghai HS Code 8477209000 Production Capacity 40

Product Description

Applicable raw materials:UPVC

Technical specification

Model                          GYF1220-A                  GYF1220-B                  GYF1500-C

Extruder                      GSZ80/156                 GSZ80/173                 GSZ92/188

Max.output(kg/h)         350                             600                             650

Die width(mm)             1320                           1320                           1550

Production width(mm)  1220                           1220                          1400

Power(kw)                    146                             170                            205

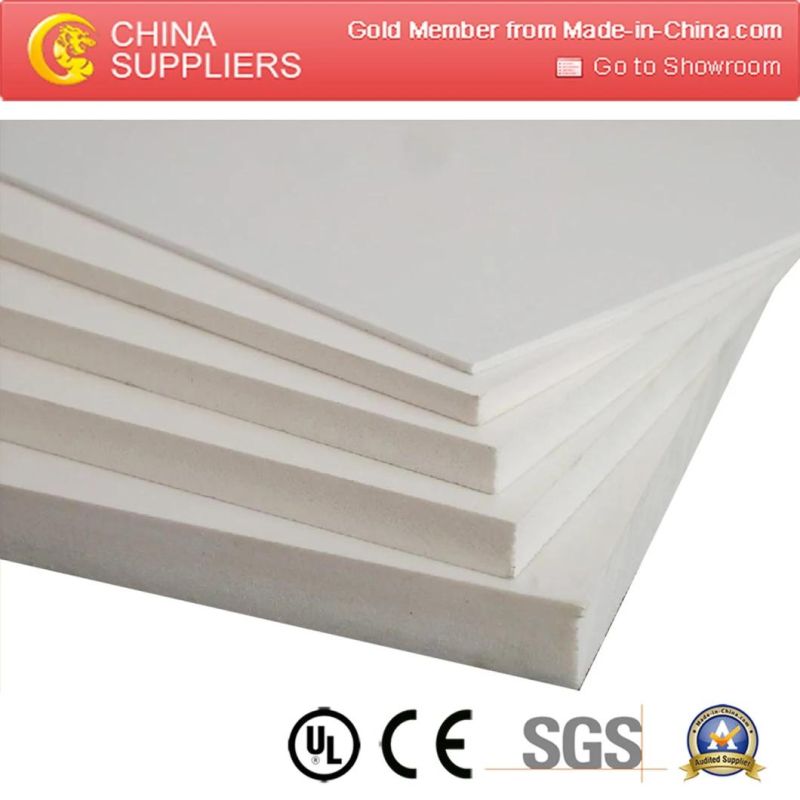

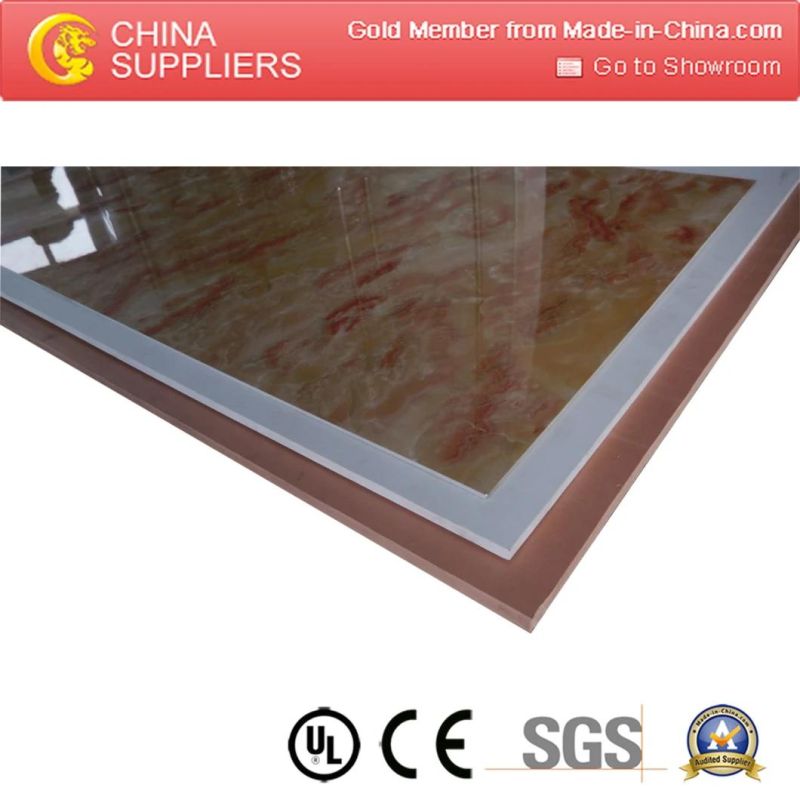

1,Wood- plastic mould plate, resembling wood in appearance, is more fixed in size than wood without cracks, curls, protu  berances, and cross grains, It has the features of better physical and chemical property, to ensure higher density and  longer service life.

2,Wood- plastic mould plate can be reproduced like wood. It can be cut, planed, madea bond by glue or fastened with nalis  or screws. It's easy  to maintain.

3,Preserved from acid, alkali, corrosion, impervious to attacks by insects and rats, wood- plastic mould plates provide less moisture absorption.

4,The product can be recycled and degraded for environmental protection.
