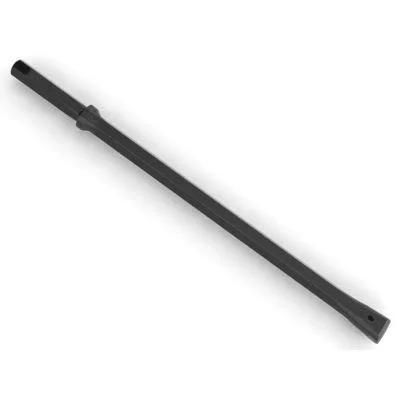

Chisel Bit Integral

Sen Yan Packaging Co., Ltd.

Certification：ISO 9001:2000
Standard：AISI
Surface Treatment：Polishing
Manufacturing Process：Forging
Transport Package：Carton
Specification：22*108MM

Base Info

Model NO.：5H22-341810-0800-40-2
Trademark：FANXI
Origin：China
HS Code：8207509000
Production Capacity：5000pieces,Year

Description

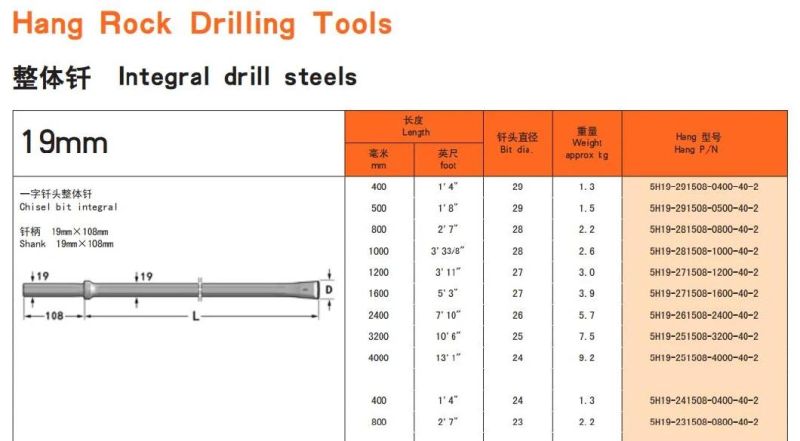

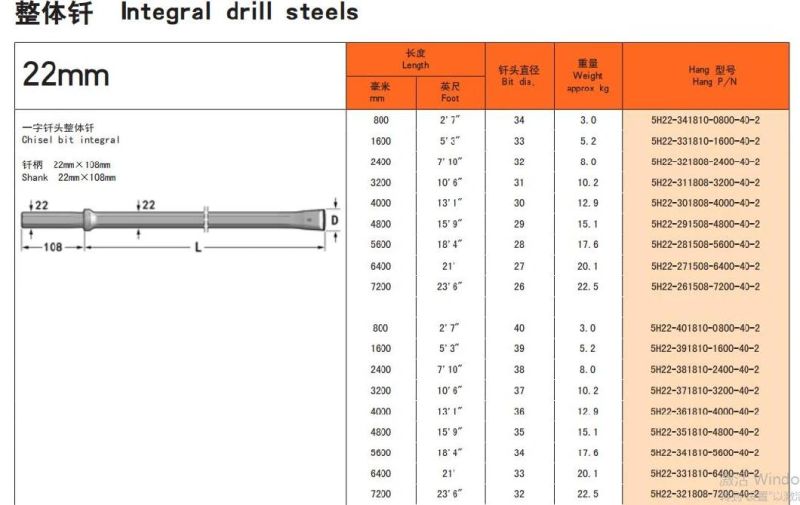

carbide drill rodsTypesTapered drill rods, Integral drill rods, Plug hole rodsApplication::Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drillingMaterial:High quality carbide and high quality steelMOQ:No requirement for testing and trial orderWe can produce as your request of carbide size, different length of drill rods.Types of drill rodsSpecificationsLength (mm)ShankWeight (kg)Tapered drill rodsTaper Angle: 4, 6, 7, 11, 12 degree400mm to 8000mmHex22mm*108mm Hex25mm*159mm Hex19mm*108mm1.7 - 24.9Integral drill steelBit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm400mm to 4800mm3 - 15.4Plug hole rodsChisel bit diameter: 17mm, 20mm, 22mm150mm to 710mm0.6 - 2.9

China Shank Drill Integral Drilling Chisel Bit

China Shank Drill Integral Drilling Chisel Bit

China Shank Drill Integral Drilling Chisel Bit

Chisel Bit Integral

Chisel Bit Integral

Chisel Bit Integral

Chisel Bit Integral

Chisel Bit Integral

Chisel Bit Integral
