Bottle type specification

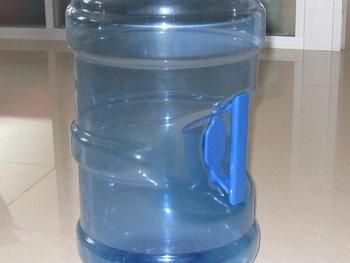

 cavity1theory output (PCS/HR)800-1000 Max. volume (L)20LBottle mouth maximum overall diameter (mm)150mmBottle biggest diameter350mmBottle maximum height550mm
Power specifications
 Light tube quantity48pcsLight tube power1.5kwMaximum heating power72kwAll electric machine installation75kwActual consumption37.5kw
Air pressure specification
 Work pressure7-9kg/cm2Low-pressure gas consumption1600Ltr/minBlow bottle pressure25-35kg/cm2Higher -pressure gas consumption2000-3000 Ltr/min
Frozen water specification
 Work pressure5-6 kg/cm2Temperature range10Consumption12000kcal/hrFrozen water flow88Ltr/minMachine specificationSize of the machine5.2x2.0x2.0 (m)Weight of the machine6ton

After-sales service

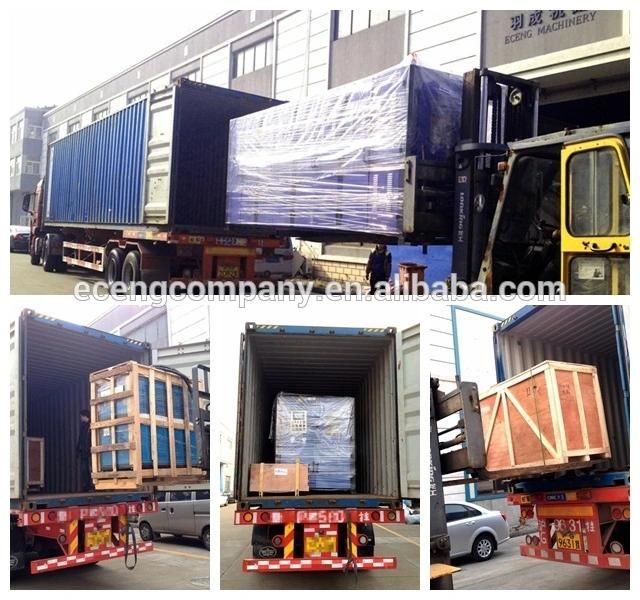

1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get  the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

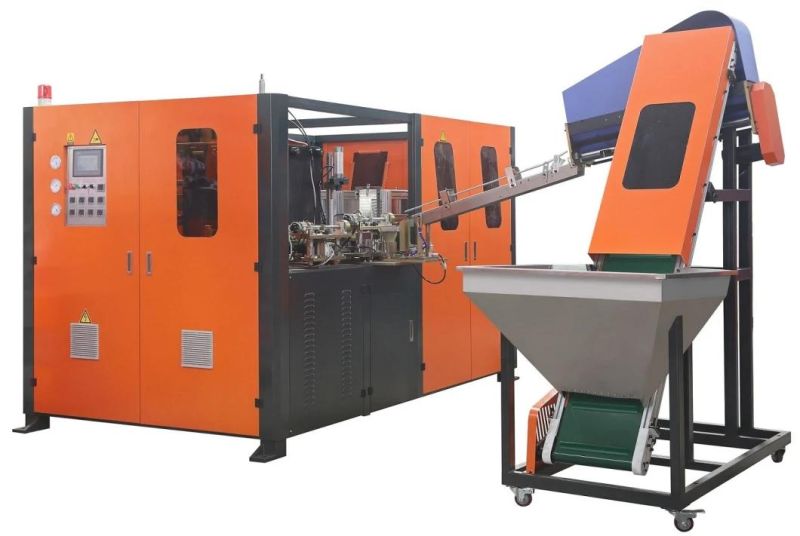

Machine
