Basic Info.

Model NO. HYD 500 Model Number 400 mm / 500 mm / 600 mm Output 200 - 600 Kg/H Transport Package Wood Box Packing Specification 400 mm / 500 mm / 600 mm Trademark HYD Origin Qingdao, China HS Code 84772090 Production Capacity 200-600 Kg/H

Product Description

PE/PP/PVC/ WPC grinding machine / pulverizer

PVC / WPC pulverlizer / grinder/ miller/milling machine

PVC pipe grider / miller/milling machine/pulverlizer

UPVC window profile grinder/pulverlizer  / miller / milling machine

PVC/WPC pulverlizer /PVC miller/PVC milling machine

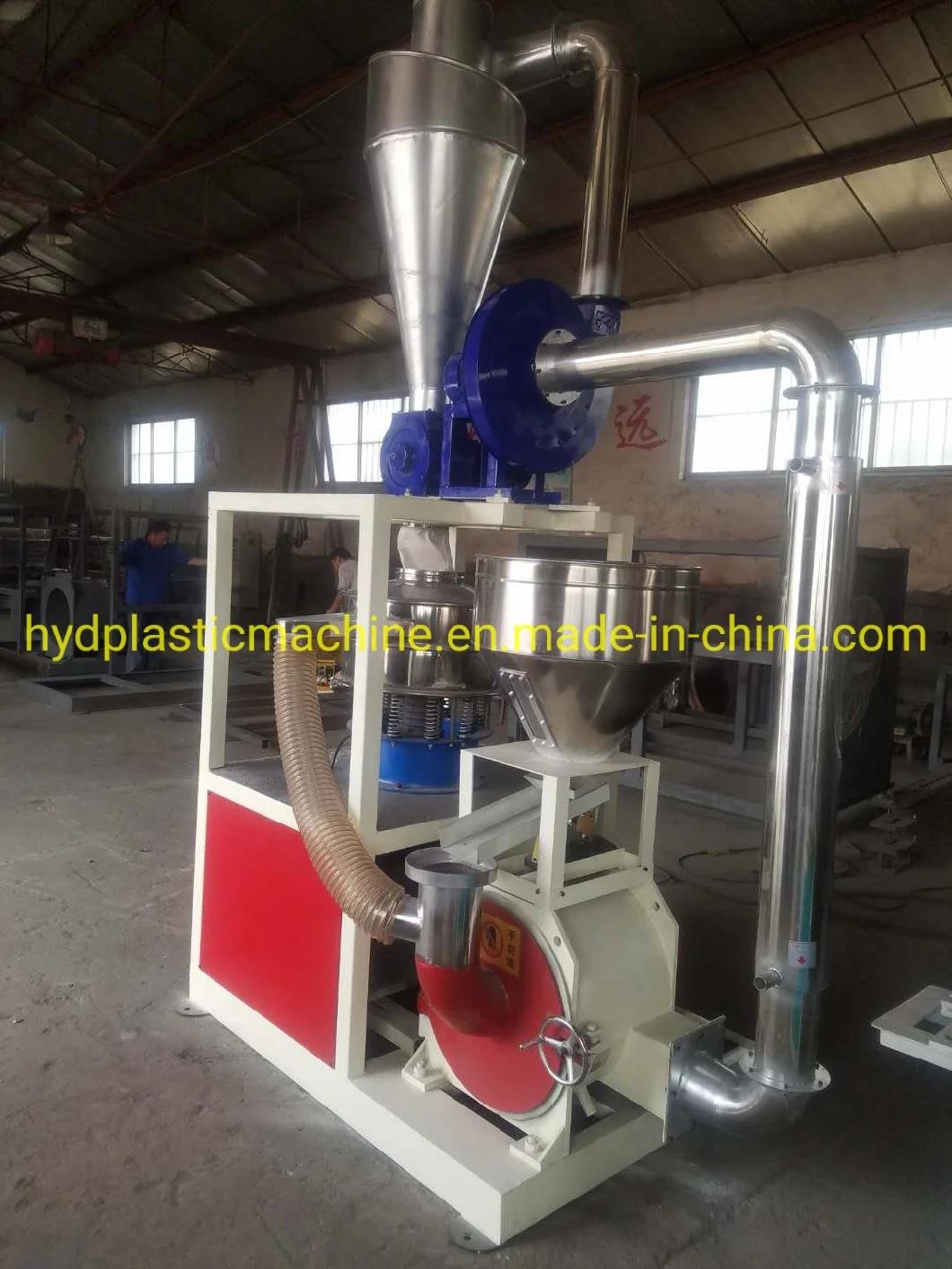

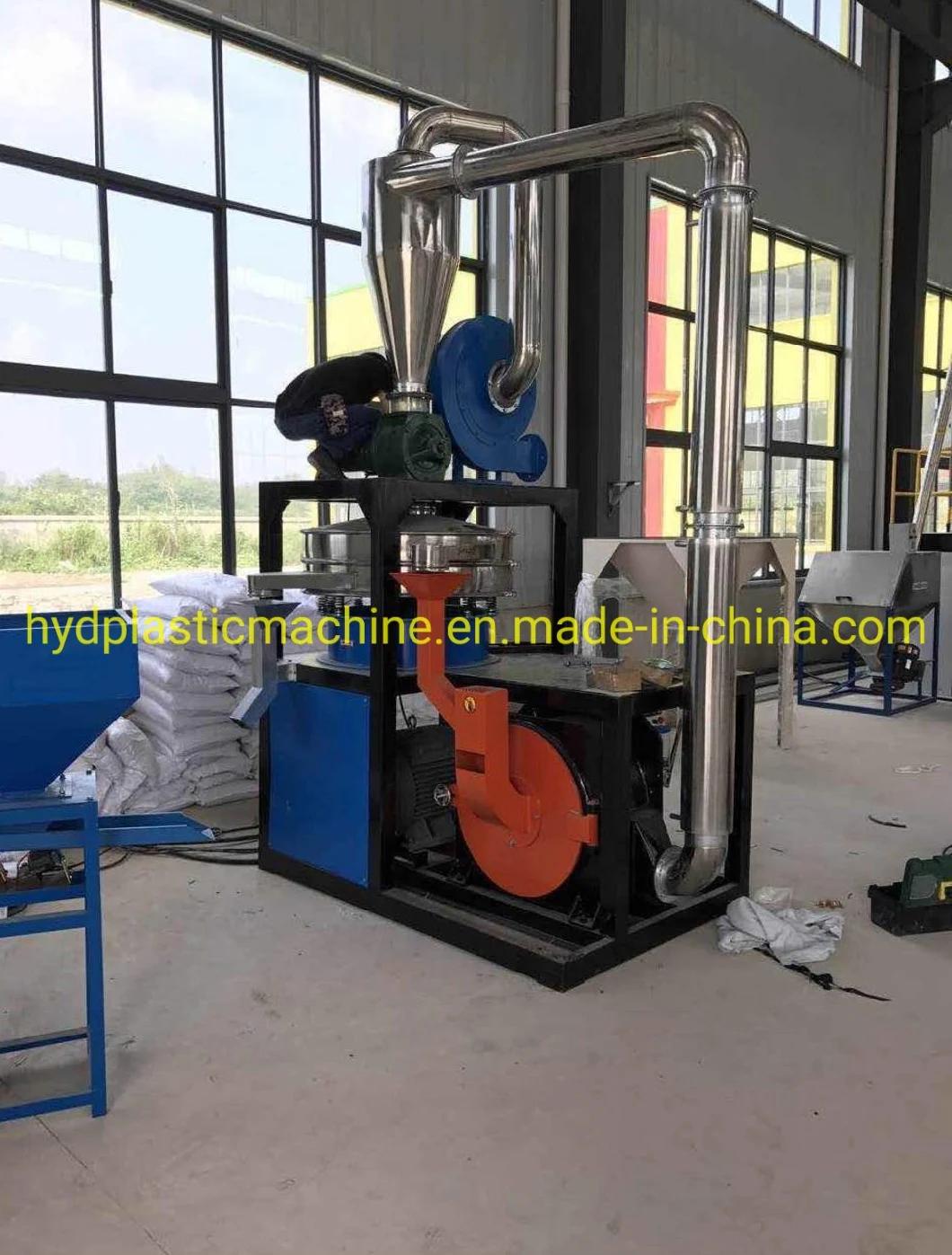

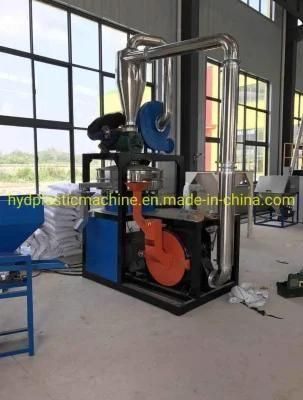

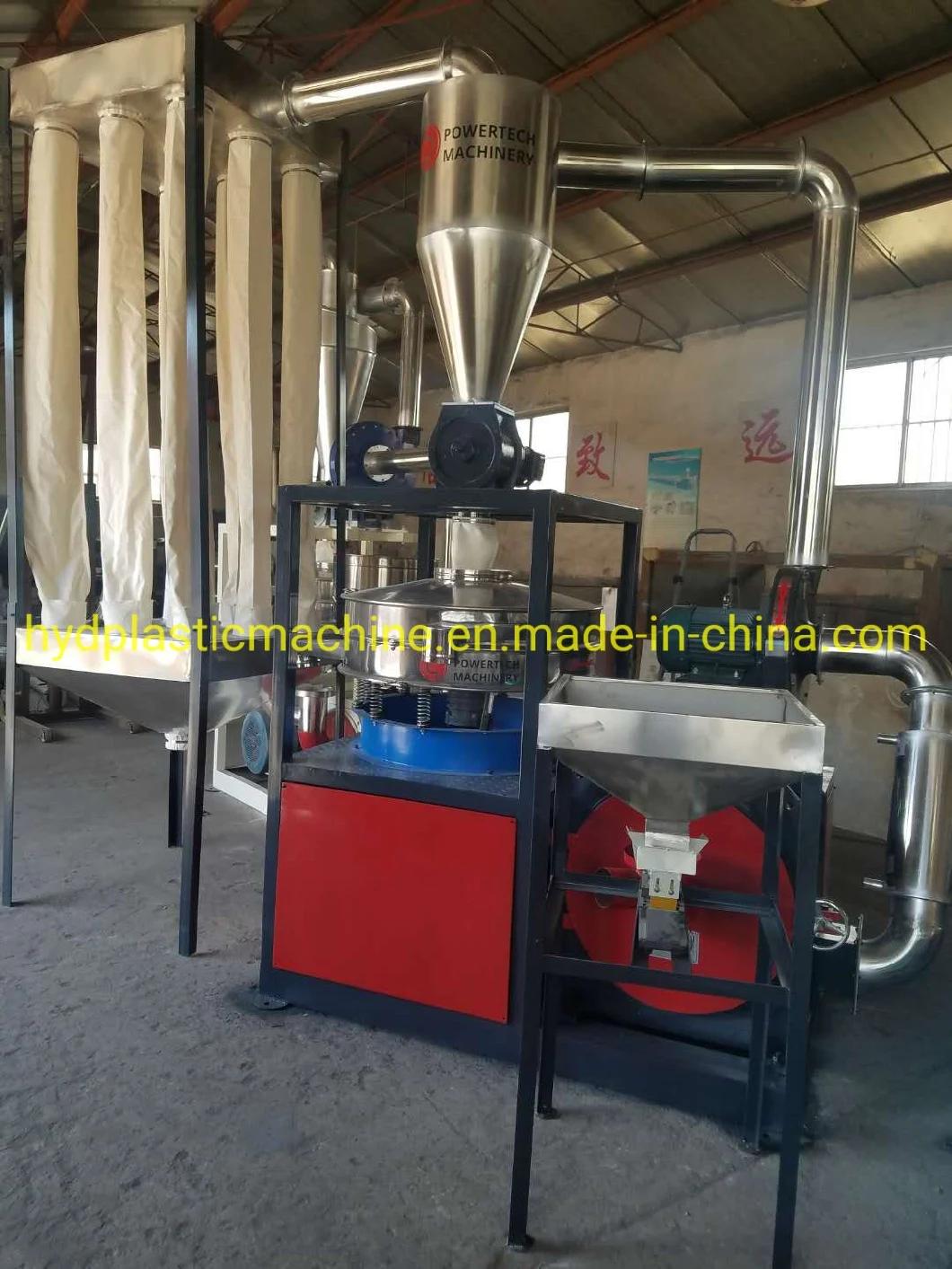

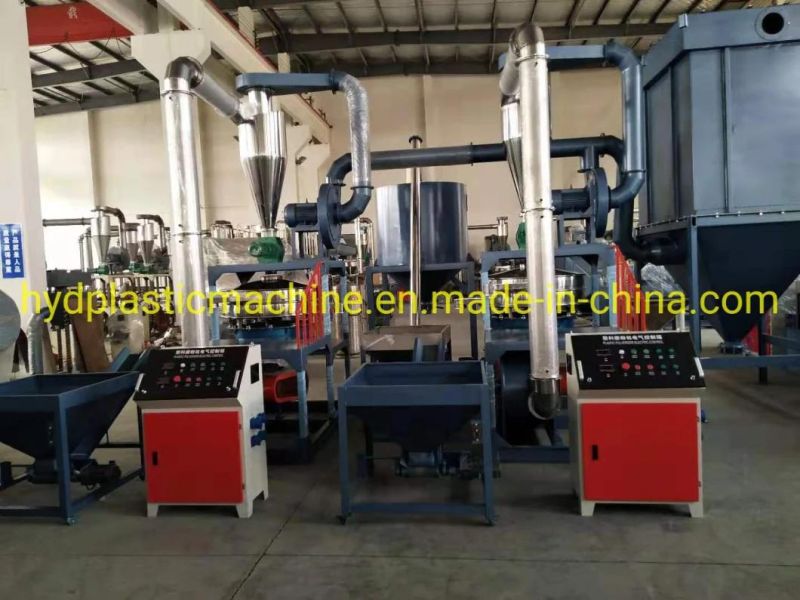

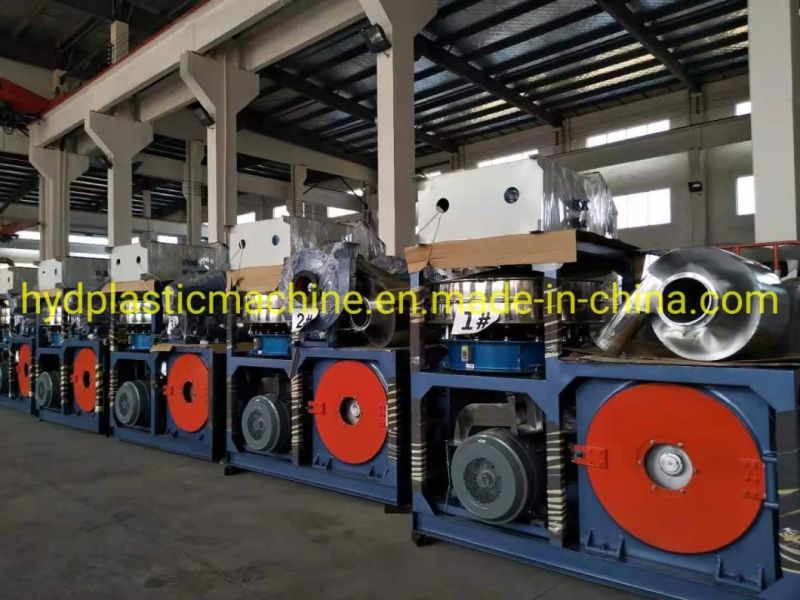

           PVC miller   (model:500)
Blade disk:           one piece, diameter of 483mm
Fixed blade:           12 pieces.
Rotating blade:       24 pieces.
Blade material:       High quality alloy steel,55-58 hardness
Main power:          37 kw, 2950r/min. (wuxi Yalu brand)
Fan blower:           4kw.
Airlock:                 0.75kw,  to stop the material come out to air.

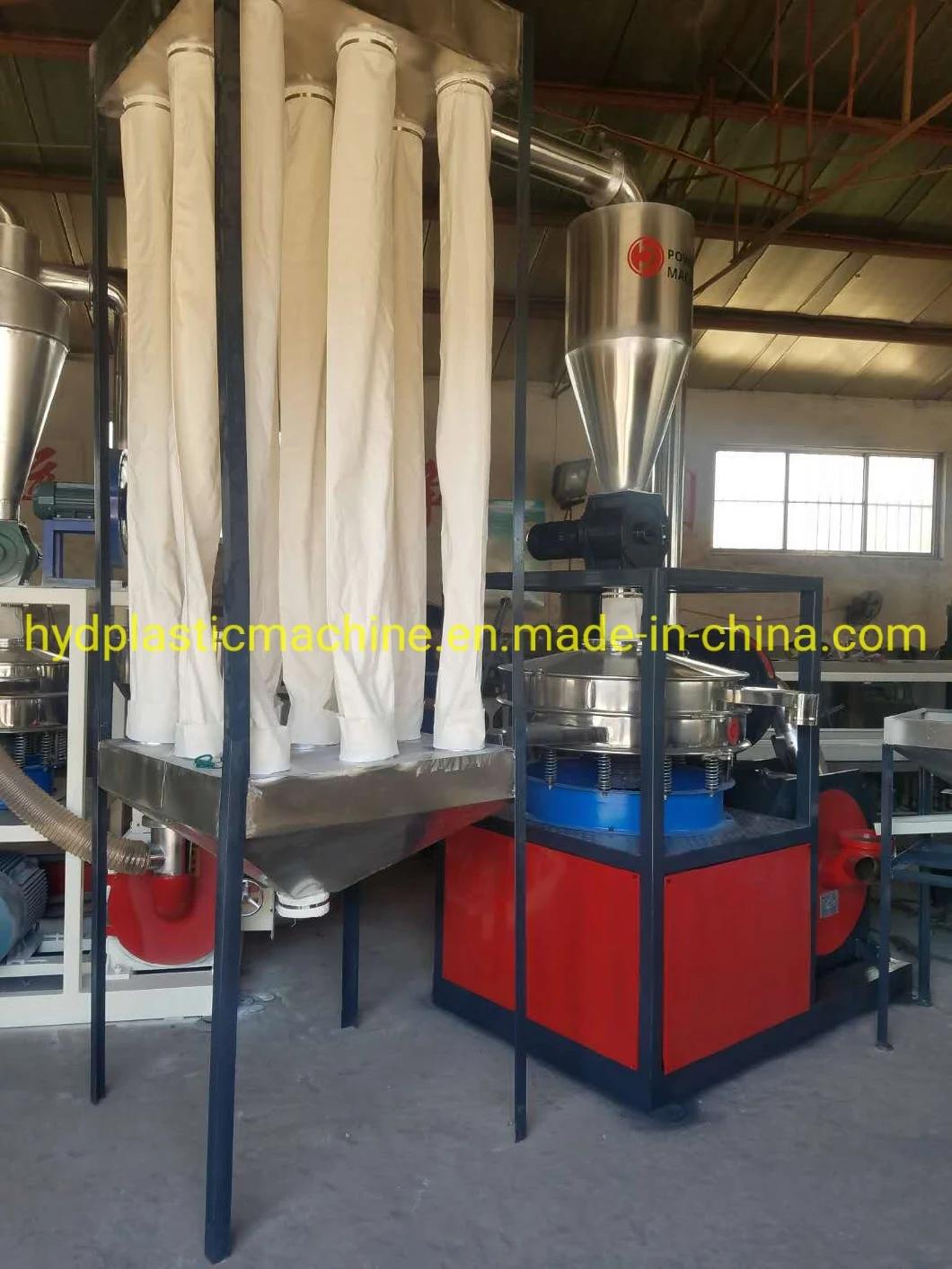

Powder collector with steel pipe:      1 set
Axle:                            NSK
Vibration screen:                  1 set
Dust collector:                   1 set   (9 holes)
Control panel:                   1 unit
Size of powder:                  20-40 mesh
Capacity:            350kg/h.
