• Model NO.：Capicity: 0.5Ton to 4Tons ,H
• Application：Milk, Yogurt, Cheese, Dairy, Milk, Juice, Beverage
• Customized：Accept
• Name：High Pressure Homogenizer Juice Homogenizer Milk H
• Product Material：Food Grade Stainless Steel 304,316
• Motor：Siemens ,ABB ,China Brand
• Usage：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Homogenizer Certificate：CE Certificate
• High Pressure Homogenizer：Customized Electricity Motor
• Homogenizersize：Depending The Capacity
• Packing：Wooden Box
• Spare Parts：Available
• MOQ：1set
• OEM：Yes
• Pressure Stage：Two
• Cooling：Tap Water
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

             Model No.
Technical
parameter
KQ0.5-25
KQ1-25
KQ1.5-25
KQ2-25
KQ2.5-25GJB3000-25
KQ3-25
KQ5-25Rated pressure(MPa)25252525252525Rated flow(Liters/H)500100015002000250030005000Medium temperature(ºC)≤85≤85≤85≤85≤85≤85≤85Feeding pipe diameter(mm)25252525253240Discharge pipe diameter(mm)15152020202025Power of motor(Kw)5.57.5111518.52245
 Volt and Electricity Flow380V,50HZ,3PH380V,50HZ,3PH380V,50HZ380V,50HZ220V,60HZ,3PH380V,50HZ380V,50HZOutline dimension (m)
Length * width * height1.16×0.9×1.241.16×0.9×1.24
 1.16×0.9×1.24
 1.4×1.1×1.421.4×1.1×1.421.4×1.1×1.422.2×1.45×1.1
 Weight(Tons)0.40.51.251.251.251.251.7Unit price FOB Shanghai(USD)USD$USD$USD$USD$USD$USD$USD$Unit price CNF




Tea drinks homogenizer,  juice homogenizer
homogenizer pumps

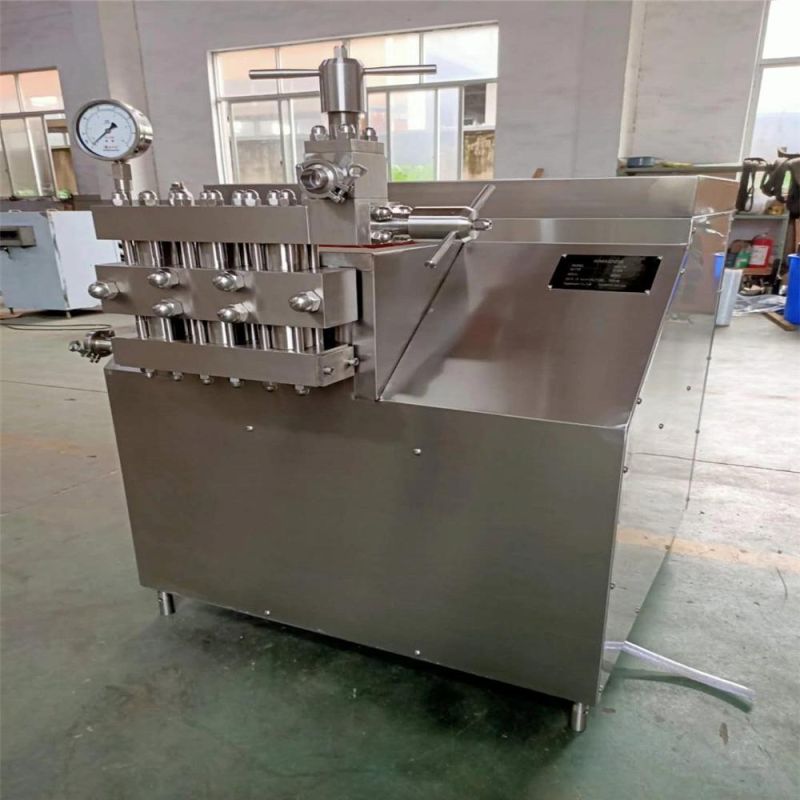

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
High Speed Homogenizer (CE Approved)
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )  High Speed Homogenizer Mixer (CE Approved) Pricelist available
High Pressure Homogenizer Juice Homogenizer Milk Homogenizer Yogurt Homogenizer .
