• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：Fiber Laser Marking Machine
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification Fiber Laser Marking Machine Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

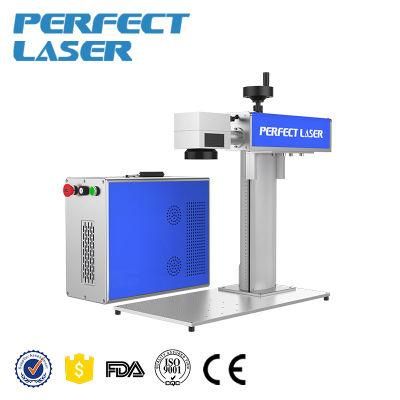

  Compact Design EZCAD System Aluminum Plastic Fiber laser marking machine

1. Small size, low weight, easy to move and save your space.

2. Easy to operate, better to learn

3. Both can be used in metal and non metal material

4. Design from Morn, service for the whole world

5. 3  years warranty and lifetime technical support
 TECHNICAL  PARAMETER :

01	Model	MAN-F20/ MAN-F30
02	Laser power	Fiber 10W/20W air cooling
03	Working area	110*110mm
04	Laser Wavelength	1064nm
05	Response time	0.5ms
06	Frequency of pulse	20-100KHz
07	Max marking depth	≤0.4mm
08	Marking speed	≤7000mm/s
09	Marking lines	1-10 lines(in the marking area)
010	Minimum line width	0.1mm
011	Minimum character	0.15mm
012	Repeatability accuracy	±0.002mm
013	Resolution ratio	0.1mm
014	Marking content	Text,pattern,date,bar code,etc
015	Operation system	Microsoft Windows XP or Windows 2000
016	Control software	EZCAD control software
017	Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
018	Unit power	≤1.2KW
019	Operation temperature	5°C-40°C
020	Relative moisture	≤ 90%,no fog
021	Supply Voltage	220V/50Hz/10A

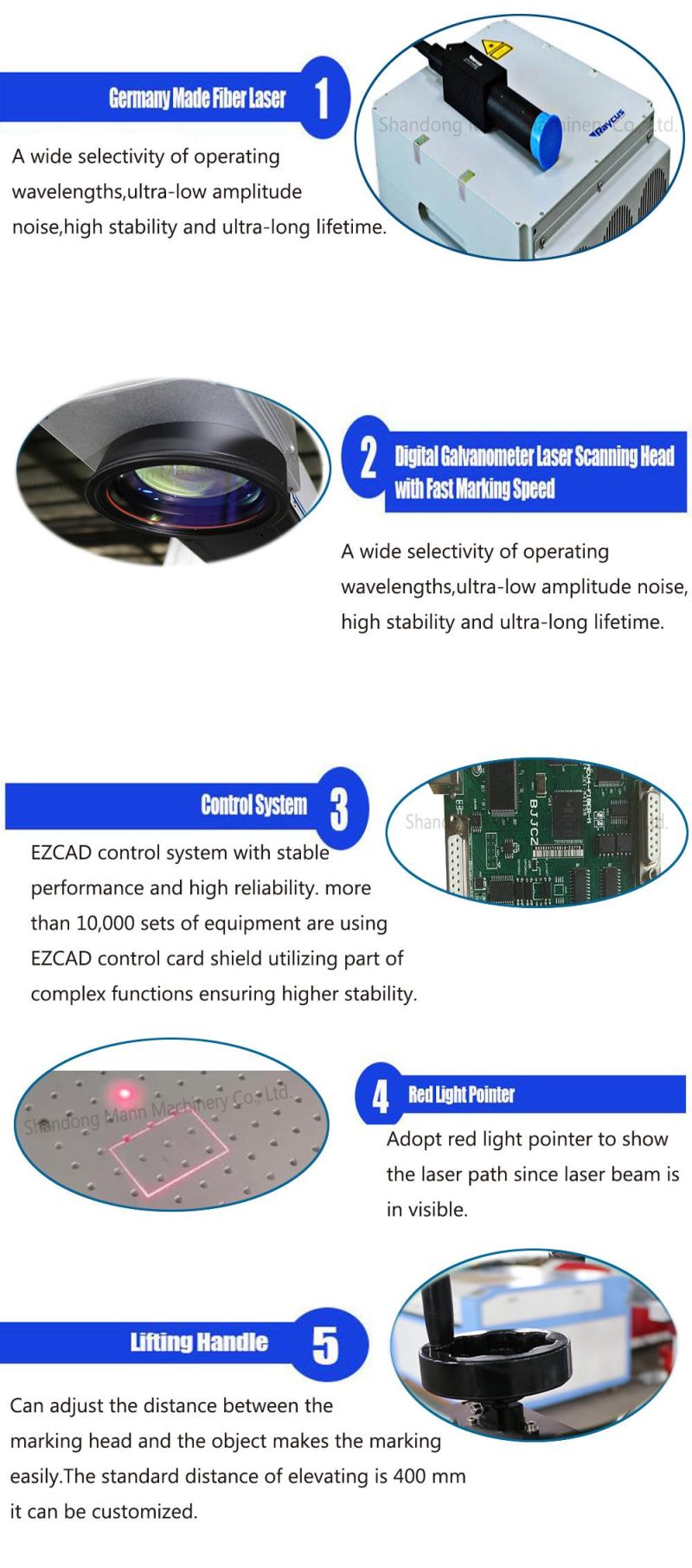

  DETAILS   IMAGES :

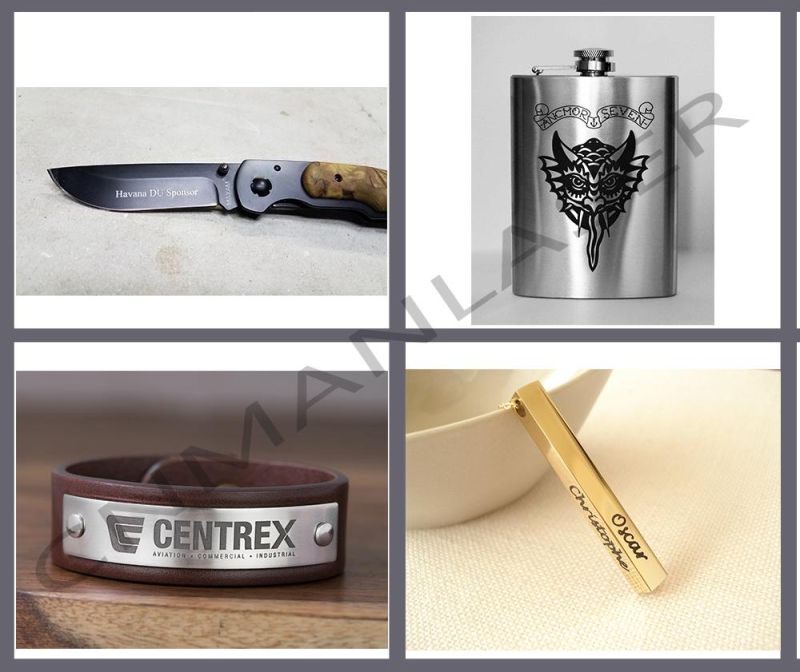

SAMPLE SHOW :

Applicable Materials:

Many type of metals: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass, etc

Alloy and metal oxides: Anodized Aluminum  Some non-metallic materials & Special surface treatment: silicon wafer, ceramics, plastic, rubber, epoxy

resin, ABS, Printing ink, Plating, Spraying, Coating film.

Applicable Industries:

Electrical Engineering and Electrical part and component

Mobile (Cover, battery, keyboard, I Phone Case)

Jewellery (Ring, necklace, bracelet),eyeglass, clocks and craft

Building materials, PVC pipe

Car motor car spare part

Insturment and meters and cutting tool

plastic case

hardware fitting and accessory

sanitary appliance

food and beverage

Medicine package and medical instrument

Solar Pv industry



  PACKAGING &  SHIPPING :
1. We can ship. air or land to your city, it is according to your location, and machine packing size.

And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to your near port, different port the time is different.



SERVICES :

Installation Service

Installation Services are available with all machines. We dispatch technician to customer's factory for installation and preoperation of machines.

Training Service

Our technician is available to your factory and offer training of how to use our machines.

As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making).

We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test.

After making sure machine is the best performance, then make shipments.

Machine warranty is 3 years. We offer flexible extended warranties if needed.
