• Model NO.：UG-1390FL
• Cooling System：Water Cooling
• Technical Class：Fiber Laser
• Applicable Material：Metal
• Structure Type：Lathe Type
• Laser Classification：Fiber Laser
• Laser Technology：Laser Control Fault Cutting
• Total Working Area：1300*900mm
• Laser Type：Fiber Laser Source
• Laser Power：1500W( Max,Raycus)
• Working Table：Strong Tooth Type Cutting Blade Table
• Laser Head：Raytools, Auto Focusing, Bmh1100
• Driver and Motor Type：Delta Taiwan FUJI Japan 850W Servo Motor Driver
• Guide Rail：Linear Square Guide Rail, Hiwin, Taiwan
• Transmission Type：Helical Rack and Pinion Transmission, Yyc, Taiwan
• Control System：Cypcut 2000c with Handwheel
• Computer：Industrial CPU+ Moving Bracket
• Industrial Chiller：Cwfl-1500 (Teyu, S&a)
• Proportional Valve：SMC Japan
• Lubrication：Auto
• Transport Package：Plywood Case
• Specification：2600*2280*2280mm, 1500kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：8456110090
• Production Capacity：100set Per Month
• Package size per unit product：260.00cm * 228.00cm * 228.00cm
• Gross weight per unit product：1500.000kg

2.High-rigidity heavy chassis,reducing the vibration generatedduring high-speed cutting greatly. High-performance  vaiation aluminium crossbeam,after finite element analysis,realizes highly accelerated circular arc cutting speed.

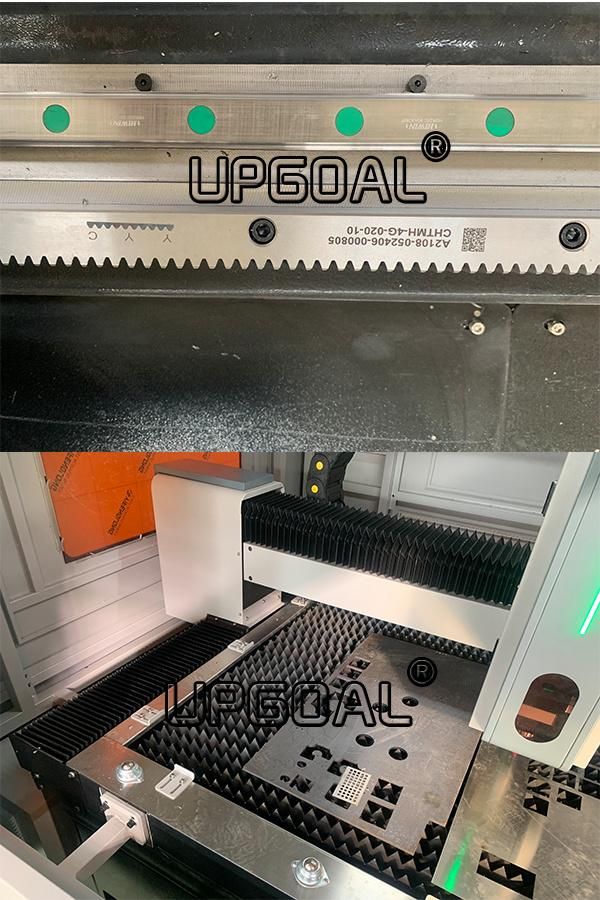

3.Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the production efficiency.

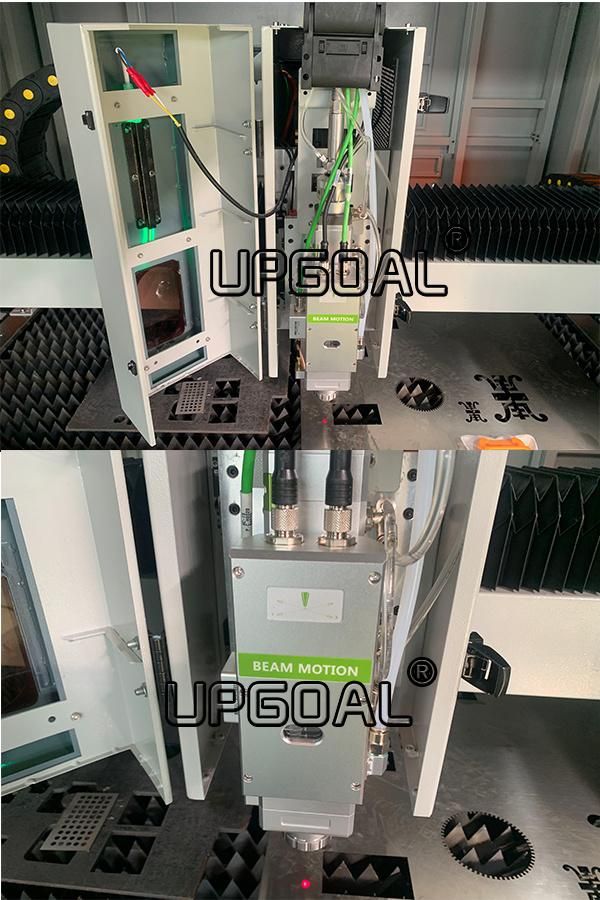

4.The famous RAYTools BMH110 auto focusing fiber laser cutting head  does not come into contact with the surface of the material and does not scratch the workpiece.

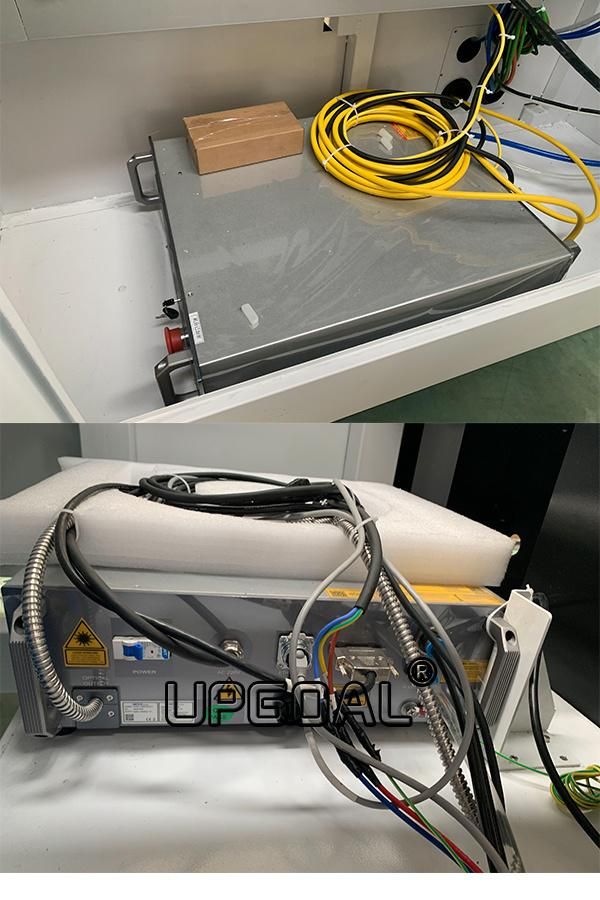

5.  Adopted stable RAYCUS/MAX brand 1500W  fiber laser source, photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.

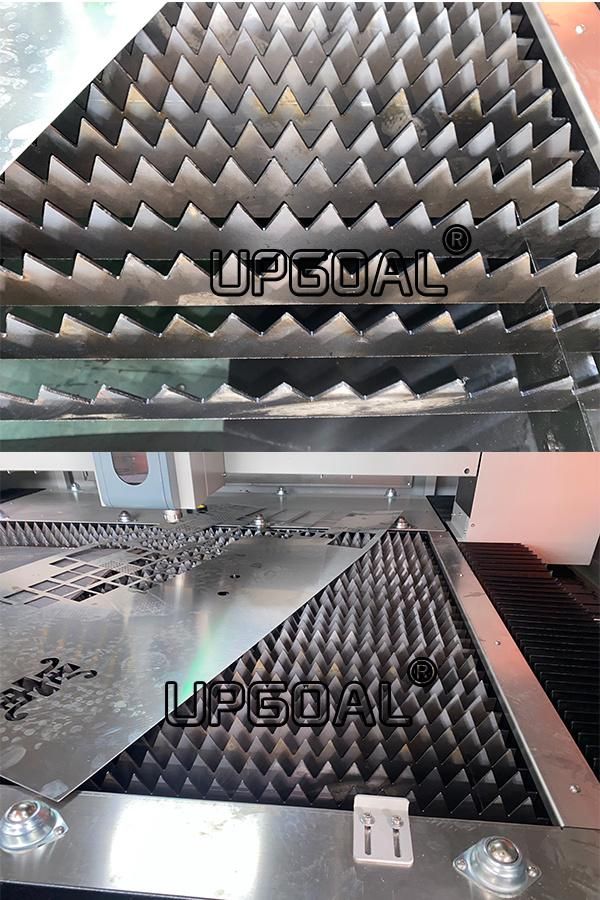

6.  With strong tooth type cutting blade table, can stand more thickness sheet , and ensure cutting performance, equipped with feeding wheels is convenient to load materials.

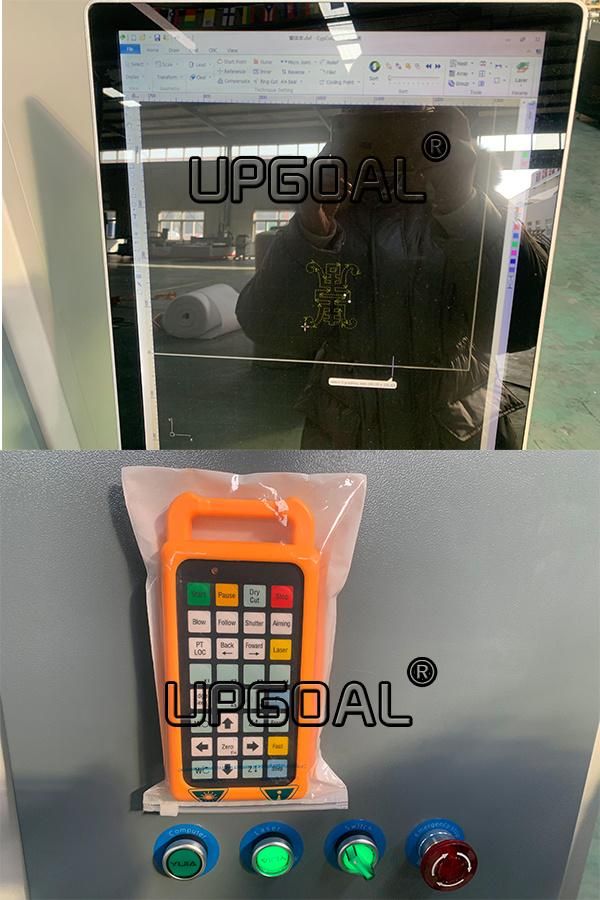

7. The CypCut 2000C control system is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.

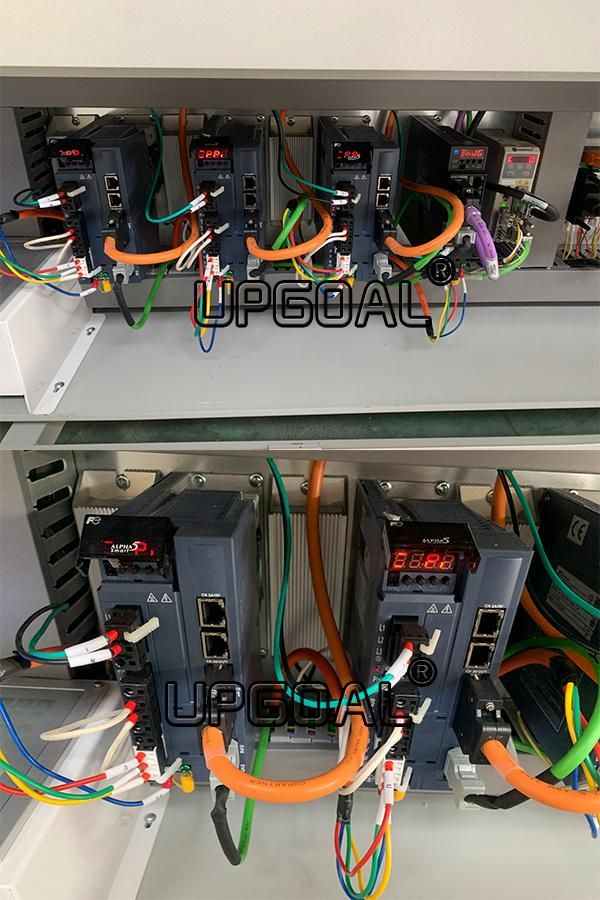

8. Adopted Fuji Japan850W & 400W servo motor and driver for machine, the servo motor with SHIMPO reducer,  more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

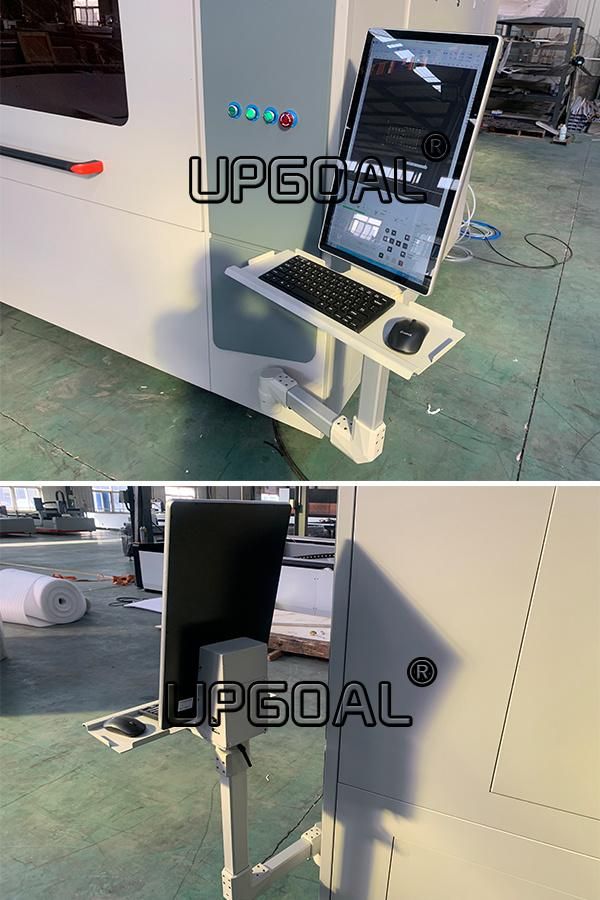

9. Industrial CPU with moving bracelet, very convenient to operate

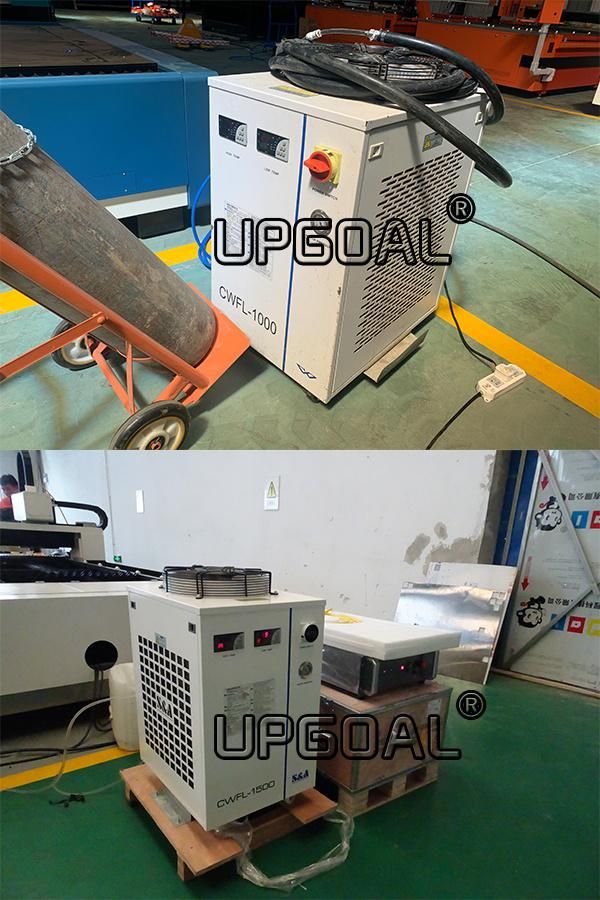

10. S&A Teyu Industrial chiller CWUL-1000/CWUL-1500, ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.

11.  Adopted SMC Japan proportional valve, improve cutting accuracy.

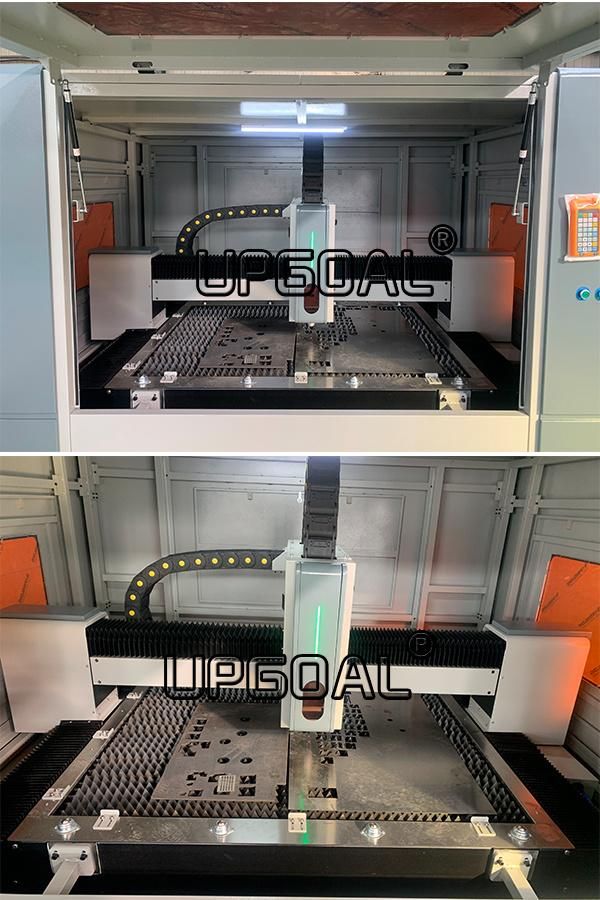

12. Open worktable, simple operation and small space eccupation.

13.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

14. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

15.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

16. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.

Technical Parameters


Reference Sample Photos

Reference Working Videos

https://youtu.be/3pqoRRKigxQ




                                           For more information, just feel free to contact us!
