• Model NO.：TSXM-30
• Contol System：Manual&Automatic
• Name：Drum Brush Peeling Washing Machine
• Feature：Easy Operation
• Washing Type：Brush and Spray Water
• Usage：Vegetable and Fruit Washing
• Transport Package：According to Customer Requirement
• Specification：3000*1100*1550mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：200pieces,Year

Basic Info.

Model NO. TSXM-30 Contol System Manual&Automatic Name Drum Brush Peeling Washing Machine Feature Easy Operation Washing Type Brush and Spray Water Usage Vegetable and Fruit Washing Transport Package According to Customer Requirement Specification 3000*1100*1550mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 200pieces/Year

Product Description

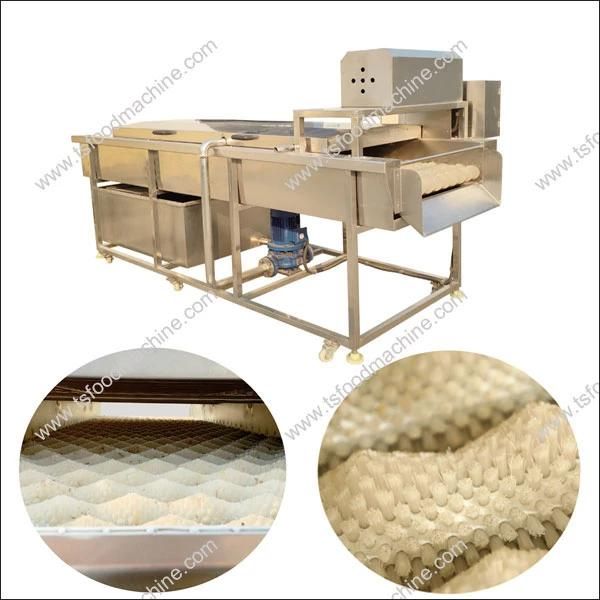

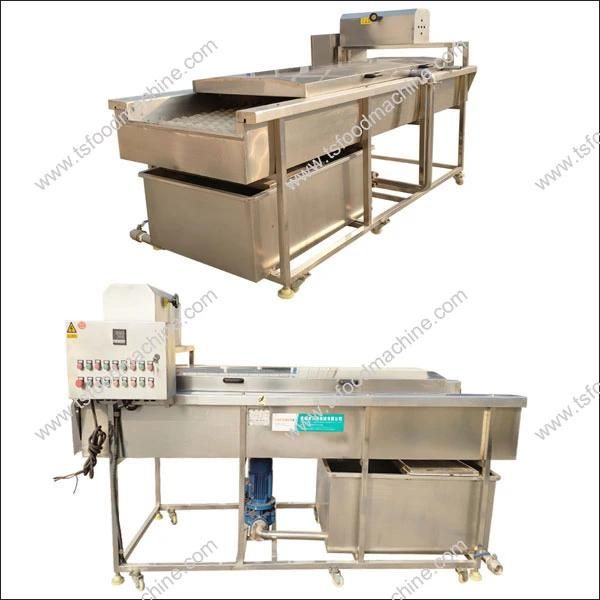

1.- Fruit And Vegetable Washing Cleaning Machine Cucumber Washer

Brush washer machine is also called vegetable and fruits washing&peeling machine. It is mainly used for roots fruits&vegetables, such as potato, taro, peanut, sweet potato, yam, ginger, onion, radish, apple, orange, kiwi fruit and other root and others. Also could be used for washing the shellfishes such as clam, scallop, rainbow, conch and other seafood, and so on.


Working principle:

It can be used to clean the impurities stuck on the materials by the rolling brush roller and the frictions between single materials, after that, washed by the water sprayed from the blow head equipped on the water tube.

Attention: If only need washing, use the soft hair brush roller, if need washing and peeling, you
should use rigid hair brush roller or sand roller.


Advantages:

After the materials are put into the washing machine, the brush roller rotates to brush the materials and make them turn over continuously, so as to achieve the effect of peeling and impurities cleaning. At the same time, the drainage pipe continuously sprays to wash off the dirt washed from the raw materials, so as to make the cleaning more thorough. In the process of cleaning, the impurities are brushed off, and the water flows into the reservoir at the bottom. The water in the reservoir can be recycled for spraying and washing.
The brush roller can effectively guarantee the product cleanliness and achieve the purpose of rapid and effective cleaning.
After cleaning, open the discharge door to discharge.







2.- Applications of Fruit And Vegetable Washing Cleaning
Machine Cucumber Washer

For washing the roots vegetables such as carrots, gingers, fresh potatoes, raddishes, and so on.
Also for cleaning roots fruit products.







3.- Technical Index of Fruit And Vegetable Washing Cleaning
Machine Cucumber Washer


No.	Item	Value
1	Model	TSXM-30
2	Overall Dimensions	3000*1100*1550mm
3	The Voltage	308V/50HZ
4	Power	3KW
5	Effective dimensions	2800*800mm
6	Output	300-500KGS/Hour



4.- Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	20-30 Working days.
Shipping Type	By sea, railway, etc.





5. - Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, includes:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Fruit drying machine,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food starching machine,
Vacuum packing machine,
Freeze dryer,
IQF freezing machine,
Complete production line, potato chips production line, french fries production line, plantain chips production line.


All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
