Basic Info.

Model NO. EK3-6E2 Computerized Computerized Certification CE, ISO9001:2008 Productivity 13824 Pairs Per 24hours Transport Package Container Specification ISO, CE Trademark KCLKA Origin Fujian, Jinjiang HS Code 84771090 Production Capacity 20 Sets/ Month

Product Description

Item	Unit	EK3-6E2
Work Station	station	6
Clamping Force	ton	180
Mold Plate Size	mm	(290*550)*2
Mold Height	mm	100-220
Mold-opening Stroke	mm	350
Injection System
Injector		2
Diameter of Screw	mm	Φ65
Injection Cap(Max)	cm³	995
Injection Pressure	kg/cm²	0-130
Injection  Speed	cm/sec	0-10
Rotating Speed of Screw	r.p.m	0-190
Temperature Control	section	4
Electricity Consumption
Heater Barrel	kw	9.8*2
Heating Plate	kw	76.8

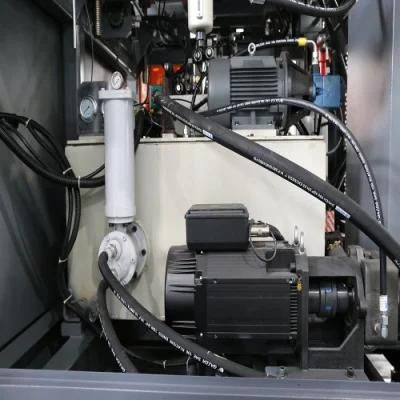

Hydraulic System	kw	51.9
Vacuum Pump	hp	1.5
Cooling Fan of Barrel	hp	1
Total Electricity	kw	148.3
Oil Tank Size	L	1000
Machine Weight	kg	26000
Machine Dimension	mm	8000*4500*3000

FAQ:
1.Which industries are widely used in of your machine?
Those are mainly used in making plastic bags,slippers, soles and so on. It is also used for traffic comprehension.
2.Do you also supply shoe mould?
NO, we just a machine manufacture, but we know a lot of mold factories with good quality and can make recommendations for you.
3.Do you also supply raw material?
No, we don't supply.
