1500-20000nm Manual Torque Amplifier Hand Force Multiplier
Hangzhou Bestsuppliers Foreign Trade Group Co., Ltd.- Type：Torque Wrench
- Material：Alloy Steel
- Standard：American Type, Metric, British, German Type, European Type
- Brand：Mds
- Surface Treatment：Chrome
- Size：Common
Base Info
- Model NO.：10000Nm
- Feature：Anti-Explosion, Ordinary, Anti-Magnetic
- Working Mode：Manual
- Folded：Unfolded
- Handle Color：Metallic
- Application Age：Adult
- Transmission Ratio：1:25
- Maximum Torque(Nm)：10000nm
- 10000nm：M52-72
- Width Across Flats(a/F)(mm)：S80-105
- Weight：17kg

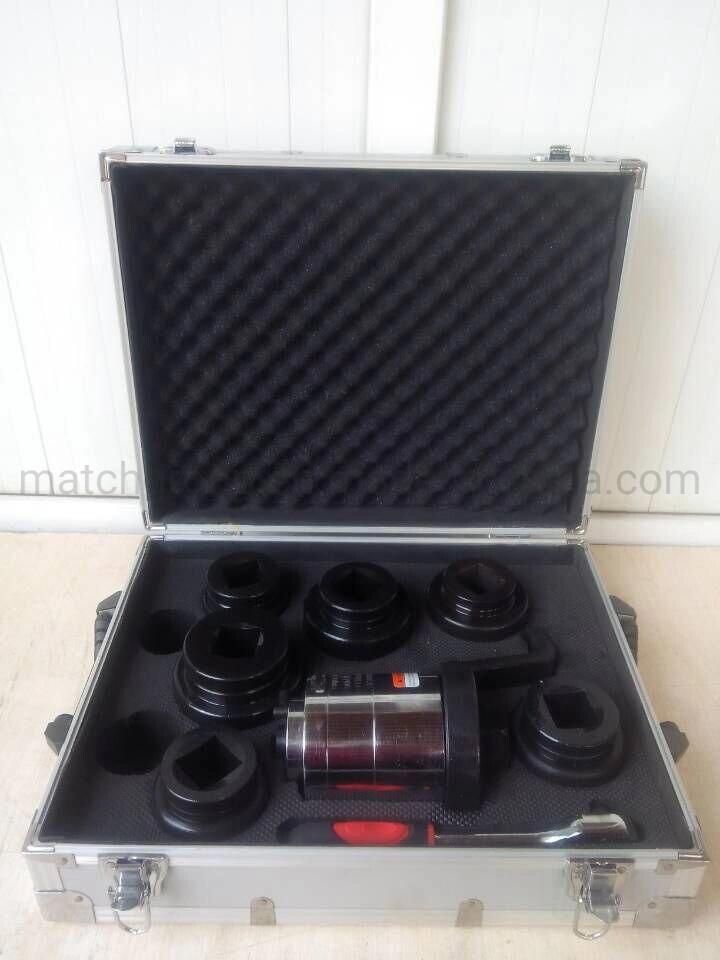

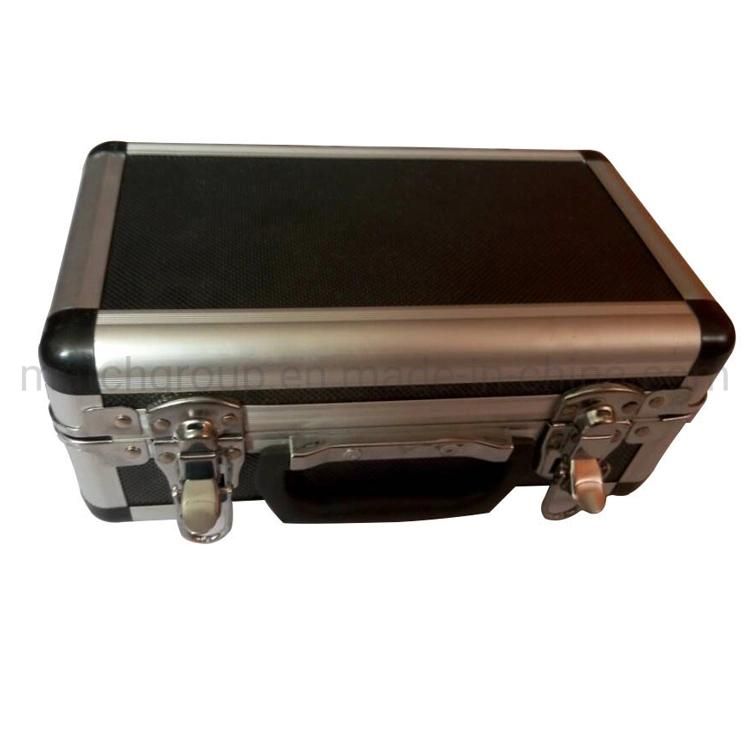

- Transport Package：Metal Case
- Specification：134*134*244mm
- Trademark：Match
- Origin：Shandong, China
- Production Capacity：1000PCS,Day
Description
ModelDrive RatioInput Square(mm)Output Square(mm)Max.Torque(Nm)Bolt Size(mm)Width Across Flats(A/F)(mm)Dimensions(mm)Weight(kg)FY-FDB-154.812.7251500M20-30S30-4680*80*1192.6FY-FDB-201412.725200M22-36S32-5574*74*1473.9FY-FDB-351712.7303500M30-45S46-7095*95*1625.5FY-FDB-551912.7355500M36-52S55-80105*105*1907.5FY-FDB-752212.7407500M42-60S65-90115*115*21010FY-FDB-1006112.75010000M52-72S80-105134*134*24417FY-FDB-15074.812.75515000M60-80S90-115146*146*30525FY-FDB-20096.812.76020000M72-95S105-135146*146*32531
