Basic Info.

Model NO. DR-150 Type Crawler After-Sales Service Provided No Overseas Service Provided Color Customized Maximum Torque of Power Head 160kn.M Depth 40m Engine Cummins Application Pile Driving Drill Rod Type Kelly Bar Machine Weight 35t Drill Tools 500-1500mm Drill Bit Chassis Length 4800mm Drilling Diameter 500-1500mm Power Head Speed 10-50rpm Engine Rated Power 158kw Transport Status Width 2800mm Transport Status Height 3550mm Transport Package According to The Customer′s Requirements Specification 13000*2800*3550 Trademark dingli Origin Shandong, China (Mainland) HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

The company's products have passed ISO, CE, SGS, CQC and other product quality system certifications, and the products are exported to 26 countries overseas. The maximum depth of this rotary drilling rig can reach 30 meters, and the drilling diameter is 500-1600 mm. For your needs, please feel free to contact me, thank you for browsing!




Parameter

model	DR-150
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-40m
Diamension (mm)	12500X2800X3550mm
Total weight (t)	30T
Power head max output torque (KN.m)	150KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	158KW ,cummins ,water cooling ,turbo charger

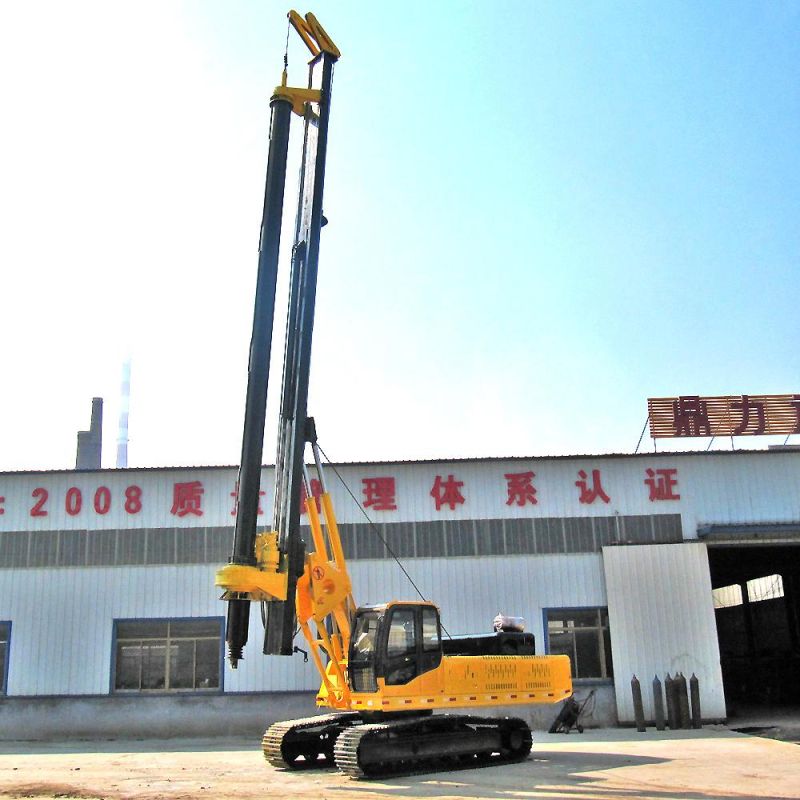

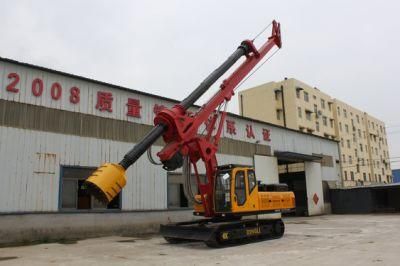

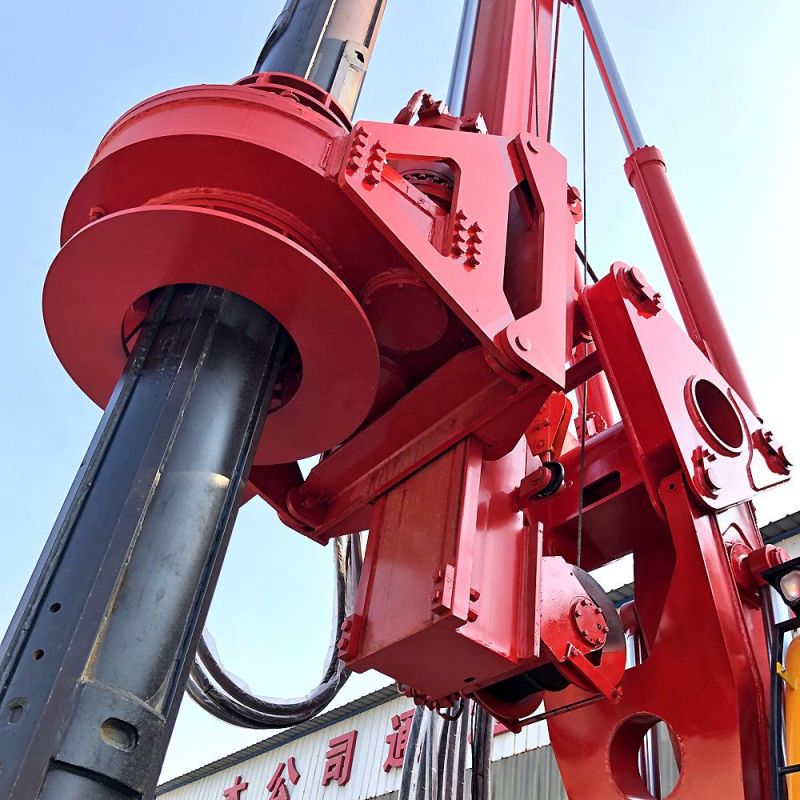

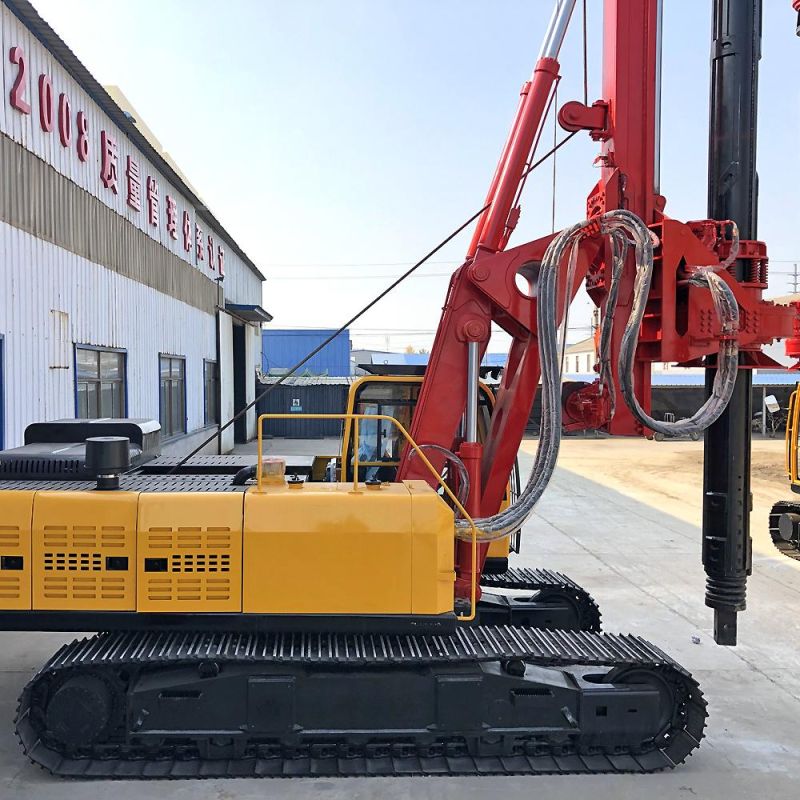

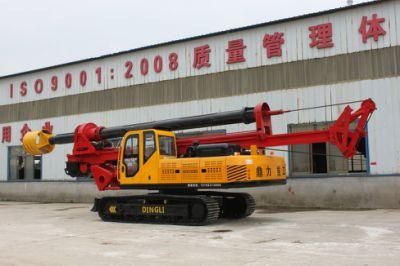

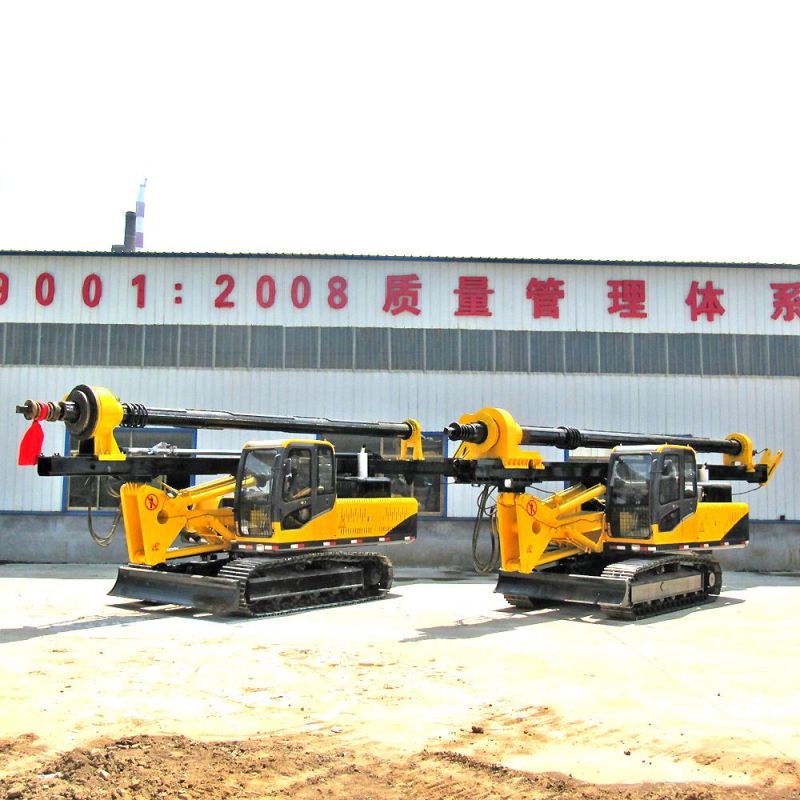

Machine Photos









Certification

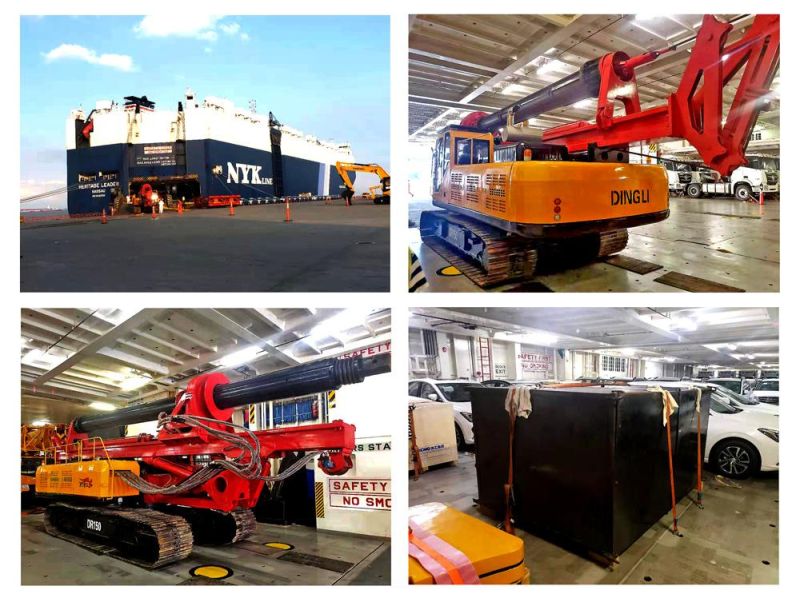

Loding photo



Company profile

     Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.



 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
