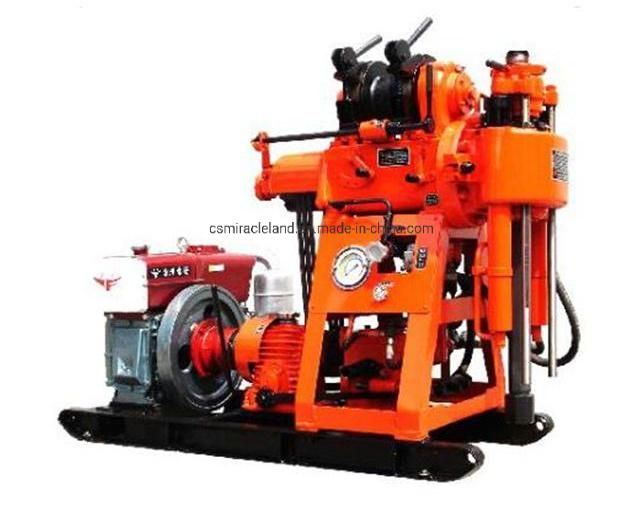

Xy-1 Portable Hydraulic Geotechnical Investigation Drilling Rig
Ruian Shengxiang Packaging Machinery Co., Ltd.Base Info
Description
Overview
Product DescriptionDrilling depth 100m Drilling hole diameter 75-300mm Drill rod diameter 42mm Spindle speed 142 285 570r/min Spindle stroke 450mm Spindle pull-down max 15000N Spindle lifting capacity max 25000N Max. Hoist lifting capacity 10000N Diesel engine model S1100 Rated speed 2200r/min Rated power 10.53kw Motor model Y132M-4-B3 Rated speed 1500r/min Rated power 7.5kw Mud pump type Horizontal reciprocating single-acting piston pump Pump displacement 100L/min Allowable working pressure max 1.5-0.7Mpa Rig dimensions(LxWxH) 1640x920x1350mm Rig weight (engine not included) 505kg
Product Parameters
XY-1 drilling rig basic parameters
