Stainless Steel Laser Cutting Machine for Carbon Stainless Steel Cutter
Yuhuan Green Island Plastic Packaging Factory- Application：Aerospace Industry, Automotive Industry, Woodwork Industry, Advertising Industry, Machinery & Hardware
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
Base Info
- Model NO.：987
- Laser Technology：Laser Control Fault Cutting
- Electrical Requirements：380V,50Hz.60AMP
- Type for Cutting Machine：Laser Cutting Machine
- Outline Size(mm)：4270mm*2420mm*1750mm (L*W*H)
- Automation：Automatic
- Condition：New
- Servo：Japan
- Cooling Mode：Water Cooled
- Certification：CS, SGS, ISO 9001:2008
- Type：High-Power Laser Cutting Machine
- Transmission Way：Y-Axis Imported Gear Rack Double Driver
- Transport Package：Wooden Box
- Specification：SGS,CE
- Trademark：Dapeng
- Origin：China Shenzhen
- HS Code：84561000
- Production Capacity：1set,Day
Description
Carbon Steel2 6 1 O2 1 4 3 0.6~0.8 O2 1 8 1.5 0.25~0.4 O2 1 10 1.2 0.15~0.2 O2 1 16 0.8 0.15~0.2 O2 1 20 0.6 0.1~0.2 O2 1
Technical parameter:

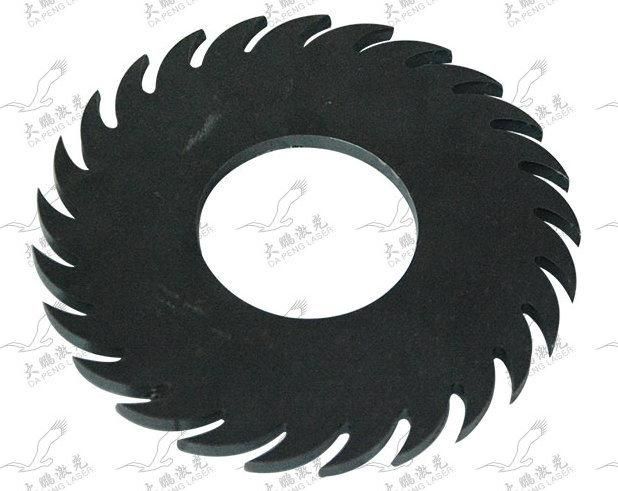

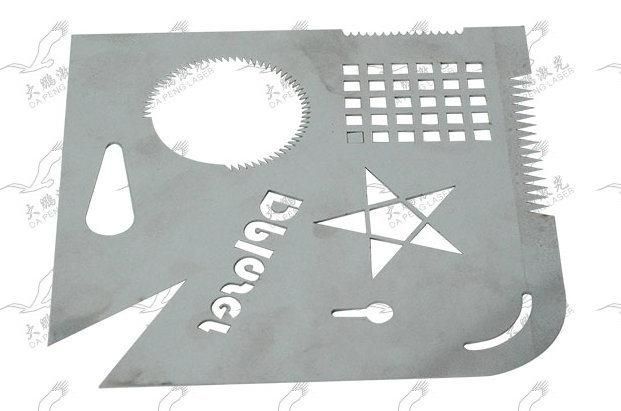

sample cutting
Pre-sale service:
1. Free sample making:
For free sample making/testing, please send your samples or products CAD Graphics to our company in China
. Sample shipping back cost should be paid by purchaser.
2. Progressing Solution Design
According to customer's product processing requirement, we can design the unique solution that supports higher
manufacturing efficiency and better processing quality for customer.
After-sale service:
1.One years warranty for machine, One years for domestic source (One year for IPG source)
2. Technical support
Lifelong technical support online or by email and 18 hours online service to help you use our machine well.
3. Oversea service
Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation,
round tickets and engineer charges USD200/day)
4. Training service
Offer training at our factory for free (you could visit us and learn)
Note:
We will supply the machine with training video and user's manual in English for installing, operation,
maintenance to ensure customer could use our machine well.

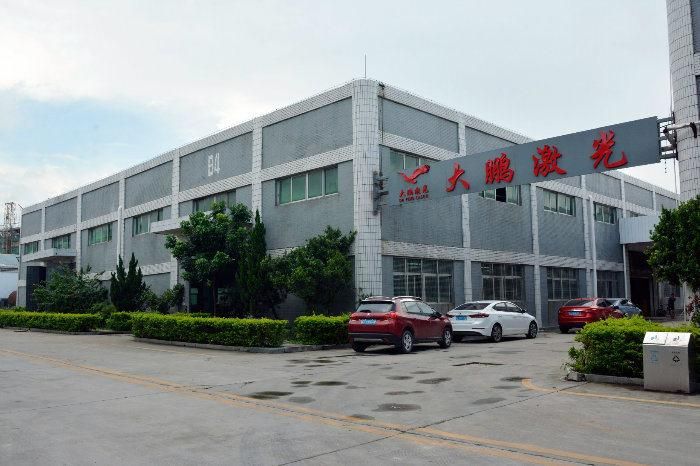

Shenzhen Dapeng Laser Technology Co. Ltd.
Shenzhen Dapeng Laser Technology Co., Ltd. was established in 2008, is a research and development, manufacturing, sales and service in one of the laser equipment high-tech enterprises, is committed to laser technology research and development, laser equipment design research and development, production,
technical support, services and consulting,Strong research and development capabilities, standardization and scale of the production plant, we can guarantee the quality of products and delivery time; also can be customized according to customer requirements of the design and production, better adapt to market development,
The company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc. Products Used in electronics, IC chips, electrical appliances, lighting, jewelery, hardware tools, sanitary ware, instrumentation, automobile and motorcycle accessories, mobile communication parts, mold, precision machinery, medical equipment, IT digital, metal shell, military aviation components , Clothing leather, craft gifts, advertising decoration, model, cookware tableware, kitchenware and other industries
Dapeng laser product quality is stable and reliable, with professional R & D team, the pursuit of excellent quality at the same time, Dapeng laser also provides customers with timely, comfortable pre-sale, sale, after-sales service and excellent cost-effective products.
Dapeng laser through the implementation of "to help customers succeed, create value model, to create industrial laser equipment industry services high-end brand" business philosophy, won the majority of users trust and praise. Customers located throughout the country and overseas, 2016 sales of laser equipment more than 5,000 sets .

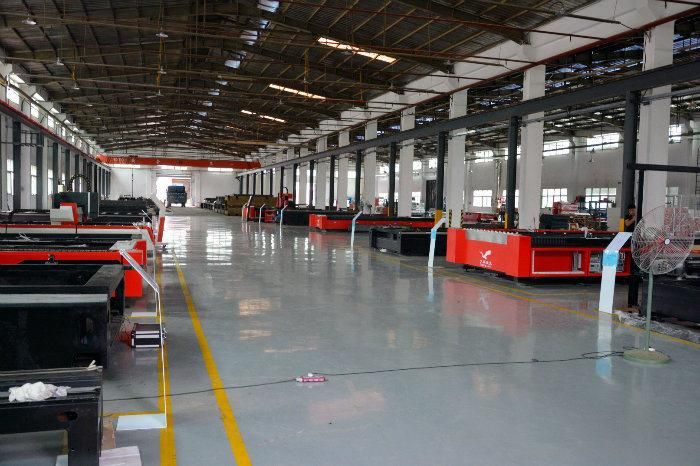

The company established a sound production and sales and after-sales service system, in Shenzhen, Wenzhou, Kunshan, Xiamen has a production base. In Dongguan, a large laser cutting machine production base.
And in major domestic industrial cities and regions with offices, the offices have equipment display, process proofing, sales and after-sales service, resident technical service personnel, to provide customers with timely, comfortable pre-sale, sale, after-sales support And services.
Dapeng people know that quality and service is the fundamental survival of the company, innovation is the basis for long-term development of the company to help customers create value, and strive to build the laser equipment industry well-known brands, look around the world, win-win cooperation and create a better future
Technical parameter:

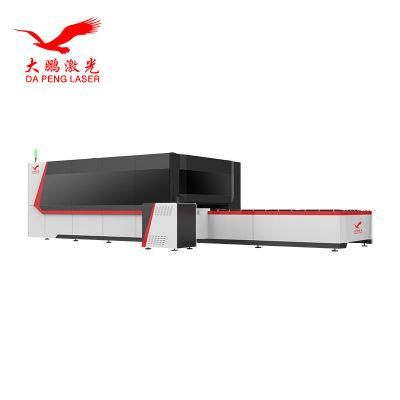

| Model | DP-L Fiber laser cutting machine |
| Laser Power | 500W/7500W laser power as Raycus, Maxphotonics such brand. But 500--1000W's first option is IPG. |
| Working Area | 1300*2500mm (1500*3000mm optional) |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 3000mm/s |
| Position Accuracy | ±0.001mm/m |
| Position Speed | 20m/min |
| Minimum Line Width | ± 0.02mm |
| Cutting Thickness | ≤6mm |
| Control System | Cypcut |
| Position Type | red dot |
| Power Consumption | ≤12KW |
| Working Voltage | 380V/50Hz |
| Auxiliary Gas | oxygen,nitrogen,air |
| Working life of fiber module | More than 100000 hours |
| Fiber laser cutting head | Germany Precitec |
| Focus lens | Lasermech made in USA |
| Driver system | Imported servo motor |
| Liner guider system | PMI made in Taiwan , (Option THK made in Japan) |
| Transmit system | Dual Rack & Pinion type |
| Rack system | Herion made in Germany |
| Chain system | Igus made in Germany |
| Warranty time | Whole machine for 1 years (domestic fiber module 1 years, imported IPG 1 years ) |
| Delivery time | 30 days |
| Gross weight | 4500kg |
