Engine Power

Weichai Power

390KW(2100r/min)

Crane on Rig3.2tMaxPush/Pull Capacity2100KNTraveing Speed2-4Km/hMax. Feeding/Pull Speed

I Gear:6m/min

II Gear:12m/min

III Gear:36m/min

Max. Perissible Gradient30°Max. Rotation Torque

60000N·m (I Gear)

30000N·m (II Gear)

Max. Pump Max. Flow Rate1500L/min(Spindle turning speed

0-40r/min

0-80r/min

Maximum mud pump pressure10MPaMast Pentration Angle8°-16°Rod Size6mMaximum top torque70000N·mExternal dimensions ( length * width * height)13*2.7*3mMaximum shackle torque

140000N·m

Weight36t

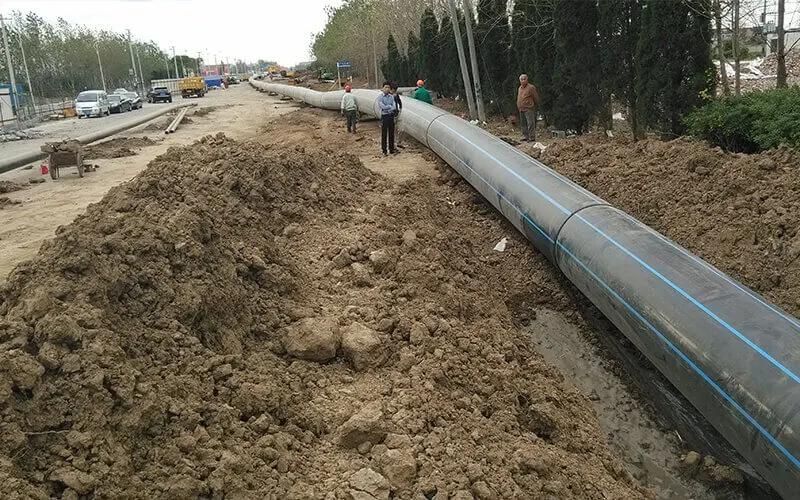

Construction Site






Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.


1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.

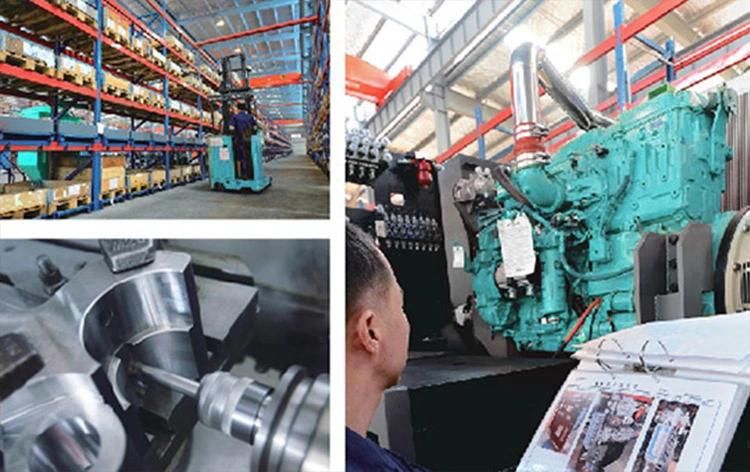

2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.



Our Customers
