• Model NO.：TSE65,70,85,90,95
• Cleaning：Self Cleaning
• Material：Stainless Steel
• Voltage：380,415,450,600
• Processing：Extrusion
• Capacity：100kg-2ton,H
• Pellet Size：1-10mm
• Motor：ABB, Siemens and Other
• Extruder：Double Screw and Single Screw
• Screw Material：38CrMoAl
• Barrel Material：45# Steel
• Transport Package：Wooden Box
• Specification：20m*3m*2.5m
• Trademark：Shengrun
• Origin：China
• HS Code：8438800000
• Production Capacity：20 Set, Month

Basic Info.

Model NO. TSE65/70/85/90/95 Cleaning Self Cleaning Material Stainless Steel Voltage 380/415/450/600 Processing Extrusion Capacity 100kg-2ton/H Pellet Size 1-10mm Motor ABB, Siemens and Other Extruder Double Screw and Single Screw Screw Material 38CrMoAl Barrel Material 45# Steel Transport Package Wooden Box Specification 20m*3m*2.5m Trademark Shengrun Origin China HS Code 8438800000 Production Capacity 20 Set/ Month

Product Description

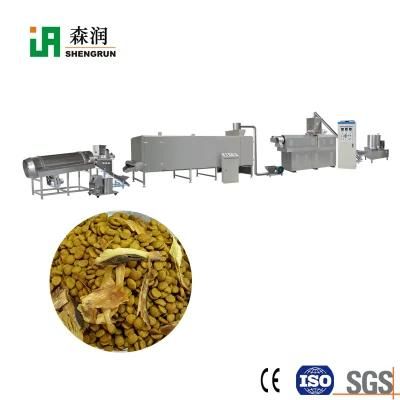

Small fish feed complete production lines:

1, Shengrun Fish feed production machine is used to produce the fish food with novel shape, particular taste and color.

2, This Fish feed production machine is used to produce catfish feed, aquarium fish feed and so on.

3, Our Fish feed machine can produce a premium quality special fish feed. This fish feed processing line can do floating and sinking fish feed.


The products which can produced from the Fish feed processing line:

Raw material for fish feed: Corn powder, wheat flour, fish meal, and so on, we can provide basal formulation as your requirement.

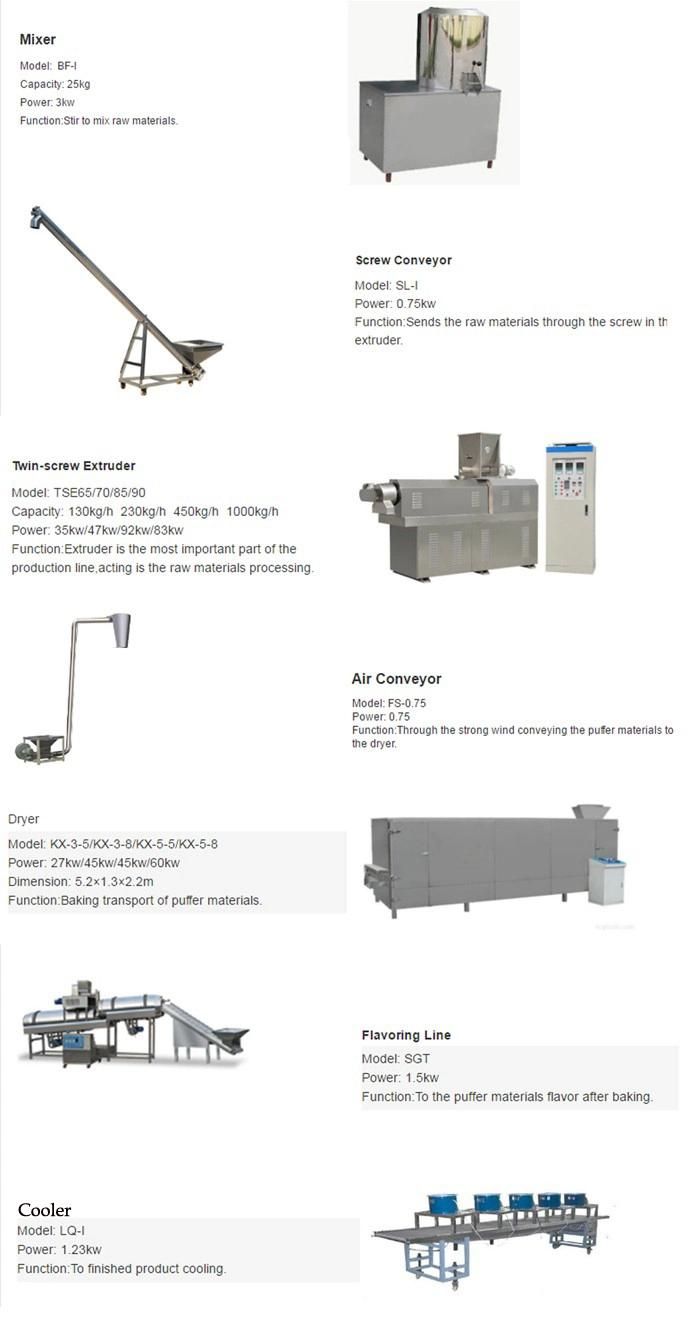

Flow chart of the fish feed processing line:

Mixer --- Screw conveyer  --- Twin-screw extruder ---Air conveyer --- Layers Dryer --- Hoister---Oil sprayer --- Flavoring Roller --- Cooling conveyer --- sifter

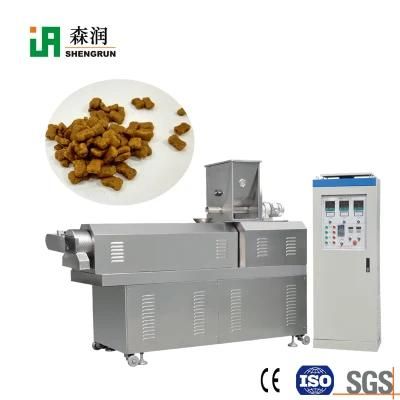

The Parameter of the fish feed extruder :

MODEL	INSTALLED POWER	REAL POWER	OUTPUT(KG/H)	DIMENSION(MM)
DLG60	16.5KW	15KW	100-150	1200*600*1500
DLG80	23.5KW	22KW	200-300	1400*800*1700
DLG120	66KW	55KW	500-600	2600*900*1900
TSE65-P	80KW	50KW	100-150	2600*900*1900
TSE70-P	110KW	80KW	200-250	2600*900*1900
TSE85-P	150KW	100KW	350-500	3900*900*1900
TSE90-P	170KW	120KW	700-1000	4200*900*2500
TSE95-P	190KW	150KW	800-1500	4200*900*2500

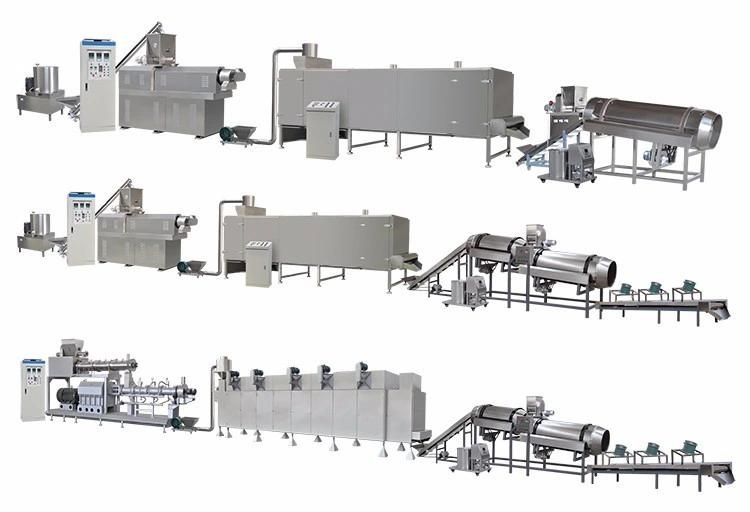

the details showing for fish feed processing line:

The packaging and shipping for fish feed processing line:

Packing:  inside plastic bag, outside wooden case for floating fish feed bulking machine (Based on the customers' need adopt the wooden case or wooden pellets, etc.)

Transportation: shipping, train, express or what the client need.

Sales service:

Before sale services:

1.Provide the free consultation of the equipment

2.Provide the standard device and the flow chart

3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

After sale services:

1.Oversea install and debug the equipment.

2.Train the first-line operator.

3.Provide the basic formula

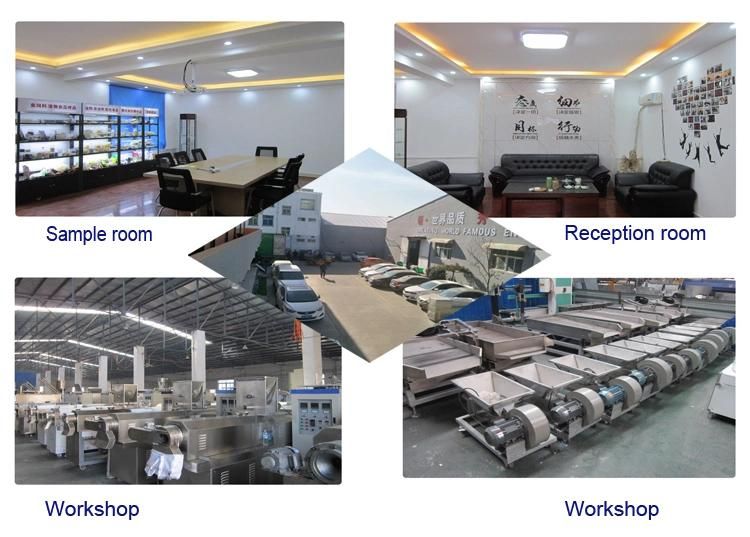

Company information:
Jinan Shengrun Machinery Co., Ltd is a professional food machine manufacture in China, Our machine have been sold to all over the world. We have pet cat dog food machine, fish food machine, snack food machine, kurkure machine, corn filling machine,artificial rice machine, nutrition rice machine, puffed rice machine, corn flakes machine, soy protein machine,breadcrumb machine, nutrition power machine, fried pellet machine, macaroni pasta machine and etc.We also have all kinds of package machine.
