Basic Info.

Model NO. SJZ Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Export Standard Package Specification SJZ Trademark KEBELN Origin China HS Code 8477209000

Product Description

extruder

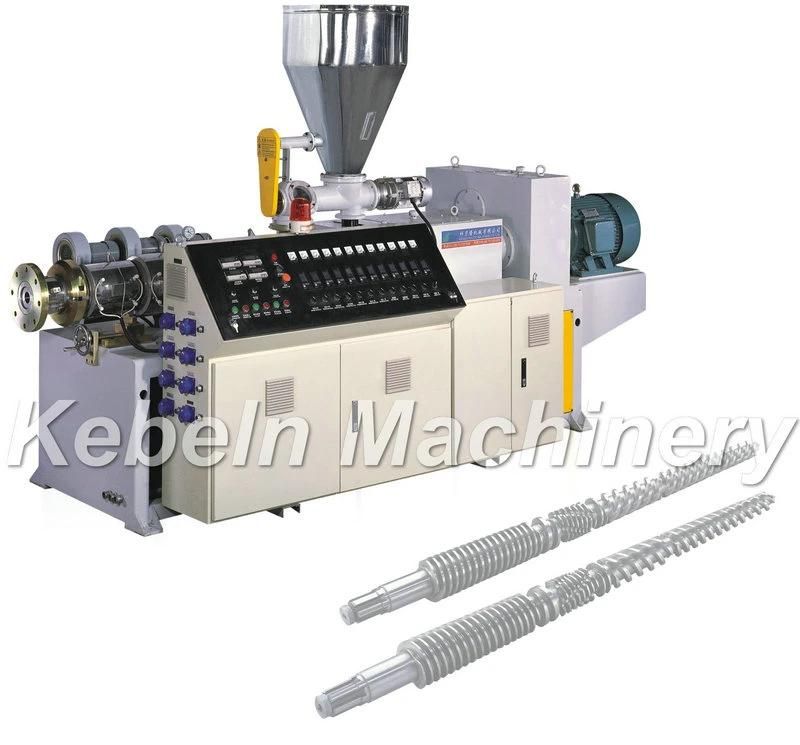

SJZ cone double-screw plastics extruders have advantages, such as forced extruding, high quality, wide suitable range, long working life, small cutting rate speed, not-easy decomposition of material, good plasticized characteristics of calendaring, straight shaping of powder material and others. It is equipped with AC governor, autocontrol temperature, vacuum exhaust and other devices. The line is suitable for production of pipe, plate and special-shaped materials.
Main technical specification

Screw diamete(rmm)	92/188	motor power(kw)	90	center height of screw(mm)	1100
screw direction	opposite            outward	installation power (kw)	195	weight(kg)	7000
speed of screw rotation (r/min)	1-34	Max. capacity(kg/h)	800	dimension(L*W*H) (mm)	4810× 1600 × 2650
length of screw (mm)	2460	quantity of barrel heating(pcs)	5
structure of screw	conical-shaped mesh	heating	die-casting aluminum+ ceram heating
