Basic Info.

Model NO. PPTF-70T Max. Clamping Force 300kn Dry Cycles Speed 42 Cycles/Min Sheet Width Range 550-720mm Sheet Thickness 0.35-2.0mm Transport Package Wooden Cases Specification CE Certificate Trademark Polyprint Origin China HS Code 8480719090 Production Capacity 35cycles/Min

Product Description

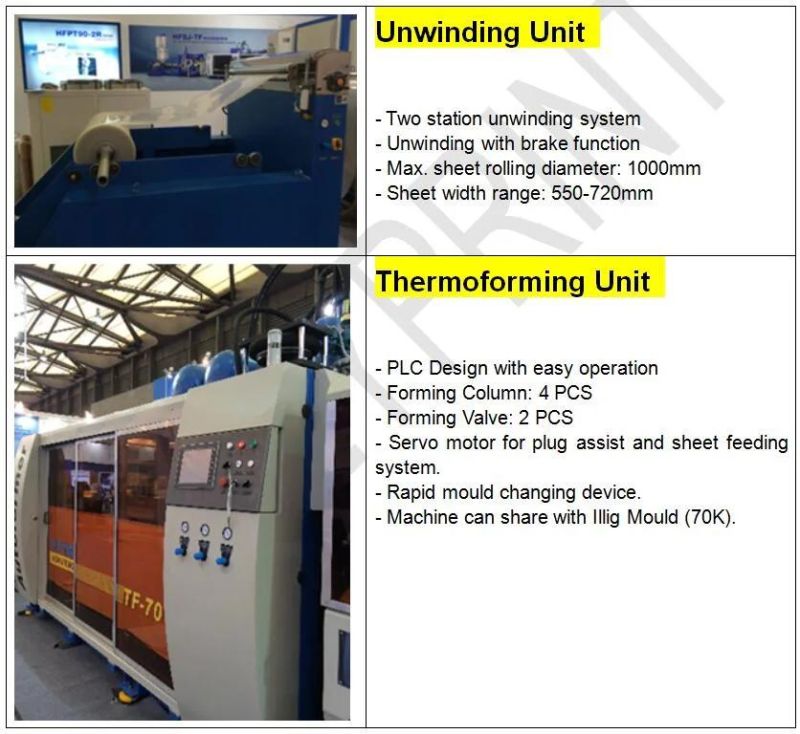

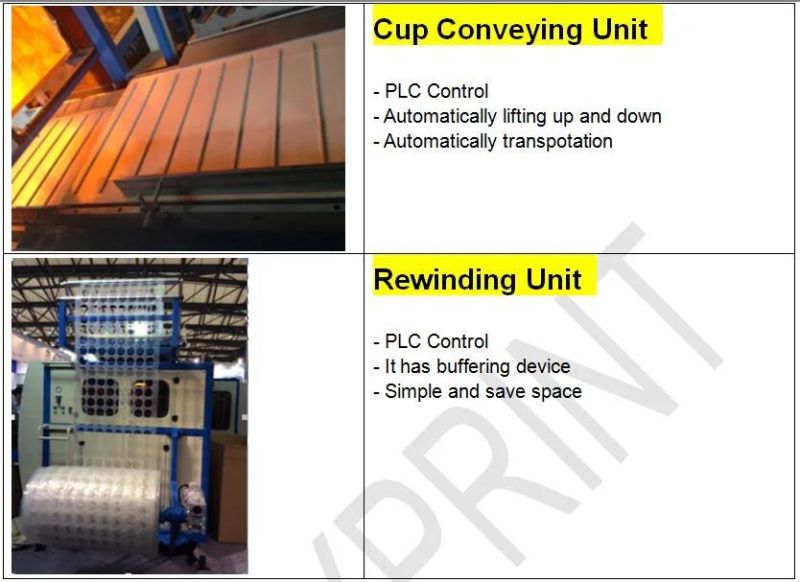

PPTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.

Application:
It is suitable for PP,PS PLA,PET,PVC etc material.
It mainly produces the containers such as water cups,drinking cups,milk cups,bowls etc.

Features:
1.Rapid mould changing device.
2.Buffer design is adopted for the width of chain holder thus eliminating chain binding condition.
3.resulting from insufficient heating of sheet.

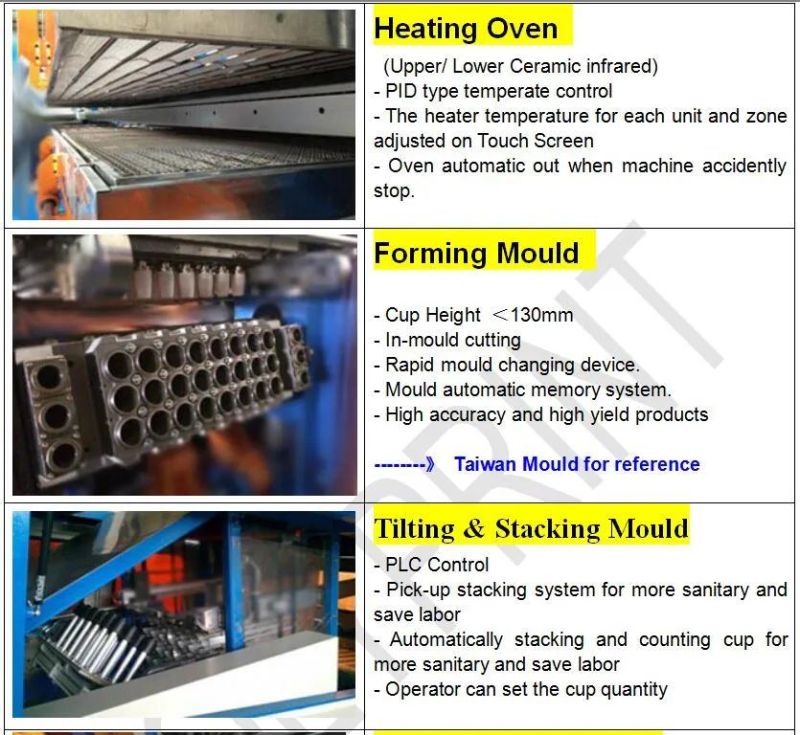

4.Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control.
5.Automatic stacker system.
6.PLC and humanized color touch screen control operation interface.
7.Mould automatic memory system.

Technical Parameter:

1	Max. Forming Area	685×320mm
2	Max. Forming Depth	130mm
3	Max. Clamping Force	300KN
4	Dry Cycles Speed	42 Cycles/min
5	Sheet Width Range	550-720mm
6	Sheet Thickness	0.35-2.0mm
7	Max. Roller Diameter	Φ1000mm
8	Air Pressure	0.7-0.85mpa
9	Water Consumption	50 L/min
10	Air Consumption	3000 L/min
11	Machine Weight	11500kg
12	Dimension	12500×3650×3550mm
13	Power (3 Phase 4 Wire)	3×380V+NP+PE.50HZ

Show Details:Our Services:
1. Warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3. Quotation: valid for 60days.

Packaging Shipping: Company information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
