• Model NO.：MAN-20W
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Single Gross Weight：12kg
• Warranty：3 Years
• Brand Name：Raycus
• Wavelength：1064nm,10.6um
• Transport Package：Wooden Cases
• Specification：43X30X20 cm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-20W Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Single Gross Weight 12kg Warranty 3 Years Brand Name Raycus Wavelength 1064nm/10.6um Transport Package Wooden Cases Specification 43X30X20 cm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

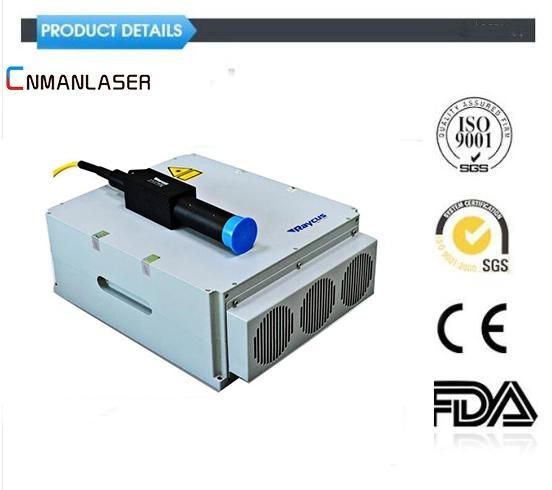

20w Raycus Fiber Laser Source for Laser Marking Machine

Main Features:
Alternative to semiconductor laser
Excellent pulse power/energy stability
Compact structure, small volume
Low cost solution ,also with high peak power
Beam quality optimized in application
General 25-pin interface
High reliability and long service life

Typical Applications
  Ceramic, plastic keys, metal and non-metallic material marking
  Precision machining and cutting
  Graphic engraving
  Special materials processing, etc

Product Feature:

Frequency Range:1KHZ~1000KHZ

Operating modes:pulse

Adjustable Pulse Width:2ns~250ns

Maximum peak power covers the entire whole frequency

 range

Laser output reflection isolation

Design of High reliability/repetitive/stability

Design of Air cooling system

Controlling method of DB25 interface



Questions usually been asked by the customers
1) Does the laser have "auto verification" mode in which it can diagnose itself for possible problems?
=> It has a protection software inside.
2) Can an abrupt electricity cut damage the laser? Is it necessary to connect the laser to electricity via UPS?
=> an abrupt electricity cut won't damage the laser, our laser has been tested in this way for many many times. Not necessary to connect to UPS.
3) Is the laser filled with neutral gas (we are thinking about the risk of opening it by the customs at the border)?
=> No neutral gas, it's safe.
4) Can anything bad happen to the laser if it is scanned by X-ray on the border?
=> Please don't worry, our laser has been sold to many countries, it very safe. Because there is no dangerous materials in it that will lead to fire or explosion.
5) Does the laser have a CE certificate necessary to be sold to European Union?
=>Yes

6) What is the lifetime?

The lifetime of the lasers are 100,000 hours, the lifetime of the pump diode is 100,000 hours.
