• Model NO.：Grinding Screen Machine
• Transport Package：Wooden Box
• Trademark：COYO
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. Grinding Screen Machine Transport Package Wooden Box Trademark COYO Origin China Production Capacity 50000PCS/Year

Product Description

Product Description



This type of small square sieve is a new generation of high-efficiency small square sieve developed by our company on the basis of summarizing various problems encountered by many flour manufacturers in the use of traditional inspection screen, such as serious flour channeling and powder leakage, and low processing capacity.



It has the following characteristics:



(1) The machine body is made of high-quality high-strength steel plate bent and welded with square steel pipe, which has high strength and small internal stress. (2) the screen grid is made of high-quality northeast Tilia wood, which is treated by special processes such as boiling and steaming, and is carefully processed, which has good characteristics of permanent crack free and deformation free,



3) The pressing mechanism adopts the vertical and horizontal independent pressing mode of high square screen, which is firm, in place and not easy to loosen after being pressed, which fundamentally solves the phenomenon of powder channeling and powder leakage,



(4) The fully enclosed stainless steel outer channel replaces the traditional channel for inspecting the materials on and under the screen, and the effective sieving area is increased by 32.7%, and the treatment capacity of the equipment is increased by 25%.



The small square sieve is easy to disassemble and assemble, and the sieve path is flexible and changeable. According to the requirements of customers, the material can be graded into various grades. This product is widely used in flour, corn, feed, pharmaceutical, chemical, starch and other fields



Technical Parameter





Model	Capacity(t/h)	Mesh	Power(Kg)	Sieve Area(m2)
FSDG-30	2-4	8-12	0.75	4.5
FSDG-40	3-6	8-12	1.1	7
FSDG-60	4-8	8-12	1.5	8.5
FSDG-80	6-12	8-12	2.2	13.5
FSDG-90	5-10	10-12	1.5	7.1
FSDG-100	10-13.5	10-12	1.5	8.5
FSDG-120	15-20	10-12	2.2	12.5

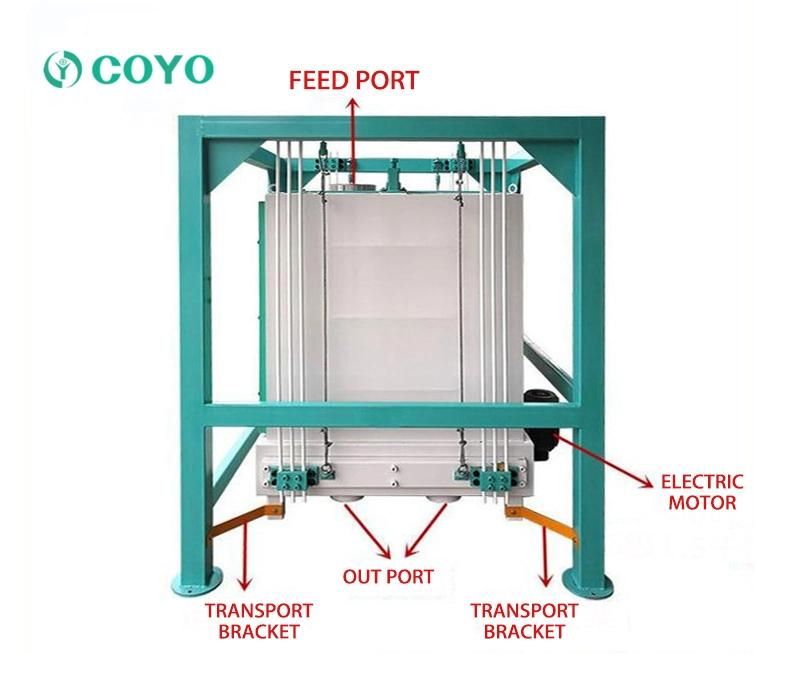

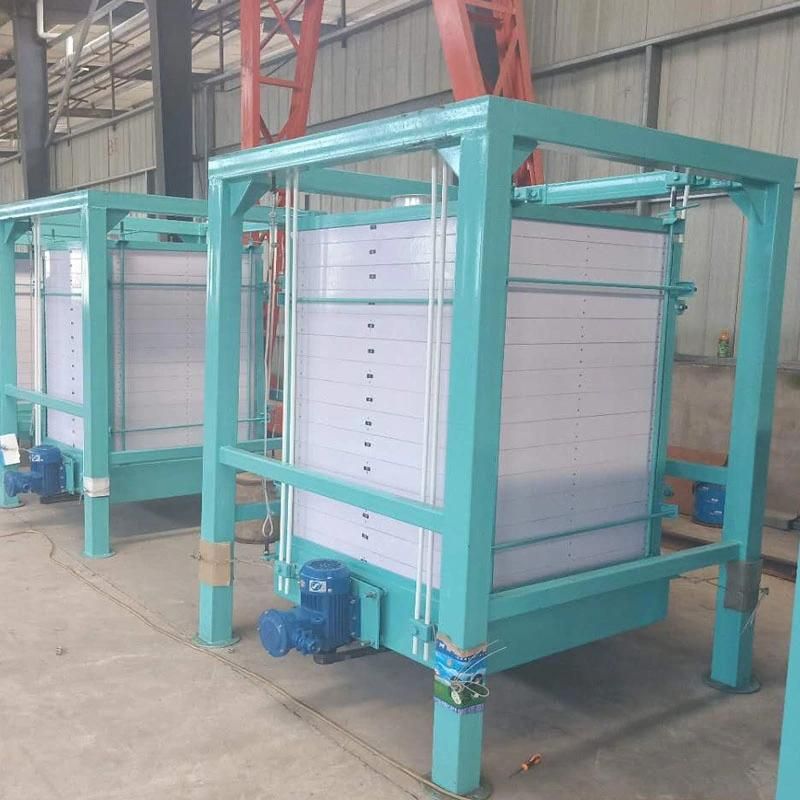

Product Picture
