PE LDPE HDPE Po Film Extrusion Machine Film Blowing Machine
BEHAPPY CRAFTS (SUZHOU) CO., LTD.Base Info
Description
LDPE LLDPE HDPELayfat width of film(mm) 600 800 1000 1200 Thickness of film(mm) 0.008-0.10 Max.extrusion output 40kg/h 50kg/h 60kg/h 70kg/h Screw dia(mm) Φ50 Φ55 Φ60 Φ65 Screw L/D 28:1 Screw rotation 10-100r/min Main motor(kw) 11 15 18.5 22 Dia of orifice(mm) Φ80/Φ120 Φ80/Φ160 Φ120/Φ220 Φ130/Φ250 Tota power(kw) 18 24 28 40 Weight (T) 3 3.6 4.2 5 Dimension LxWxH(M) 4.2x2x3.8 4.6x2.2x4 5x2.4x4.5 5x2.6x4.8 MODLE FB-B-1500 FB-B-2000 FB-B-2500 FB-B-3000 Suitable material LDPE LLDPE HDPE Layfat width of film(mm) 1500 2000 2500 3000 Thickness of film(mm) 0.01-0.10 0.02-0.10 0.02-0.10 0.02-0.10 Max.extrusion output 85kg/h 140kg/h 180kg/h 220kg/h Screw dia(mm) Φ75 Φ100 Φ110 Φ120 Screw L/D 28:1 Screw rotation 10-100r/min Main motor(kw) 30 55 75 90 Dia of orifice(mm) Φ200/Φ350 Φ500 Φ600 Φ750 Total power(kw) 52 84 110 130 Weight (T) 6 7.6 9.8 12 Dimension LxWxH(M) 6x2.9x6.2 8x3.5x8 9x4.2x9.6 10x4.6x11

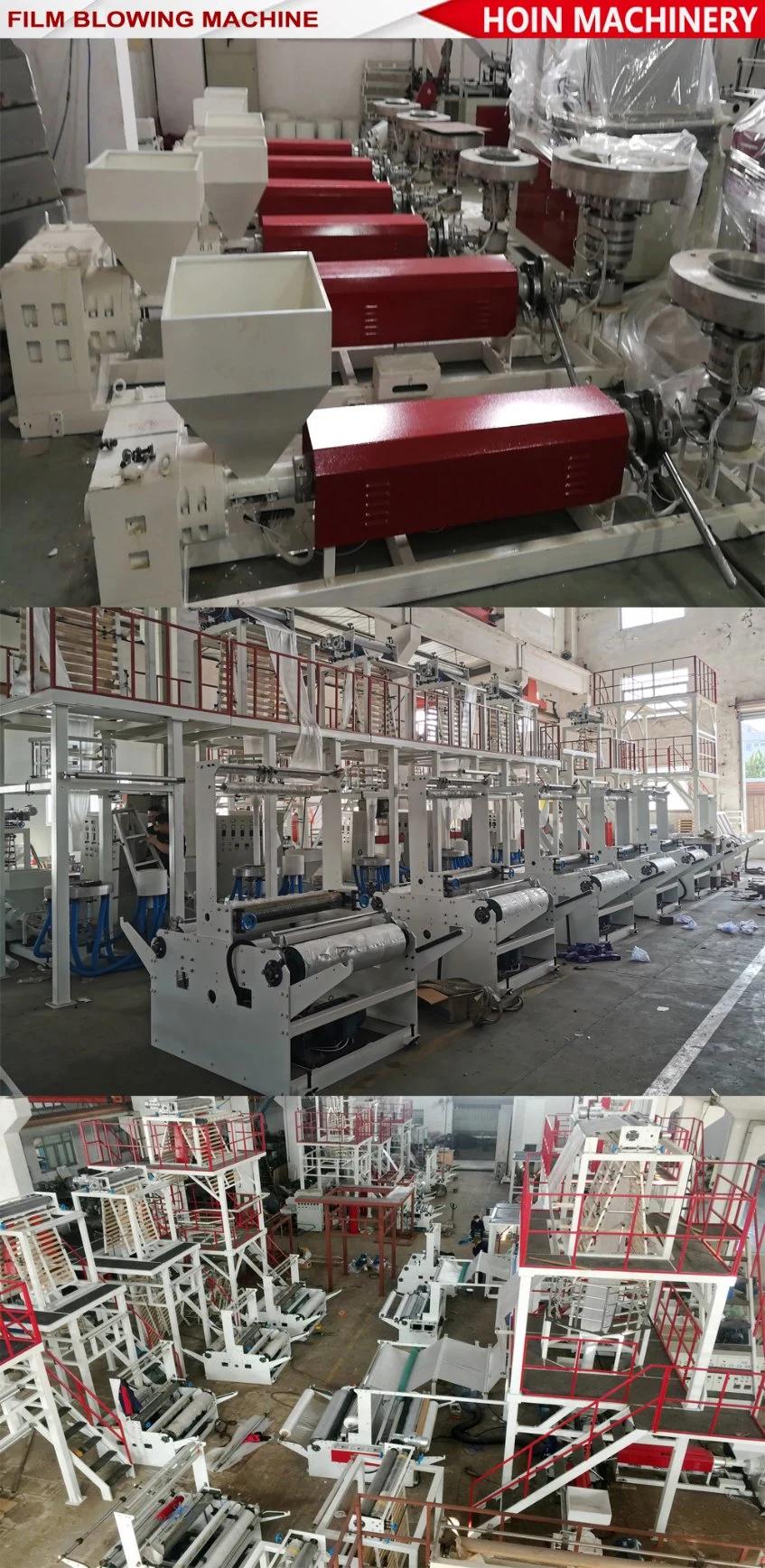

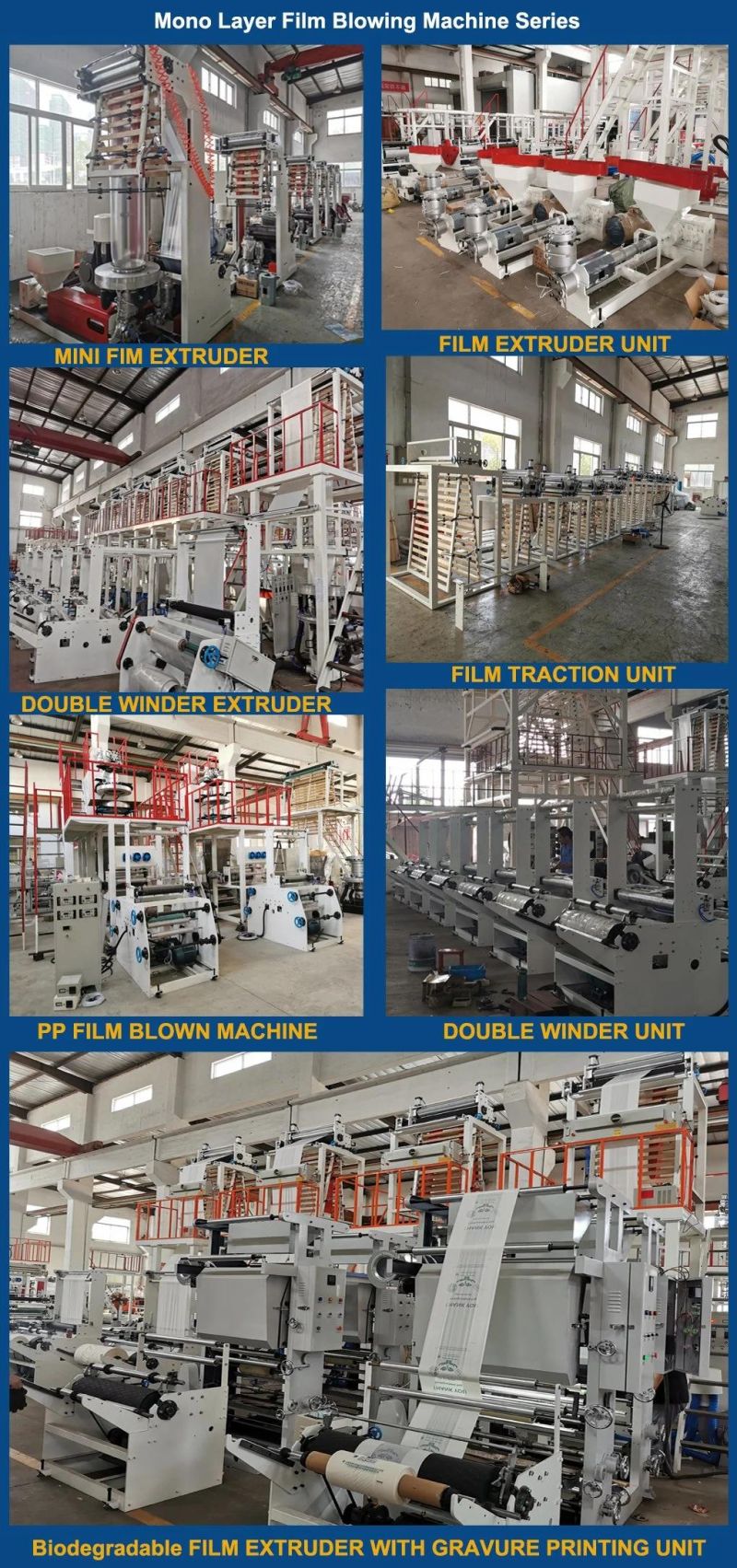

4. Machine Pictures for Reference:

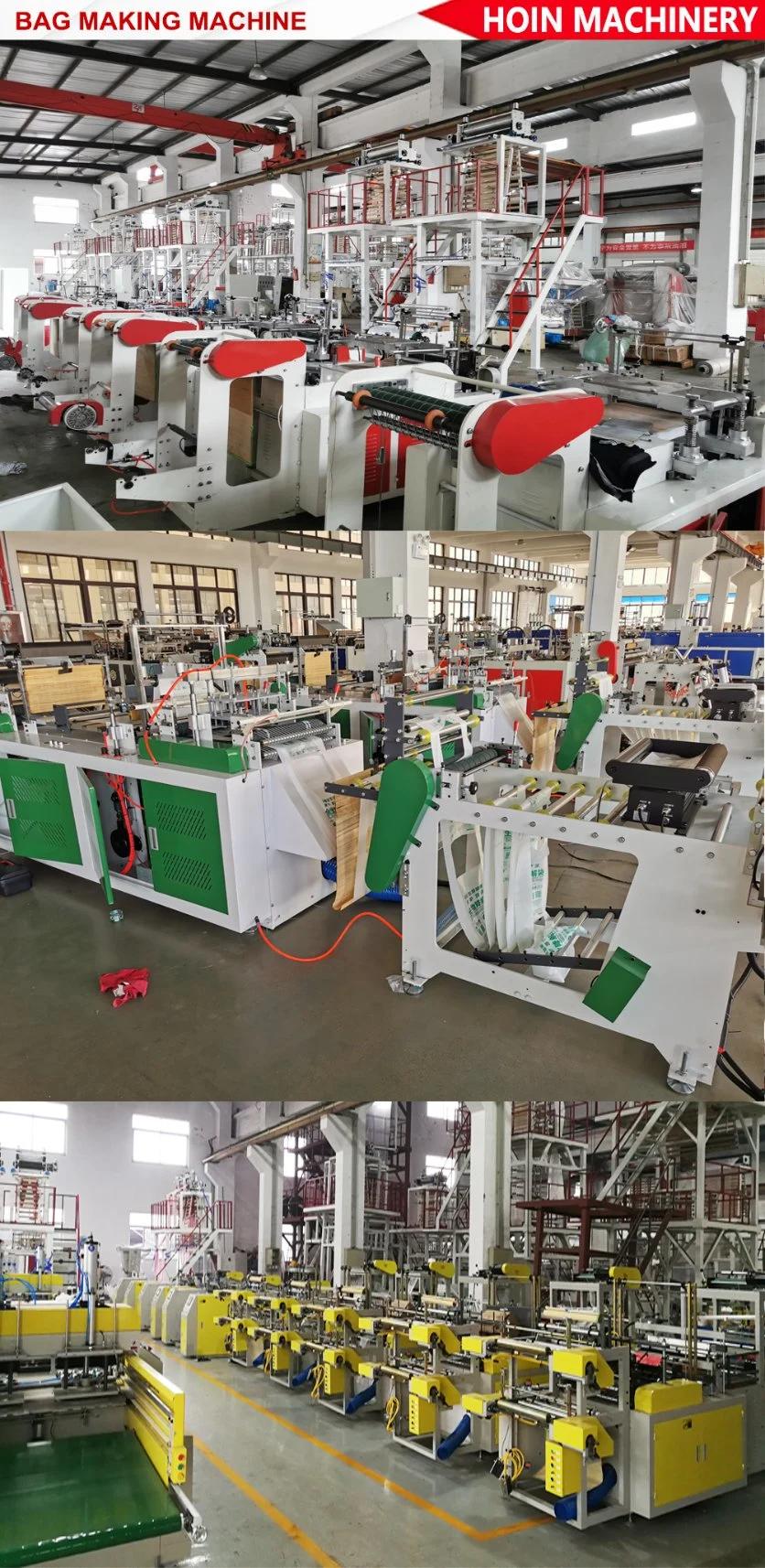

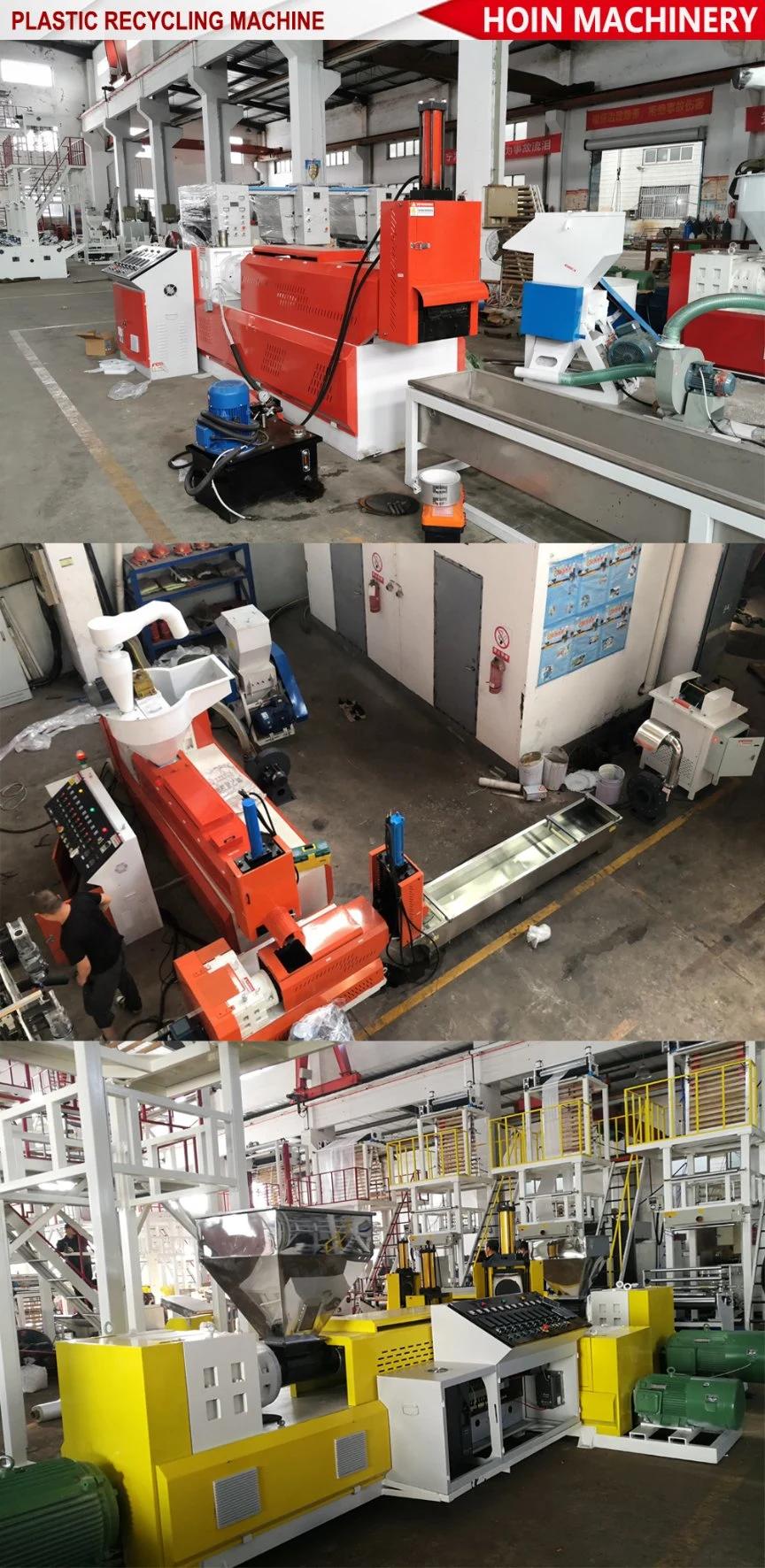

5. Workshop of HOIN

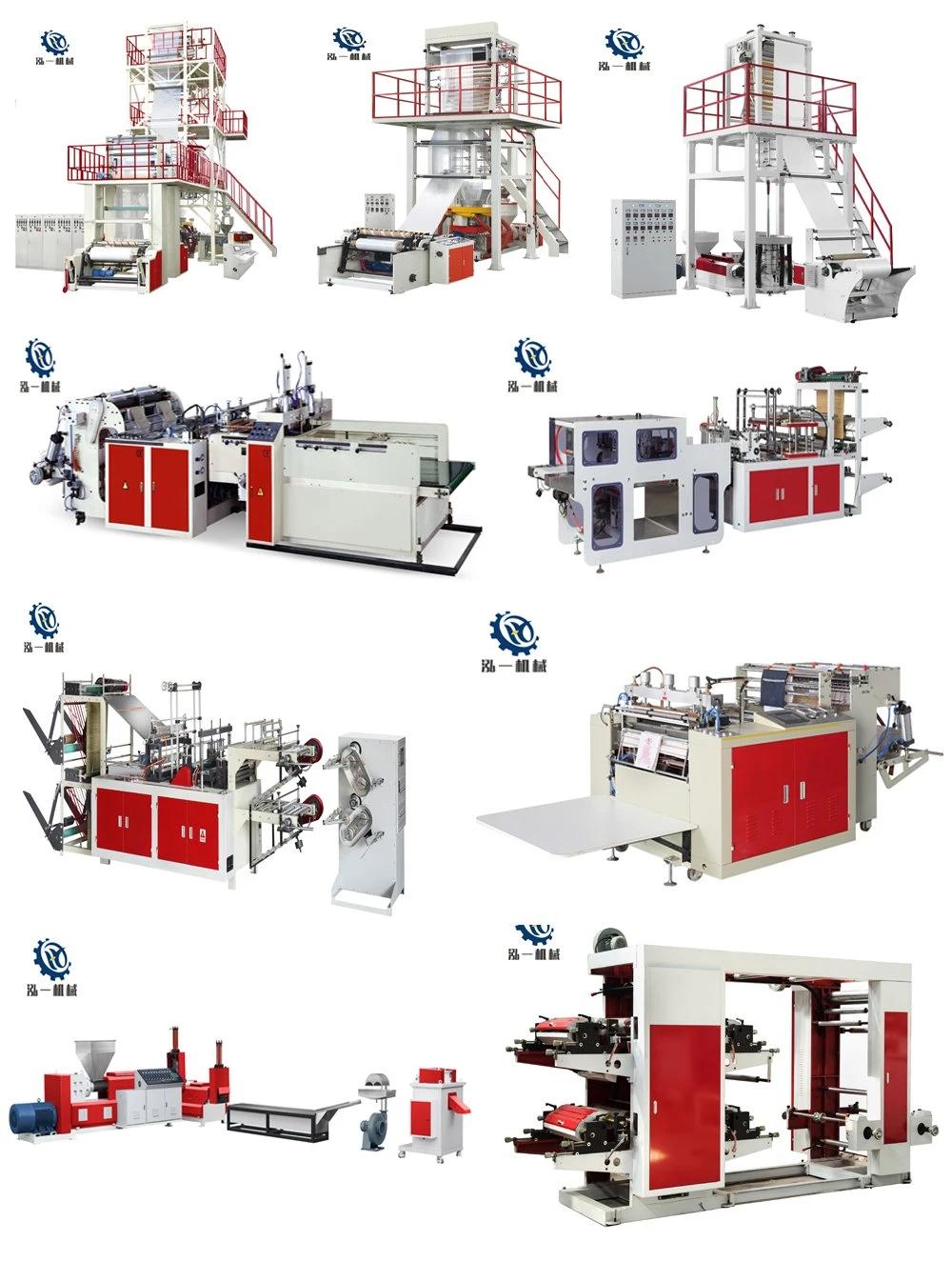

6. More Products Optional:
7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
| 1. | filter | 1 M | 8. | electric -testing pen | 1 pcs |
| 2. | magetic stone | 1 pcs | 9. | hexageonic wrench | 1 pcs |
| 3. | air pipe | 1 pcs | 10. | glove | 2 pairs |
| 4. | 8-10 open and wrench | 1 pcs | 11. | Steady Bar | 1 pcs |
| 5. | 12-14 open and wrench | 1 pcs | 12. | Mould Pipe | 1 pcs |
| 6. | 14-17 open and wrench | 1 pcs | 13. | electric-thermal couple (E) | 2 pcs |
| 7. | 17-19open and wrench | 1 pcs | 14. | screw heater(stainless steel) | 1 pcs |
5. Workshop of HOIN6. More Products Optional:7.After Service of HOIN:1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
MS.WendyPan
