Stainless Steel Mixing Tank with Wheels
Oct Technology Limited- Capacity：200L
- Material：SUS304,SUS316
- Structure：Two-Layer
- Processing Types：Juice
- Customized Capacity：100-1000L
- Tiltable：by Hand Wheel, by Electric Motor
Base Info
- Model NO.：WANYUAN
- Transport Package：Wooden Case
- Origin：Wenzhou China
Description
Basic Info.
Model NO. WANYUAN Transport Package Wooden Case Origin Wenzhou ChinaProduct Description
Stainless steel mixing tank with wheels (with cooling jacket)200L movable mixing tankJacketed mixing tank tank / movable tank with castorused as mixing tank, buffer tank, storage tank, cooling tank or heating tankmovable with wheelsWith cooling and heating jacketedLayer for heat preservation / thermal insulation layerTiltable by hand wheel or by electric <JOG discharge>200Liter tiltable, cylindric jacketed tank for cooling and heatingContact part made of SS304 food gradeMovable mixing motor

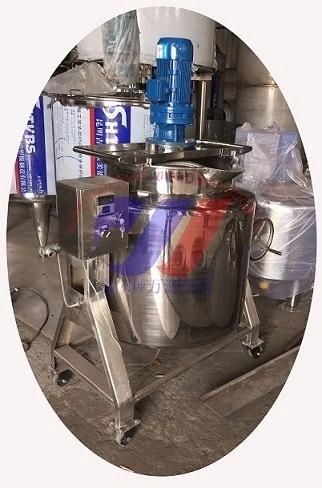

Pictures of storage tank:
This is specification of Mixing storage tank:
| No. | Capacity | 100L | 200L | 300L |
| 1 | Inner diameter | 520mm | 640mm | 740mm |
| 2 | Jacketed diameter | 620mm | 740mm | 840mm |
| 3 | Outer diameter | 720mm | 840mm | 940mm |
| 4 | Inner height | 500mm | 640mm | 700mm |
| 5 | Total height | 1000mm | 1150mm | 1200mm |
| 6 | Material | SUS304 | SUS304 | SUS304 |
| 7 | Thickness | 3/3/1.5mm | 3/3/1.5mm | 3/3/1.5mm |
| 8 | Castor | Yes | Yes | Yes |
| 9 | Discharge mode | Manual/ Electric | Manual/ Electric | Manual/ Electric |
Stainless steel mixing tank with wheels
