Plastic Film Blowing and Offset Press Machaine Unit
Cixi Ciliang Electronic Co., Ltd.Base Info
Description
Basic Info.
Model NO. SJ-45-YT-2600 SJ-55-YT-2800 SJ-60-YT-21000 Machine Weight 4T Certification CE Transport Package in Standard Wooden Box Specification CE certificate Trademark Elight Origin China(Zhejiang) HS Code 8477309000 Production Capacity 5sets/MonthProduct Description
It is applied to blowing plastic films like low density polytene(LDPE), high density polytene(HDPE) and linear low density polytene(LLDPE), etc. It is widely applied to packing foodstuff, clothing, rubbish bags, vest ones, etc. In the civil and industries sectors.The unit integrated film-bolwing & printing designed by us can save labor force, workshop rooms, and improve the quality of products and economic results.

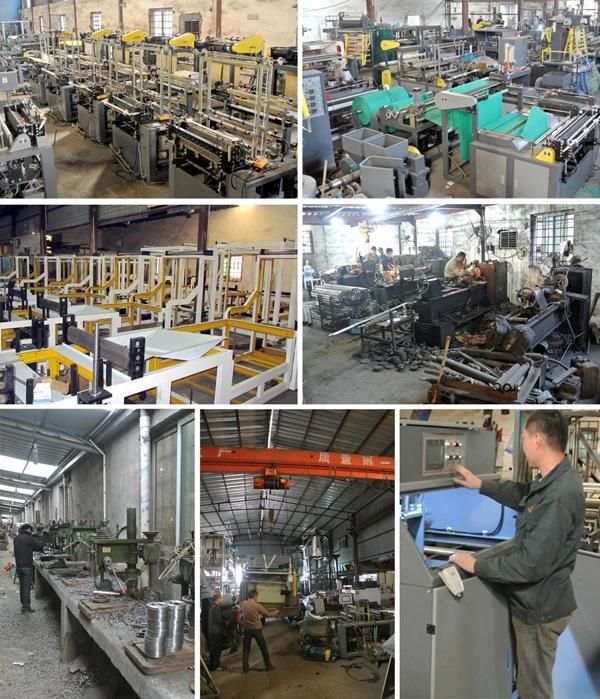

Workshop:
Certificates:
Our office:
| Model | SJ-45-YT2600 | SJ-55-YT2800 | SJ-60-YT21000 |
| Applied Materials | LDPE/HDPE/LLDPE | LDPE/HDPE/LLDPE | LDPE/HDPE/LLDPE |
| Screw Diameter | 45mm | 55mm | 60mm |
| Screw L/D Ratio | L/D28:1 | L/D28:1 | L/D28:1 |
| Blow Film Motor Power | 11Kw | 15Kw | 18.5Kw |
| Max Extruded Quantity | 36kg/h | 50kg/h | 70kg/h |
| Film Head DIA. | Φ60Φ80 | Φ80Φ130 | Φ80Φ160 |
| Blow Film Width | 600mm | 800mm | 1000mm |
| Blow Film Thickness | 0.008-0.10mm | 0.008-0.10mm | 0.008-0.10mm |
| Length Range of Printing | 191-1200mm | 191-1200mm | 191-1200mm |
| Printing width | 560mm | 760mm | 960mm |
| Total Power | 28KW | 32KW | 40KW |
| Weight of Machine | 3800kg | 4200kg | 5000kg |
| Overall Dimension(L×W×H) | 6000×2400×4000mm | 6200×2600×4300mm | 6400×2800×4800mm |
